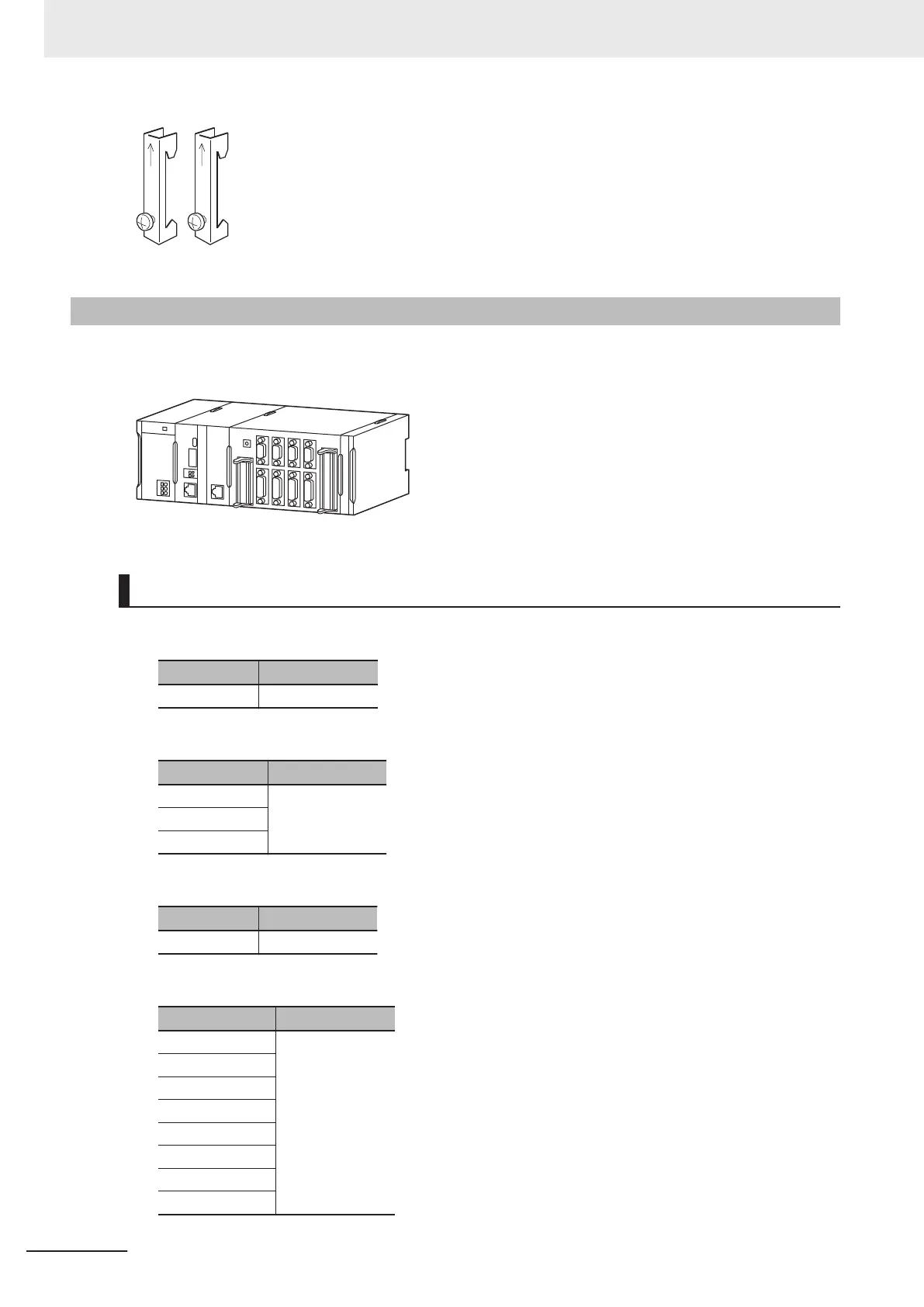

4-3-5
Assembled Appearance and Dimensions
The figure below shows the CK3M-series Units connected to each other
. An End Cover is connected
to the right end.
Dimensions
Power Supply Unit
Model
Unit width (mm)
CK3W-PD048
45
CPU Unit
Model
Unit width (mm)
CK3M-CPU101
63.2
CK3M-CPU1
1
1
CK3M-CPU121
End Cover
Model
Unit width (mm)
CK3W-TER1
1
15.6
Axis Interface Unit
Model
Unit width (mm)
CK3W-AX1313N
130
CK3W-AX1414N
CK3W-AX1515N
CK3W-AX2323N
CK3W-AX1313P
CK3W-AX1414P
CK3W-AX1515P
CK3W-AX2323P
4 Installation
4-14
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
