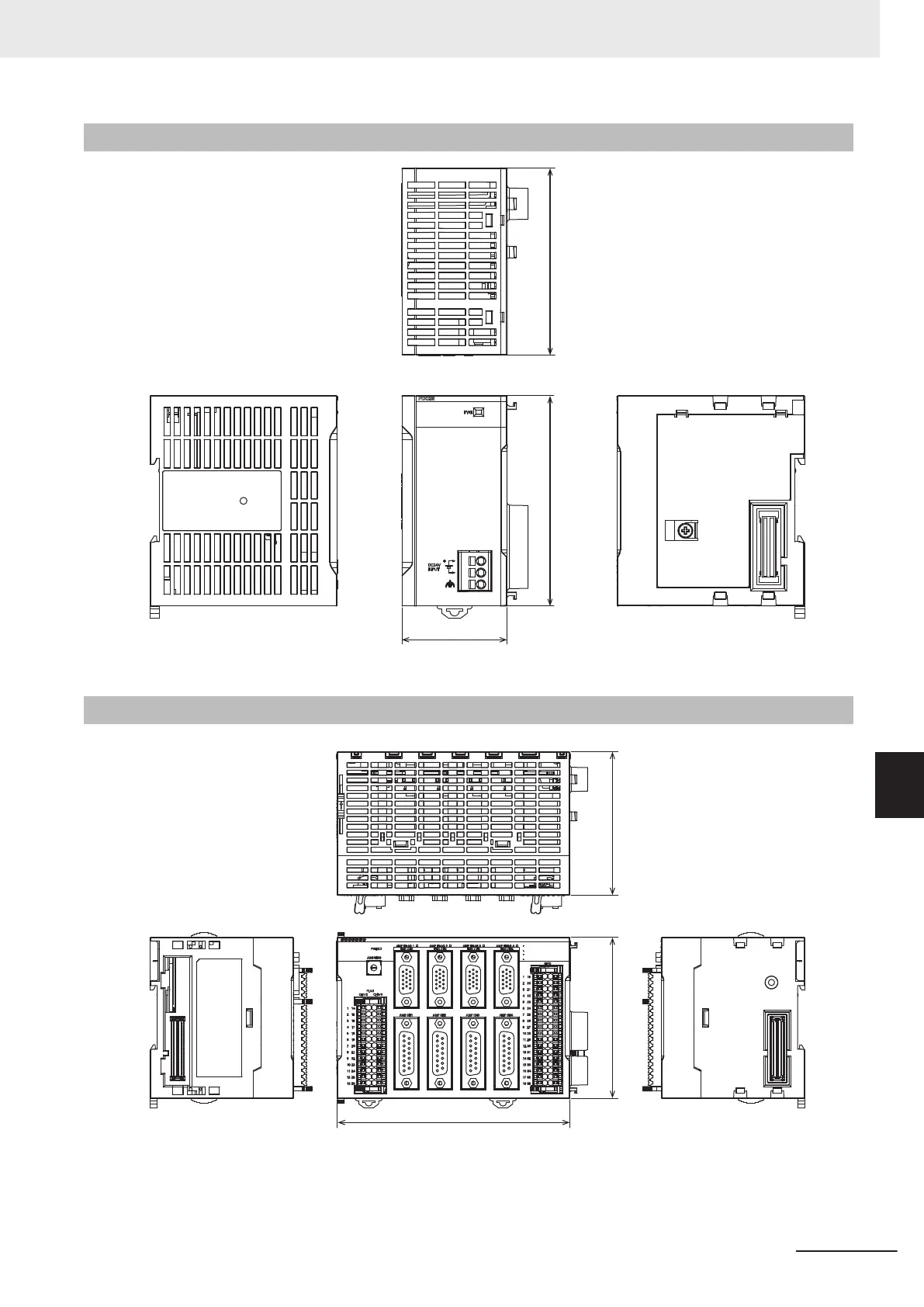

A-2-2
Power Supply Unit
80
90
45
A-2-3
Axis Interface Unit
80
90
130
IN
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
OUT
Appendices
A-5
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
A-2 Dimensions
A
A-2-2 Power Supply Unit
246
248
