Omron CK3W-AX1515N User Manual

Item
Specification (CK3W-)
AX1313N AX1313P AX2323N AX2323P
General dig-
ital I/O
Number of
points
16 inputs, 16 outputs
Internal com-
mon
NPN PNP NPN PNP
Power consumption 5 VDC: 3.4 W max.
24 VDC: 12.5 W max.
5 VDC: 3.0 W max.
24 VDC: 13.1 W max.
Dimensions (height × depth
× width)
90(H)/80(D)/130(W)
Weight 480 g max. 490 g max.
3-3-2

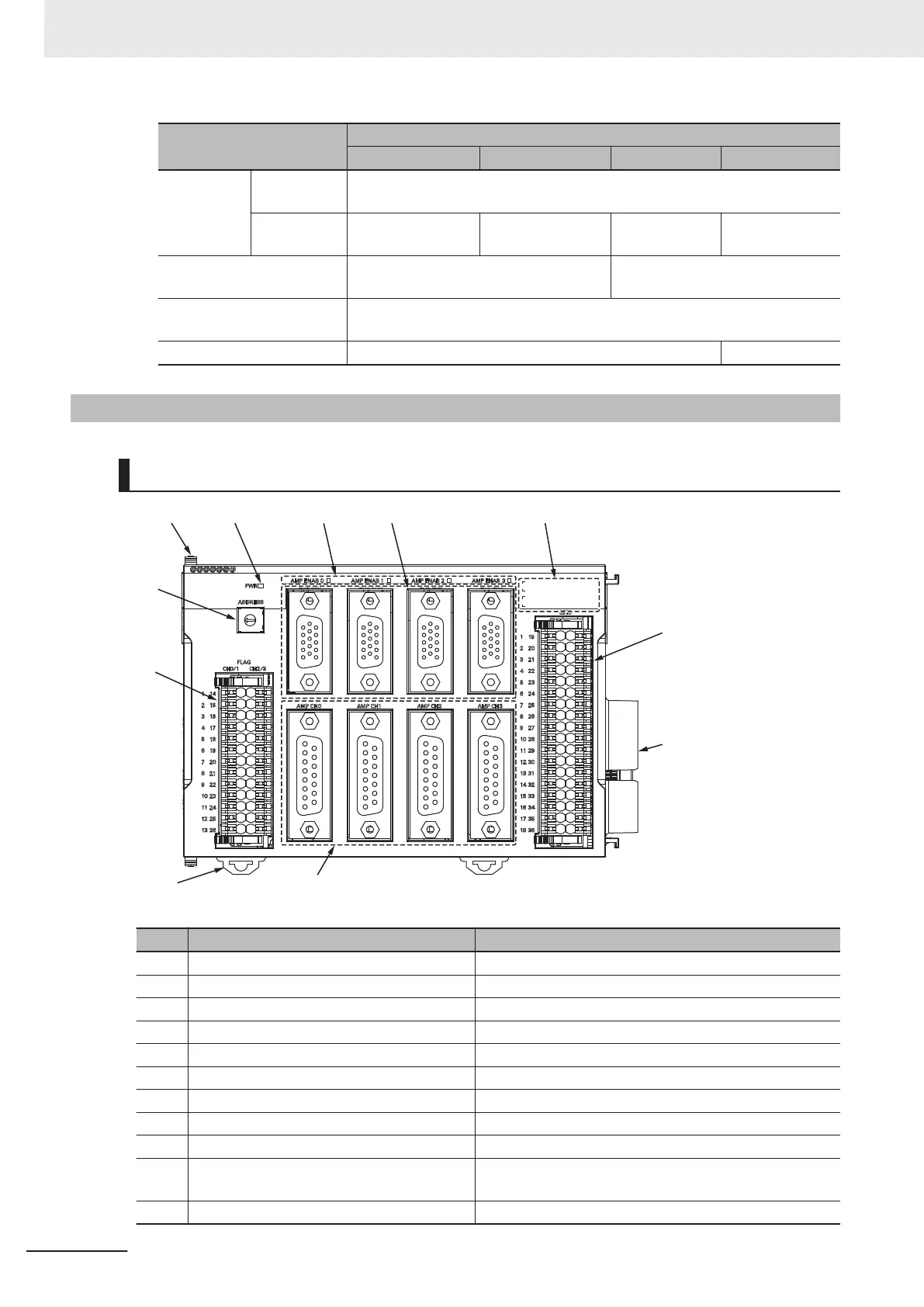

Part Names and Functions
CK3W-AX1414£/-AX1515£
(F)
(G)
(H)(I)
(J)
(K)
(A) (B) (C) (D) (E)
IN
0
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15
0 1 2 3 4 5 6 7
8 9 10 11 12 13 14 15
OUT
Letter Name Function
A Slider Holds the Units together.
B Power supply status indicator Shows the power supply status.
C Amp enable status indicator Shows the Amp enable status.
D Encoder connector Connects the encoder.
E General digital input/output status indicator Shows the general digital input/output status.
F General digital I/O connection terminal block Connects the general digital input/output.
G Unit connector Connector that connects to the Unit.
H Amplifier connector Connects the amplifier.
I DIN Track mounting hook Used to mount the Unit to a DIN Track.
J Flag connection terminal block Connects the HOME/PLIM/NLIM/USER inputs and EQU
output.
K Address switch Sets the Gate3 Index.
3 Configuration Units
3-14
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
