9.2 Pulse width trigger mode
In this trigger mode with positive polarity, the expose starts at rising edge of trigger signal and stops at falling
edge of trigger signal. The expose period is high states of trigger signal.
In this trigger mode with negative polarity, the expose starts at falling edge of trigger signal and stops at rising
edge of trigger signal. The expose period is low states of trigger signal.
When selecting “FrameStart” at TiggerSelector, exposure time of each line is same for one frame (lines of height
setting)

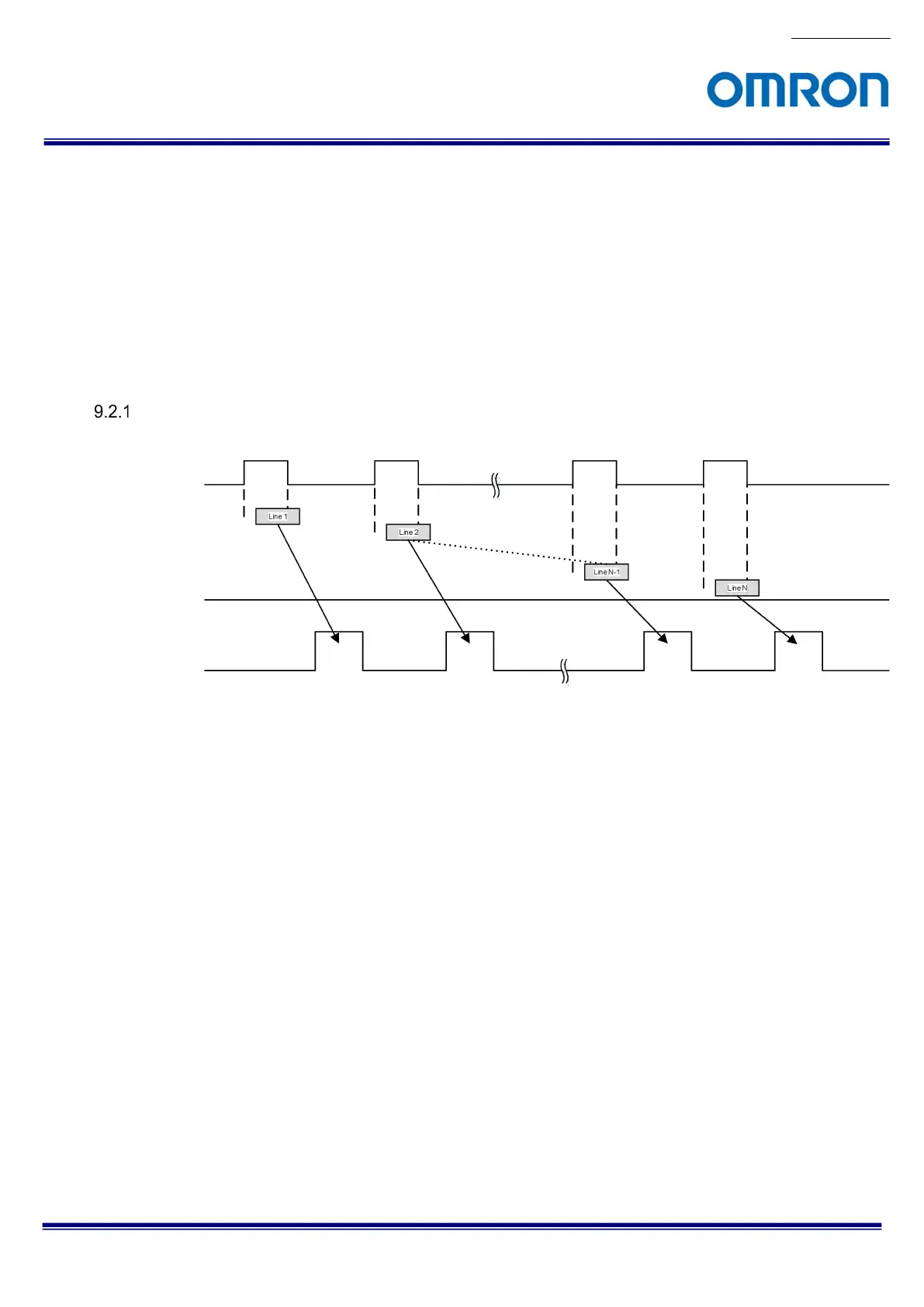

Timing of pulse width trigger mode
Expose
Image out
Line 1
Line 2
Line N-1
Line N
Trigger signal
(Positive polarity)
