Omron FS-C2KU7DGES-C User Manual

No.20S046-00
28/62
FS-C4KU7DGES-F / FS-C4KU7DGES-M42 / FS-C2KU7DGES-F / FS-C2KU7DGES-M42 / FS-C2KU7DGES-C
Product Specifications and Use’s Guide
9.3 Edge preset trigger mode
In this trigger mode with positive polarity, the expose starts at rising edge of trigger signal.
The exposure duration time is based on preset exposure setting stored by camera setting communication.
In this trigger mode with negative polarity, the expose starts at falling edge of trigger signal.
The exposure duration time is based on preset exposure setting stored by camera setting communication.
When selecting “FrameStart” at TiggerSelector, exposure time of each line is same for one frame (lines of height
setting)

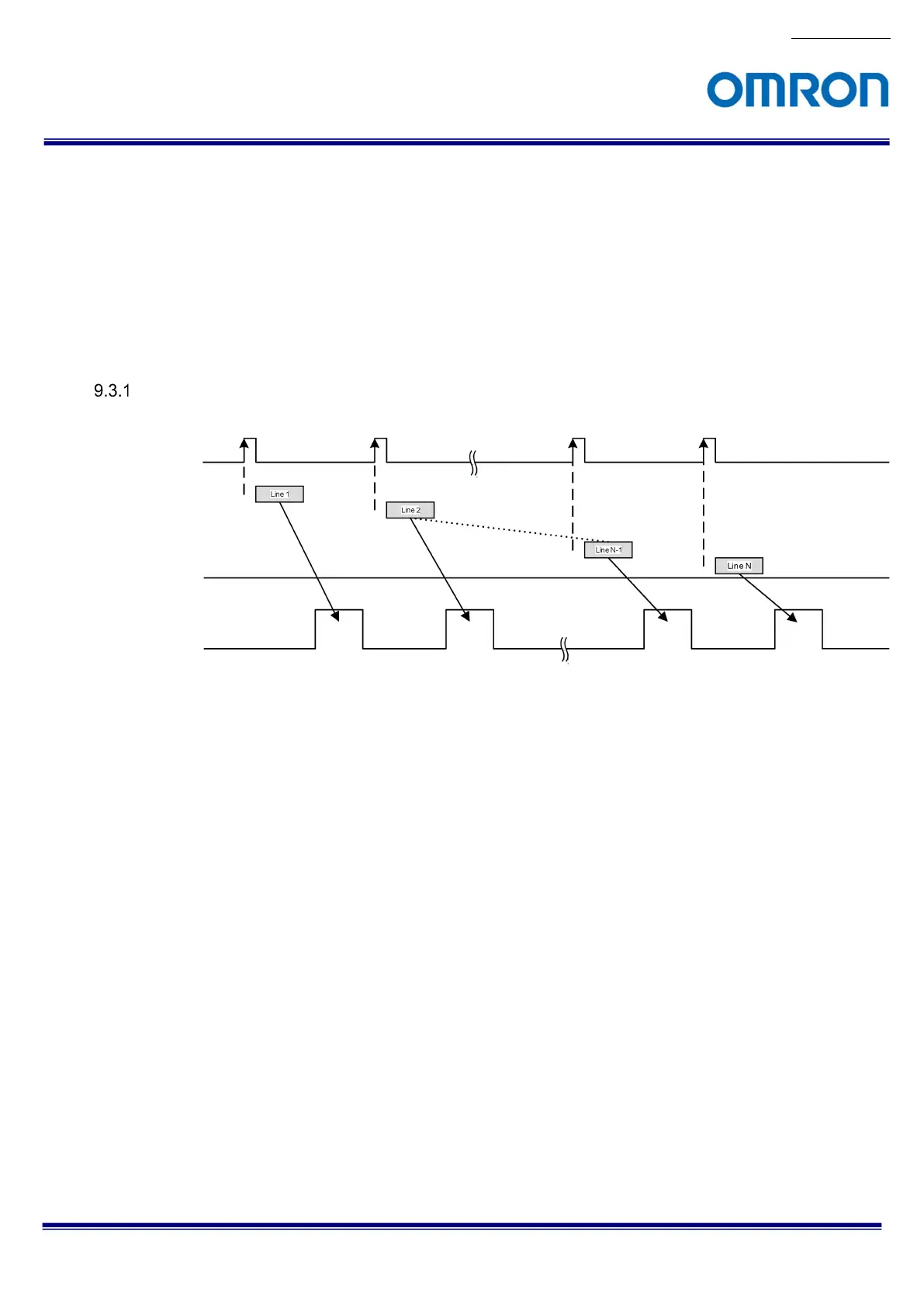

Timing of edge preset trigger mode
Expose
Image out
Line 1
Line 2
Line N-1
Line N
Trigger signal
(Positive polarity)
