Omron FS-C2KU7DGES-C User Manual

No.20S046-00
37/62
FS-C4KU7DGES-F / FS-C4KU7DGES-M42 / FS-C2KU7DGES-F / FS-C2KU7DGES-M42 / FS-C2KU7DGES-C
Product Specifications and Use’s Guide
10.9 Trigger
The trigger type (trigger source) is selectable at “TriggerSource” under “AcquisitionControl”.
The trigger type (trigger source) is listed in below table.
Software Software trigger generates by “TriggerSoftware”
Line 0 Hardware trigger through “Line0”
Line 1 Hardware trigger through “Line1”
Line 2 Hardware trigger through “Line2”
Software Signal 0 Software trigger generates by “SoftwareSignalControl”
Software Signal 1 Software trigger generates by “SoftwareSignalControl”
Action 0 Action command trigger
Logic Block 0 Trigger generates by “LogicBlockControl”
Please refers “Trigger signal processing procedure” for more details
Encoder0 Trigger generated by “EncoderControl”
Disabled Disabling trigger signal

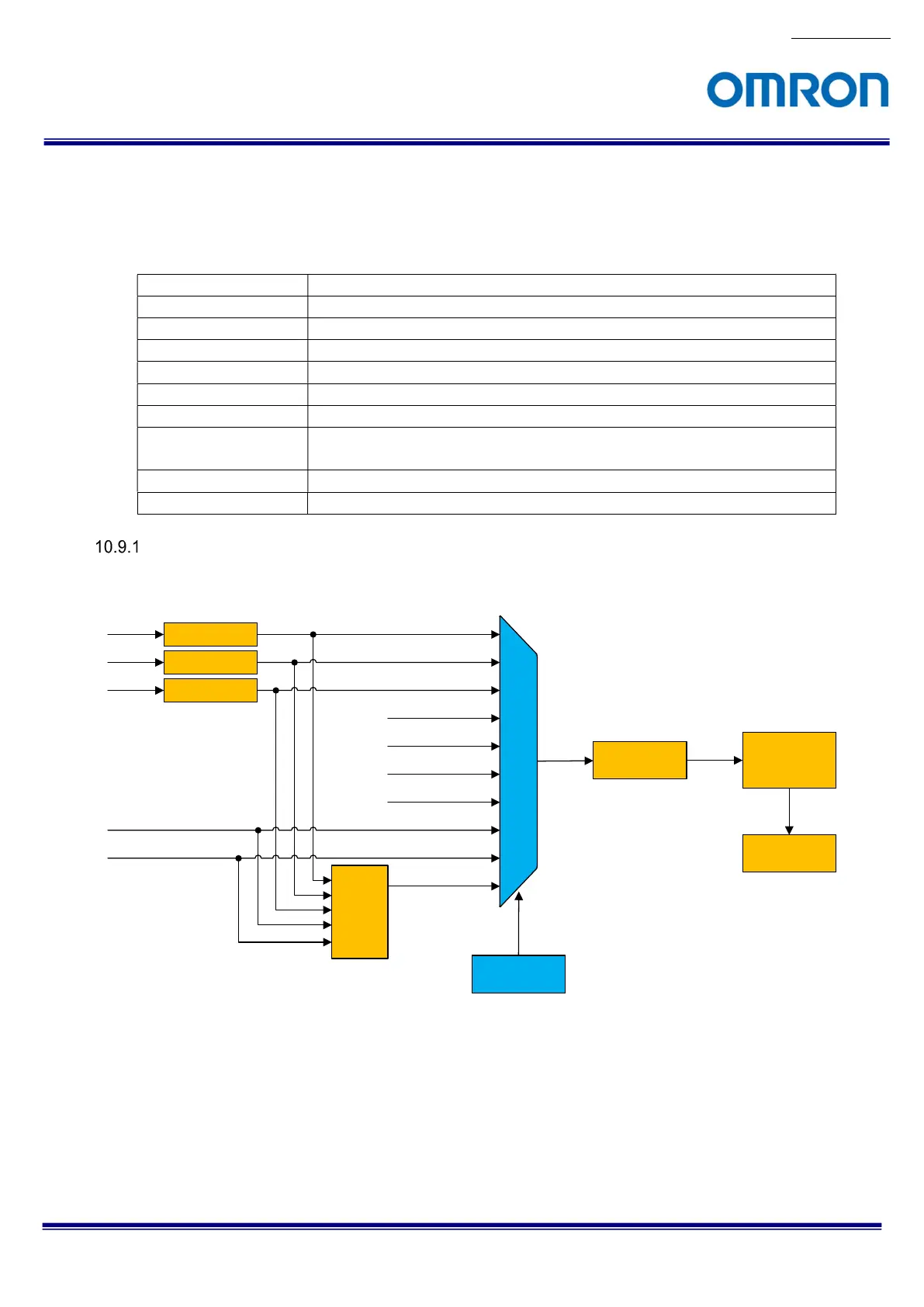

Trigger signal processing procedure
The camera internal process for external hardware trigger signal or software trigger signal input is below:
Line 0
Line 2
Debounce
Debounce
AND
又は
OR
Line 2
Action 0
Line 0
Software
Software Signal 0
Software Signal 1
Logic Block 0
Trigger Source
Trigger Delay
Camera
Timing
Generator
Sensor
Debounce
Line 1 Line 1
Encoder 0
Disabled
The trigger signal is selectable by GenICam commands.
TriggerSource: select trigger type
