9.8 Dimensions
Feature Specification
Magnetic Tape
Width 25 mm
Orientation South up
Markers (Magnetic Tape)
Width 25 mm
Length 300 mm min. for 500 mm/sec drive speed
Orientation North up
Separation from tape 20 - 30 mm
Connections
Front sensor RS232-1 (/dev/ttyUSB9) on the core
Rear sensor RS232-2 (/dev/ttyUSB10) on the core
Power, both sensors Aux Power, using the included splitter cable
9.8 Dimensions
A
B

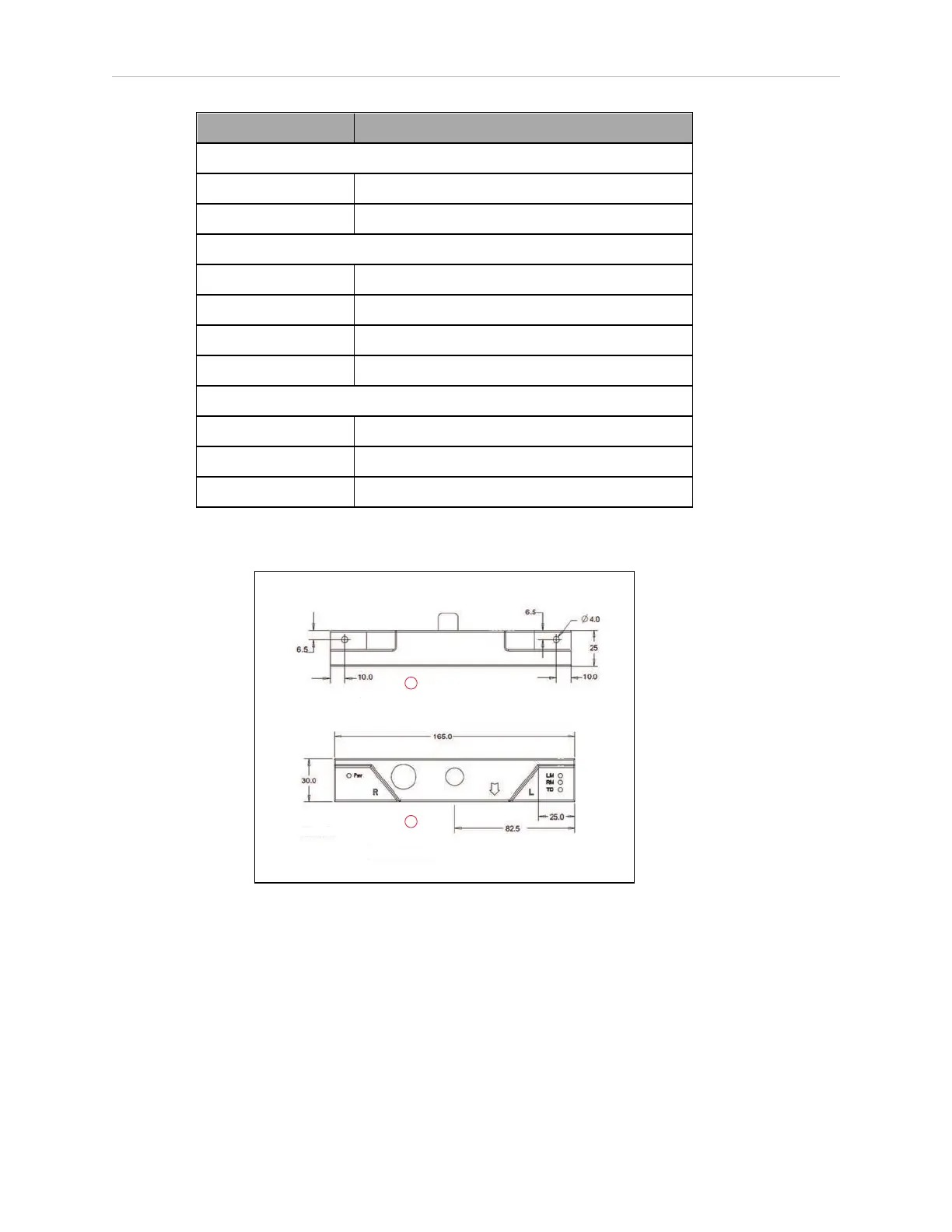

Figure 9-21 Overall Dimensions of the Sensor, (A) Top View and Dimensions, and (B) Front View and
Dimensions (units are mm)
