Chapter 4: Touchscreen

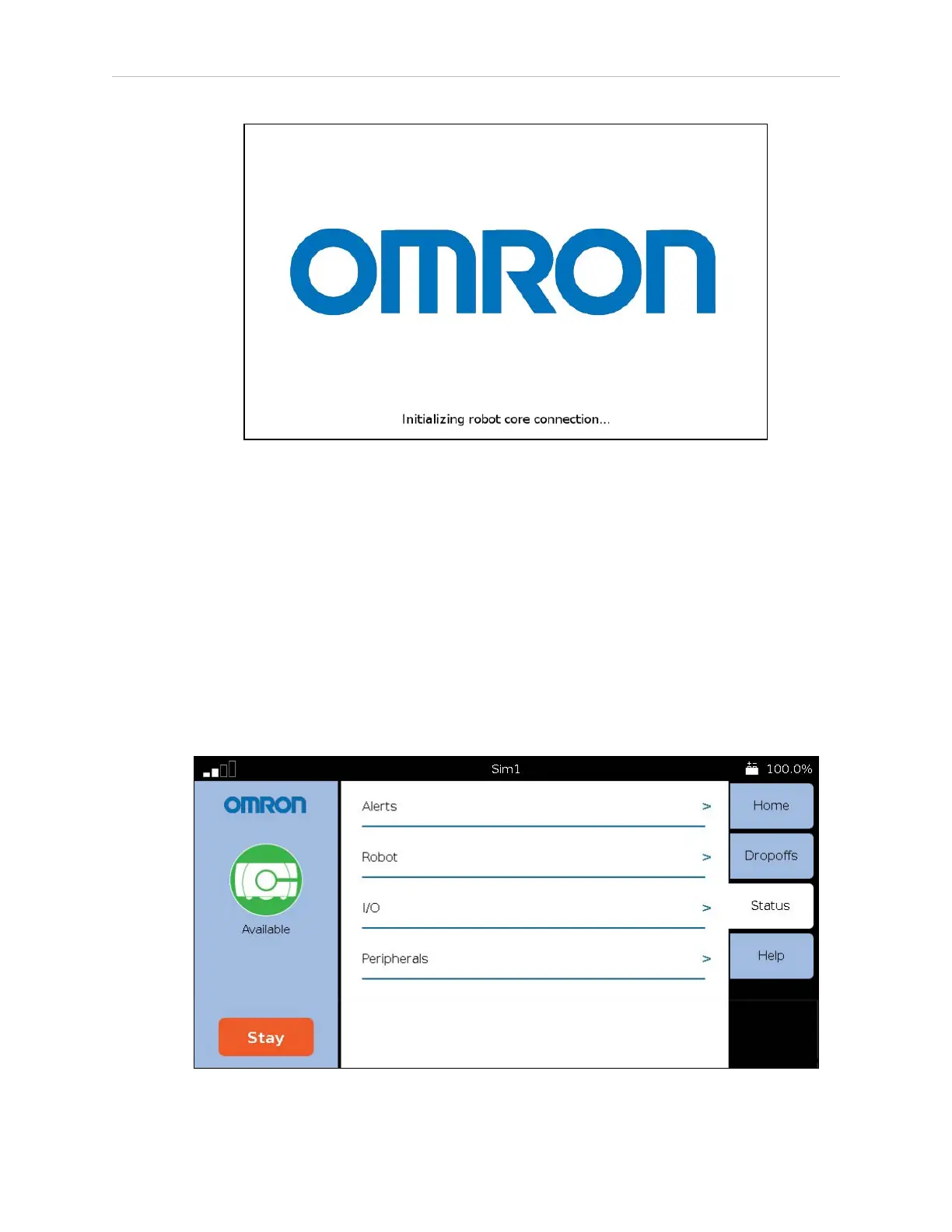

Figure 4-10 Screen Initialization Status Display
After initialization, either the Choose Dropoff or Patrol Route screen will be displayed.
Screen Top Bar
The top of the screen shows basic AMR information. This includes a bar graph indicating the
WiFi signal strength, the name of the AMR, and the battery state of charge. If the AMR is con-
nected to an EM, it will also be specified here.
Left Screen Pane
The screen logo is displayed in the upper part of the left pane. This doesn’t change, regardless
of the mode you are in.
Below the screen logo, the AMR status is displayed, first graphically, and below that, in text.
Figure 4-11 Screenshot Showing Top Bar and Left, Right, and Center Panes
