Omron LD-60 User Guide

Chapter 6: Acuity Localization
6.2 Components
l
Camera Assembly
o
Camera
o
Three M3 x 4 screws
o
Bracket
o
Base
o
Four M4 x 12 screws
o
Tube
o
Neutral Density
(ND)filter, 55 mm
o
Foam dust seal
l
Cables
o
Ethernet cable
o
Power cable (Hirose
to 2x3 Mini-Fit Jr.™)
o
Power splitter cable
l
Software
l
Digital Level
l
Fast Ethernet switch
(optional, user-supplied)
Only needed if the
Auxiliary Ethernet port on
the platform is being used by
another peripheral.
A
B
C
D
E
F
J
H
G
Direction of Travel
Omron Adept Technologies, Inc.
4550 Norris Canyon Road 150
San Ramon, CA 94583
Model: Acuity
P/N: 13700-000

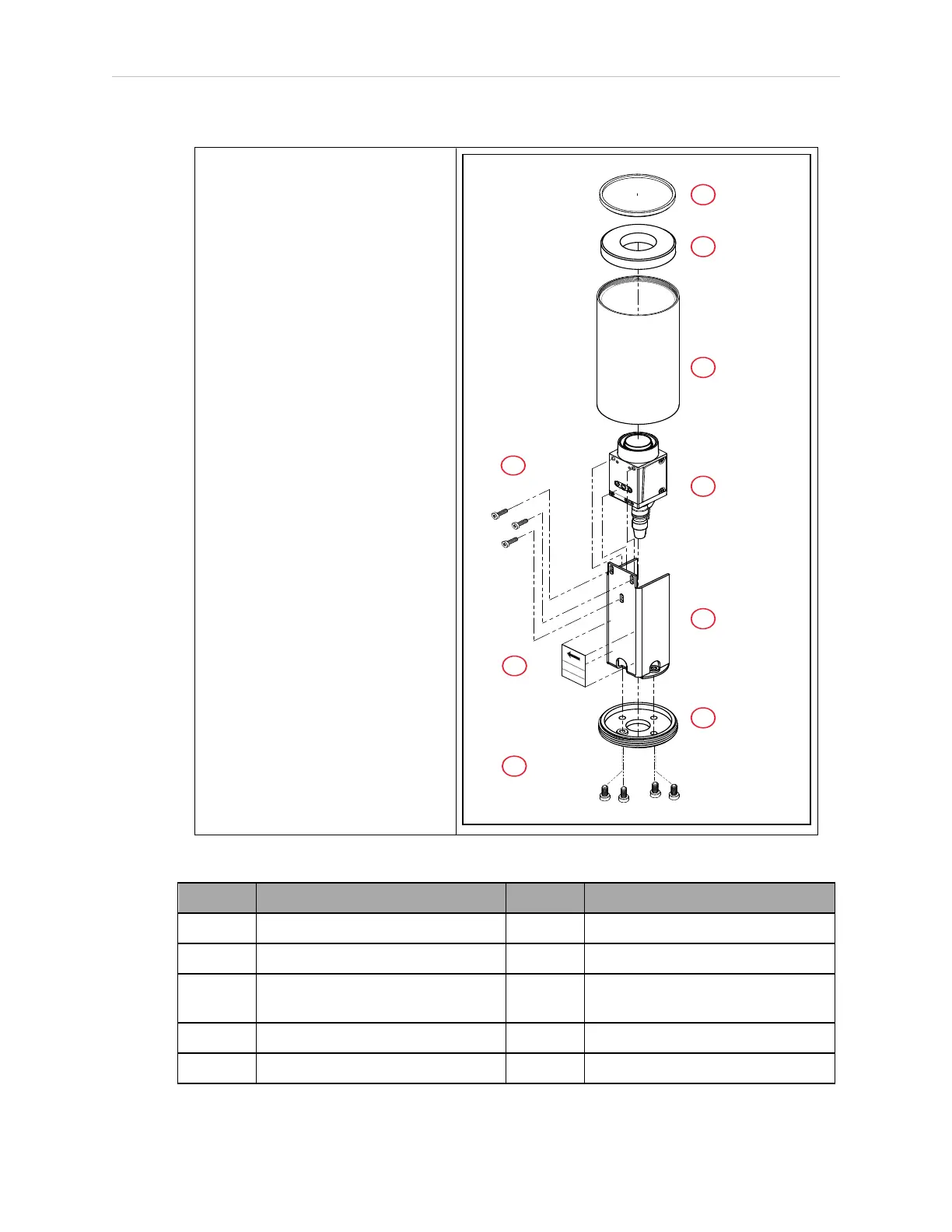

Figure 6-2 Acuity Camera Components
Callout Description Callout Description
A Neutral-Density Filter F Bracket
B Foam Dust Seal G Direction of Travel label
C Tube H M4 x 12 screws go up through
base
D Camera J Base
E Camera mounting screws
13732-000 Rev J LDPlatform Peripherals Guide 91
