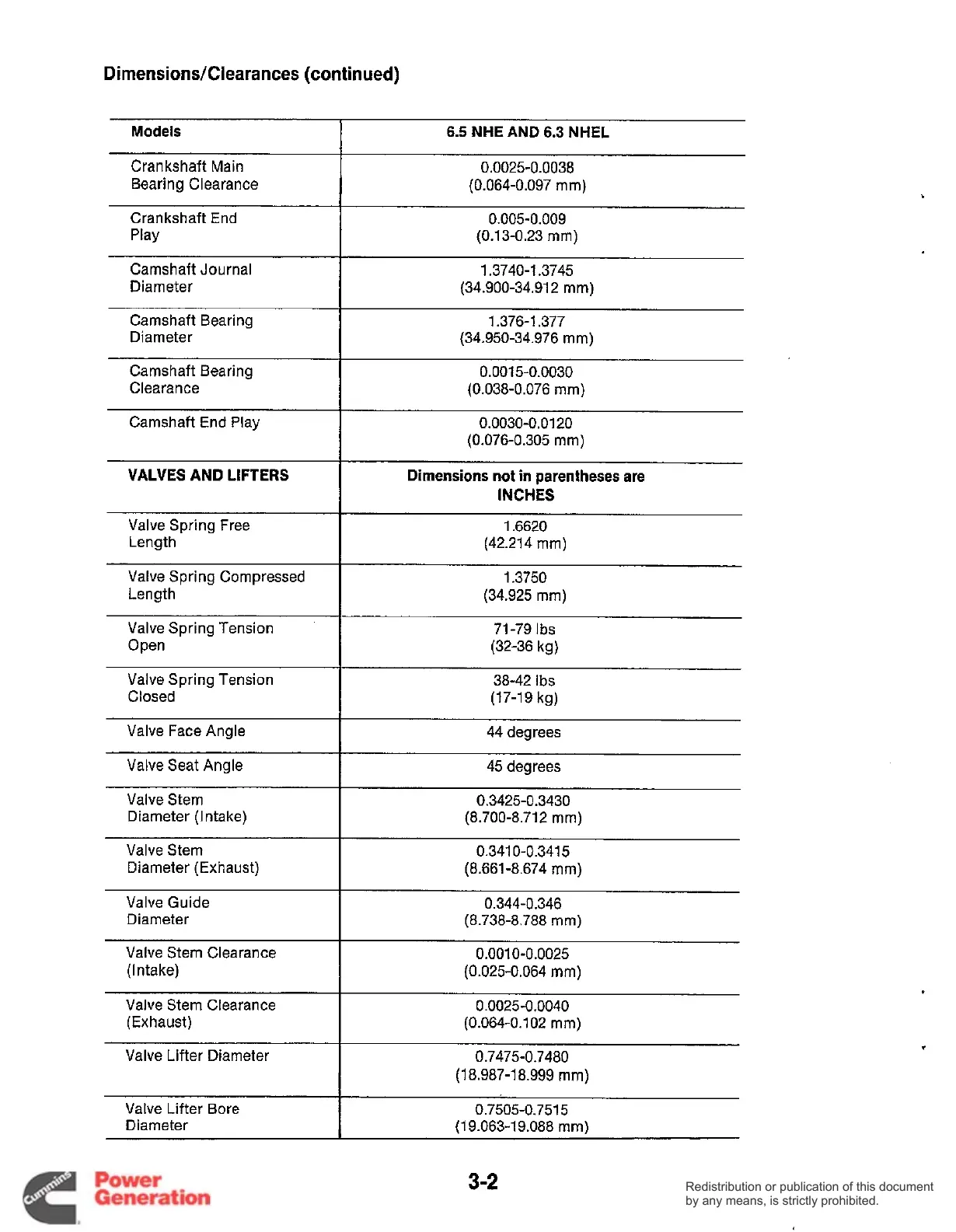

DimensionsKlearances (continued)
Models
Crankshaft Main
Bearing Clearance
Play
Crankshaft End
Cams haft Journal
Diameter
6.5 NHEAND 6.3 NHEL
0.0025-0.0038
(0.064-0.097
mm)
(0.13-0.23 mm)
(34.900-34.912 mm)
0.005-0.009
1.3740-1.3745
Camshaft Bearing
Diameter
Camshaft Bearing
Clearance
Camshaft End Play
1.376-1.377
(34.950-34.976
mm)
0.001 5-0.0030
(0.038-0.076
mrn)
0.0030-0.01 20
(0.076-0.305
mrn)
VALVES AND LIFTERS
Valve Spring Free
Length
Dimensions not in parentheses are
INCHES
1.6620
(42.214 mm)
Valve Spring Compressed
Length
Valve Spring Tension
Open
1.3750
(34.925 mm)
71-79
Ibs
(32-36 kg)
Valve Spring Tension
Closed
38-42 Ibs
(1 7-1 9 kg)
Valve Face Angle
Valve Seat Angle
Valve Stem
Diameter (Intake)
44 degrees
45 degrees
0.3425-0.3430
(8.700-8.712 mm)
Valve Stem
Diameter (Exhaust)
0.341 0-0.341
5
(8.661 -8.674 m m)
Valve Lifter Diameter
Valve Guide
Diameter
Valve Stem Clearance
(Intake)
0.7475-0.7480
(1 8.987-1 8.999 mm)
0.344-0.346
(8.738-8.788
mm)
(0.025-0.064 mm)
0.001 0-0.0025
Valve Stem Clearance
(Exhaust)
0.0025-0.0040
(0.064-0.102 mm)
Valve Lifter Bore
Diameter
0.7505-0.7515
(19.063-19.088 mm)
