WASHER
METAL
SPRING
SPRING
WASHFR
\
RETAINER
&
1
I16 INCH
WASHER
1
!,URN
SPRING
COVER
RETURN
SPRING
\
MOUNTING
EMCKET
I
~
/--

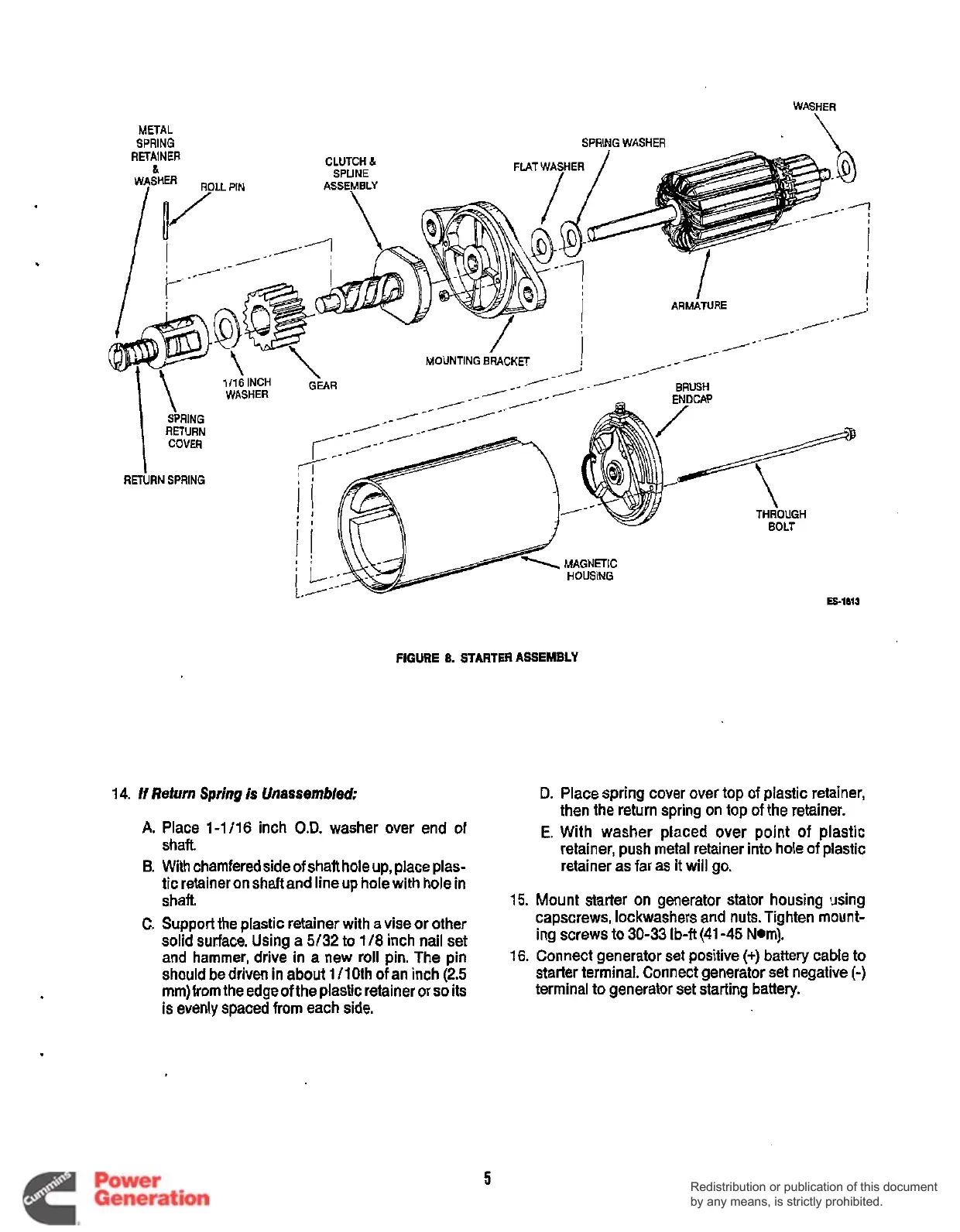

FIGURE
8.
STARTER ASSEMBLY
14.
H
Refurn
Spring
is
Unassembled:
A.
Place 1-1/16 inch
O.D.
washer over end
of
shaft
B.
With chamfered side of shaft hole up, place plas-
tic retainer on shaft and line up hole with hole in
shaft.
C. Support the plastic retainer with a vise or other
solid surface. Using a
5/32
to
1
/8
inch nail set
and hammer, drive in a new roll pin. The pin
should be driven in about
1
/loth of an inch
(2.5
mm) from the edge of the plastic retainer or
so
its
is
evenly spaced from each side.
D.
Place spring cover over top of plastic retainer,
then the return spring on top of the retainer.
E.
With washer placed over point of plastic
retainer, push metal retainer into hole of plastic
retainer
as
far as it will go.
15. Mount starter on generator stator housing using
capscrews, lockwashers and nuts. Tighten mount-
ing screws to
30-33
Ib-ft (41
-45
Nom).
16.
Connect generator set positive
(+)
battery cable to
starter terminal. Connect generator set negative
(-)
terminal to generator set starting battery.
5
