⚫ To Turn On/Off Output of Channels
Push or to turn on/off output of the corresponding channel. The indicator
will be lighted when the corresponding channel is tuned on.

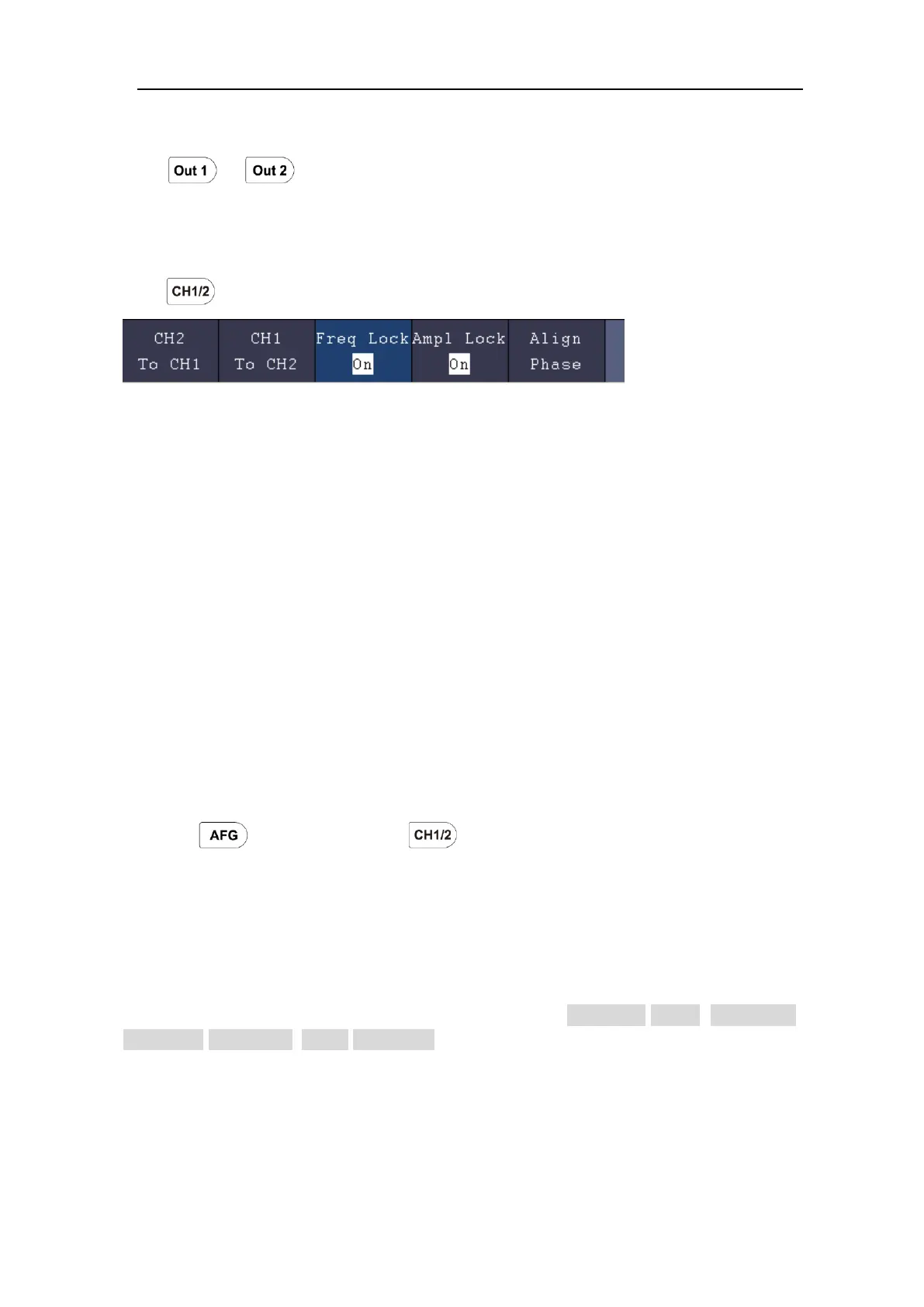

⚫ Channel Copy menu
Push button to switch to Channel Copy menu.
Copy Channel
Select CH2 To CH1 in the bottom menu to copy parameters of CH2 to CH1.
Select CH1 To CH2 in the bottom menu to copy parameters of CH1 to CH2.
Frequency Lock
Select Freq Lock in the bottom menu as On, the frequency of the two channels can be
adjusted synchronously.
Amplitude Lock
Select Ampl Lock in the bottom menu as On, the amplitude of the two channels can be
adjusted synchronously.
Align Phase
Select Align Phase in the bottom menu to align the initial phase of two channel signals.
To Set Signals
(1) Push (single-channel) or (dual-channel) button to show the bottom
menu of generator.
(2) Select the desired waveform in the bottom menu, the corresponding menu is displayed
on the right.
(3) The parameters can be set in the right menu.
To Output Sine Signals
The parameters of Sine waveform in the right menu are: Frequency/Period, Start Phase,
Amplitude/High Level, Offset/Low Level.
To Set the Frequency
Select Frequency in the right menu (if Frequency is not displayed, select Period and
push it again to switch to Frequency). Set the parameter in the right menu, see below.
Three methods to change the chosen parameter:
