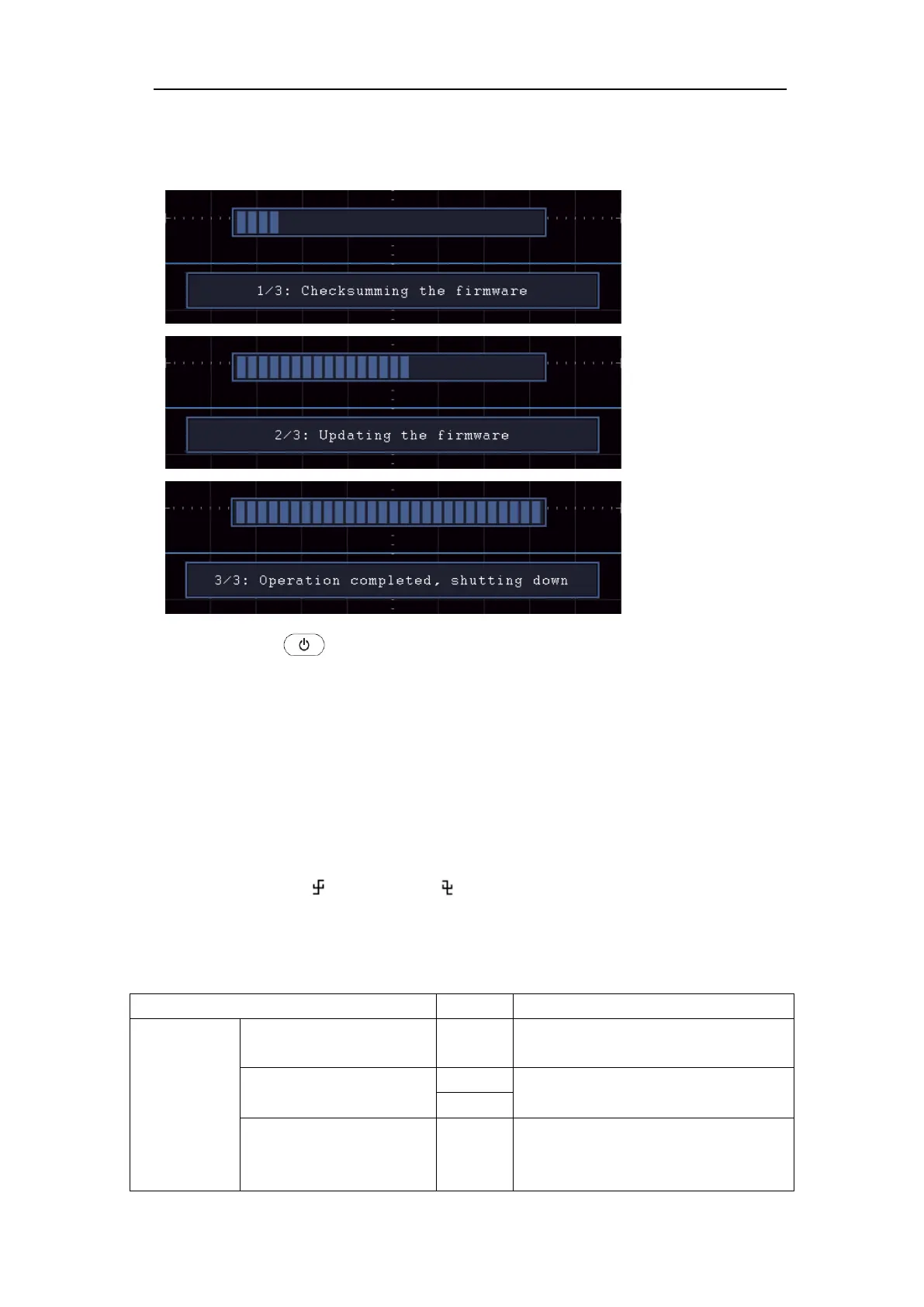

7. In the bottom menu, select Start again, the interfaces below will be displayed in
sequence. The update process will take up to three minutes. After completion, the
instrument will be shut down automatically.
8. Long press the button to power on the instrument.
How to Measure Automatically
Push the Measure button to display the menu for the settings of the Automatic
Measurements. At most 8 types of measurements could be displayed on the bottom
left of the screen.
The oscilloscopes provide 38 parameters for auto measurement, including Period,
Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot,
Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty
Cycle, Delay A→B , Delay A→B
,
Cycle RMS, Cursor RMS, Screen Duty,
FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF,Phase, +PulseCount, -PulseCount,
RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area.
The "Automatic Measurements" menu is described as the following table:
Function Menu
Setting
Description
Add
Meas Type
(left menu)
Select the measure types
Source
CH1
Select the source
CH2
Add
Add the selected measure types
(shown at the left bottom, you
could only add 8 types at most)
