◼ Reference or digital wave form
◼ Cursor
◼ Trigger control
◼ FFT
Operation steps:
1. Push the Display button.
2. Select XY Mode in the bottom menu. Select Enable as ON in the right menu.
3. To make the XY view full screen, select Full Screen as ON in the right menu.

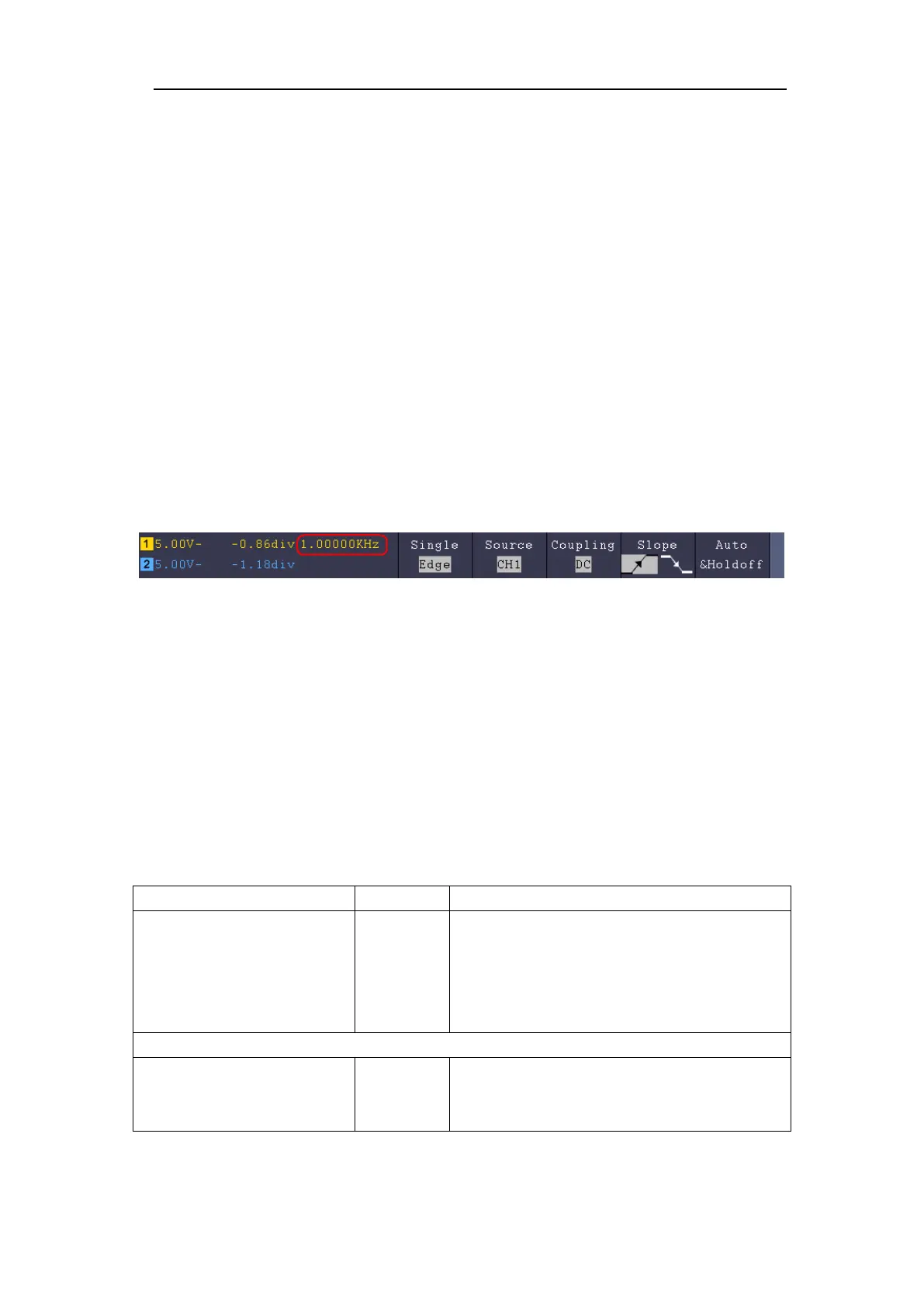

Counter
It is a 6-digit single-channel counter. The counter can only measure the frequency of
the triggering channel. The frequency range is from 2Hz to the full bandwidth. Only if
the measured channel is in Edge mode of Single trigger type, the counter can be
enabled. The counter is displayed at the bottom of the screen.
Operation steps:
1. Push Trigger Menu button, set the trigger type to Single, set the trigger mode to
Edge, select the signal source.
2. Push the Display button.
3. Select Counter as ON or OFF in the bottom menu.
How to Save and Recall a Waveform
Push the Save button, you can save the waveforms, configures, screen images, record
or clone the waveform.
The description of the Save Function Menu is shown as the following table:
Choose the saving type.
About the Record type, see "How to
Record/Playback Waveforms" on P72.
About the Clone type, see “How to Clone
and Recall a waveform” on P76.
For internal storage, only BIN can be
selected. For external storage, the format
can be BIN, TXT or CSV.
To Next Page
