Owon XDS3204E User Manual

3.Junior User Guidebook
23

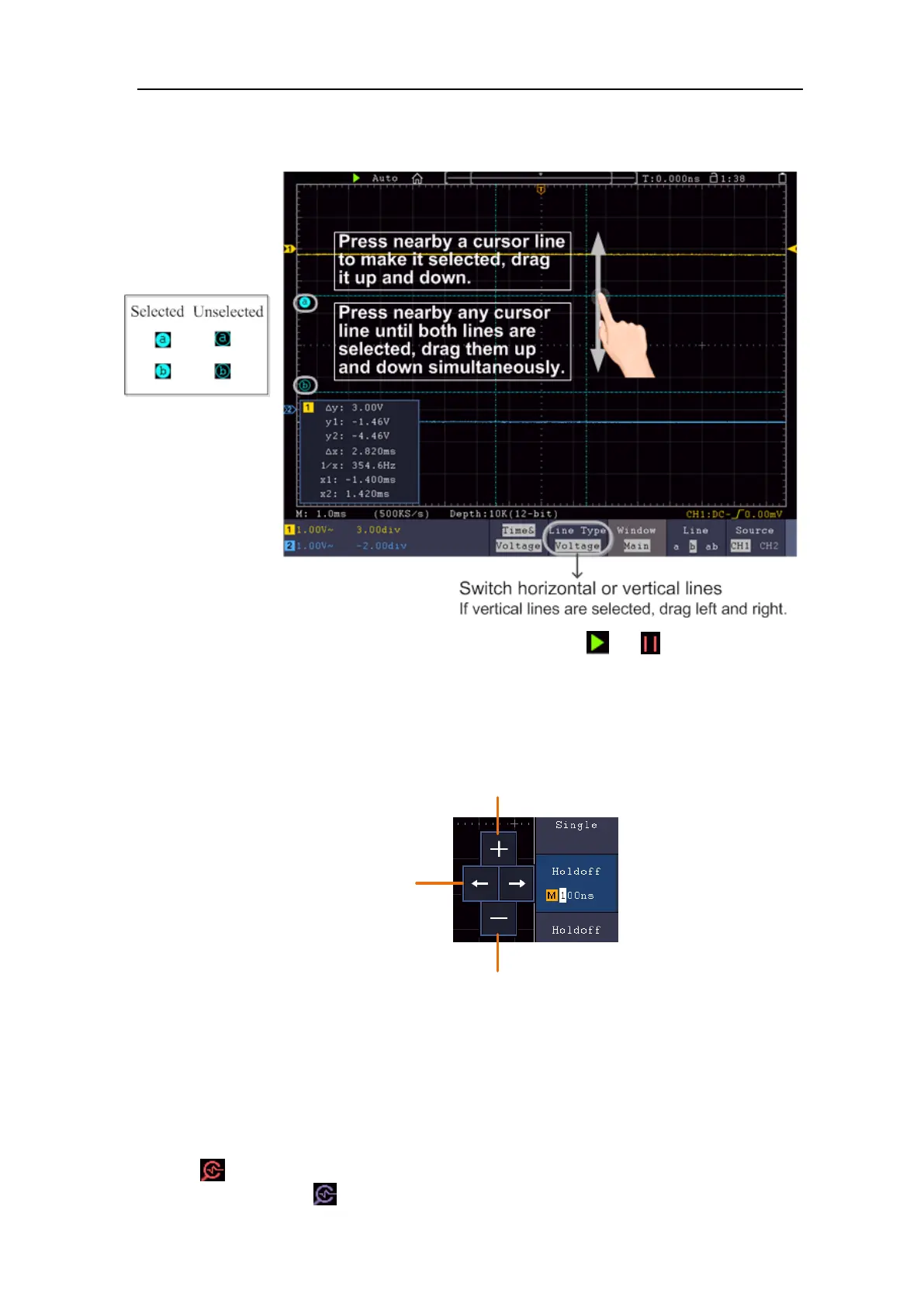

Other Operations Using Touchscreen
⚫ Measure with Cursors:
⚫ Run/Stop: Double tap on the display area, or click the or on the left top of
the display area to run or stop the waveform sampling.
⚫ Touch keyboard: Click to input.
⚫ Adjust value in the menu item: .
Click to increase the
value of cursor position
Move the cursor
Click to decrease the
value of cursor position
Magnifier Function (Only for XDS3102AP/XDS3202A with touchscreen)
The magnifier window can display the magnified wave of the wave selection, when the
magnifier function is enabled.
Click the icon on the left top of the display area, the magnifier window and menu
will be shown. Click the icon to turn off the magnifier function.
