Safety precautions02
10
En
Installation precautions
Observe the following precautions when installing with any items such
as the optional stand.
When using the optional stand, brackets, or equivalent items
• Ask your dealer to perform the installation.
• Be sure to use the supplied bolts.
• For details, see the instruction manual that comes with the
optional stand (or equivalent items).
When using other items
• Consult your dealer.

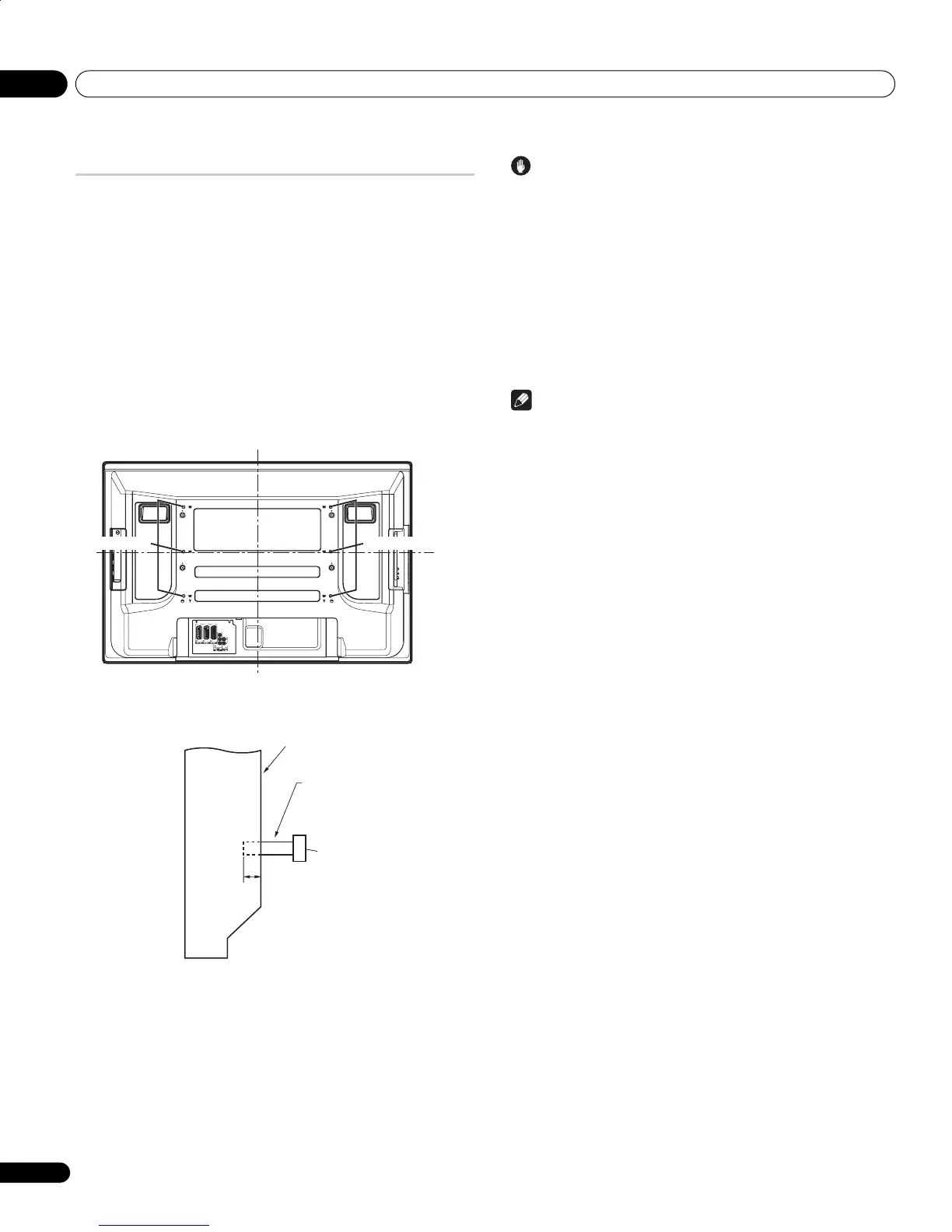

• The following six mounting holes can be used for the installation:
Rear view
Side view
Caution
• Be sure to use four or more mounting holes symmetrical to the
vertical and horizontal median lines.
• Use M8 screws, which go 12 to 18 mm in depth from the mounting
surface of the plasma television. See the side view above.
• Be careful not to block the ventilation opening at the rear of the
plasma television.
• Be sure to install the plasma television on a flat surface because it
contains glass.
• The screw holes other than the above are to be used only for the
specified products. Never use them for mounting non-specified
products.
Note
• It is strongly recommended to use the optional Pioneer mounting
products.
• Pioneer shall not be liable for any personal injury or product
damage that results from the use of mounting items other than the
optional Pioneer products.
Median
line
Median line
Mounting holes Mounting holes
Mounting surface
Plasma television
M8 screw
12 mm to 18 mm
Mounting bracket
(or equivalent)
PDP4270XD_En.book Page 10 Friday, June 16, 2006 5:32 PM
