Pioneer PDP-4270XD User Manual

Part names 04
13
En
English

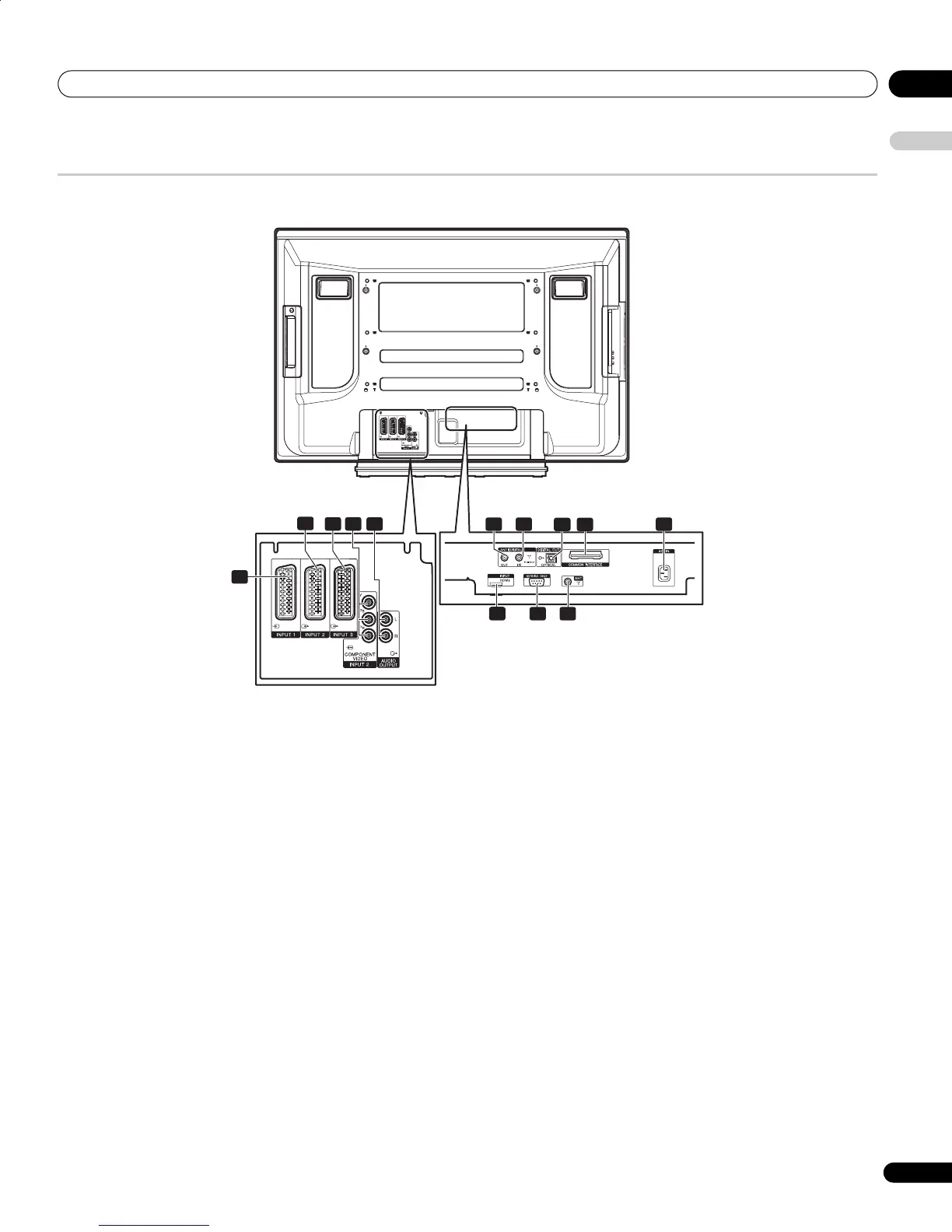

Plasma television (rear)
1 ANT OUT terminal (Antenna through out)
2 ANT IN terminal (Antenna in for DTV)
Power can be supplied through this
terminal.
3 DIGITAL OUT terminal (OPTICAL)
4 COMMON INTERFACE slot
For a CA module with smart card.
5 AC IN terminal
6 INPUT 3 terminal (HDMI)
7 RS-232C terminal (used for factory setup)
8 ANT (Antenna) input terminal
9 INPUT 1 terminal (SCART)
10 INPUT 2 terminal (SCART)
11 INPUT 3 terminal (SCART)
12 INPUT 2 terminal
(COMPONENT VIDEO: Y, P
B
, P
R
)
13 AUDIO OUTPUT terminals
3
1 2
3
7
6
8
9
10
11 12
13
4
5
Rear
PDP4270XD_En.book Page 13 Friday, June 16, 2006 5:32 PM

Pioneer PDP-4270XD Specifications

General

Depth	115 mm
Width	1040 mm
Height	679 mm
Weight	32100 g
Comb filter	3D
Pixel pitch	- mm
Aspect ratio	16:9
Product color	Black
Noise reduction	Yes
RMS rated power	13 W
Display diagonal	42 \
Channels quantity	99 channels
Display brightness	1100 cd/m²
Display resolution	1024 x 768 pixels
Display technology	Plasma
Power requirements	AC 220 - 240 V, 50/60 Hz
SCART ports quantity	3
Contrast ratio (typical)	3000:1
Analog signal format system	PAL, SECAM
Power consumption (standby)	0.7 W
Power consumption (typical)	291 W
