Pioneer PDP-4270XD User Manual

Using with other equipment 12
51
En
English

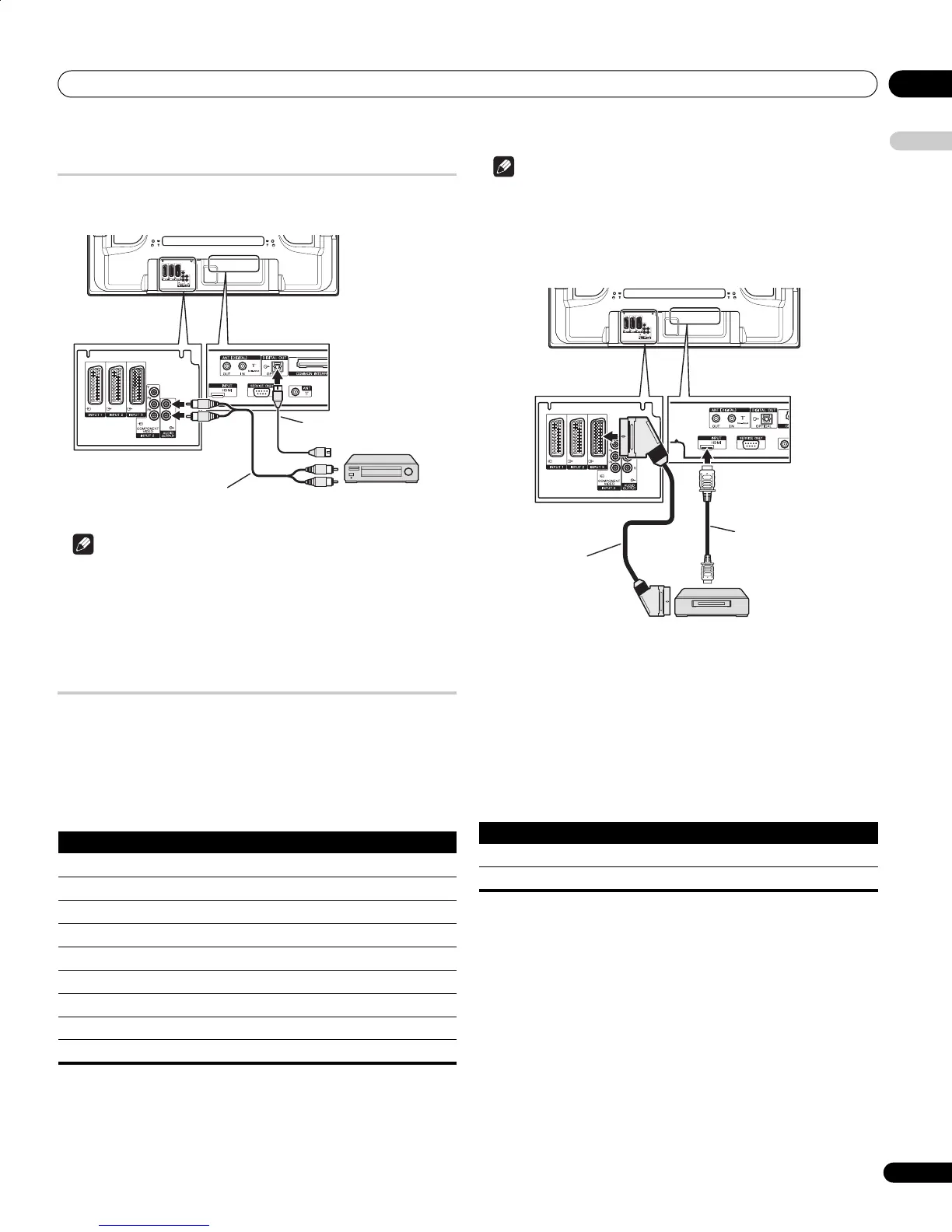

Connecting an amplifier/AV receiver
You can enjoy more powerful sound by connecting an amplifier or AV
receiver to the plasma television.
Note
• For details, refer to the operation manual for the audio equipment
to be connected.
• Audio signals synchronizing with currently displayed images are
always output to the AUDIO OUTPUT terminals.
• While in DTV mode, no signals are output if they are copy guarded.
Using the HDMI Input
The INPUT 3 terminals include an HDMI terminal to which digital video
and audio signals can be input. To use the HDMI terminal, activate the
terminal and specify the types of video and audio signals to be received
from the connected equipment. For the types of these signals, see the
operation manual that came with the connected equipment.
Before starting the menu, press INPUT 3 on the remote control unit or
press INPUT on the plasma television to select INPUT 3.
For audio, the system supports the following:
•Linear PCM (STEREO 2ch)
• Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz
Note
• PC signals are not compatible with the HDMI terminal.
• It may take a short while until the image is displayed, depending
on the equipment connected.
Connecting HDMI equipment
Activating the HDMI terminal
1 Press HOME MENU.
2 Select “Option“ (/ then ENTER).
3 Select “HDMI Input“ (/ then ENTER).
4 Select “Setting“ (/ then ENTER).
5 Select “Enable“ (/ then ENTER).
6 Press HOME MENU to exit the menu.
To specify the type of digital video signals:
1 Repeat steps 1 to 3 provided for “Activating the HDMI
terminal“.
2 Select “Video“ (/ then ENTER).
Input signal table
1920 x 1080i@50 Hz
720 x 576p@50 Hz
1280 x 720p@50 Hz
720(1440) x 576i@50 Hz
1920 x 1080i@59.94 Hz/60 Hz
720 x 480p@59.94 Hz/60 Hz
1280 x 720p@59.94 Hz/60 Hz
720(1440) x 480i@59.94 Hz/60 Hz
1920 x 1080p@24 Hz
Rear view
3
Amplifier/AV receiver
Stereo
audio cable
Optical digital
audio cable
Item Description
Disable (default) Deactivates the HDMI terminal.
Enable Activates the HDMI terminal.
Rear view
3
HDMI device
SCART cable
(for analogue audio)
HDMI cable carrying
the HDMI mark
PDP4270XD_En.book Page 51 Friday, June 16, 2006 5:32 PM

Pioneer PDP-4270XD Specifications

General

Depth	115 mm
Width	1040 mm
Height	679 mm
Weight	32100 g
Comb filter	3D
Pixel pitch	- mm
Aspect ratio	16:9
Product color	Black
Noise reduction	Yes
RMS rated power	13 W
Display diagonal	42 \
Channels quantity	99 channels
Display brightness	1100 cd/m²
Display resolution	1024 x 768 pixels
Display technology	Plasma
Power requirements	AC 220 - 240 V, 50/60 Hz
SCART ports quantity	3
Contrast ratio (typical)	3000:1
Analog signal format system	PAL, SECAM
Power consumption (standby)	0.7 W
Power consumption (typical)	291 W
