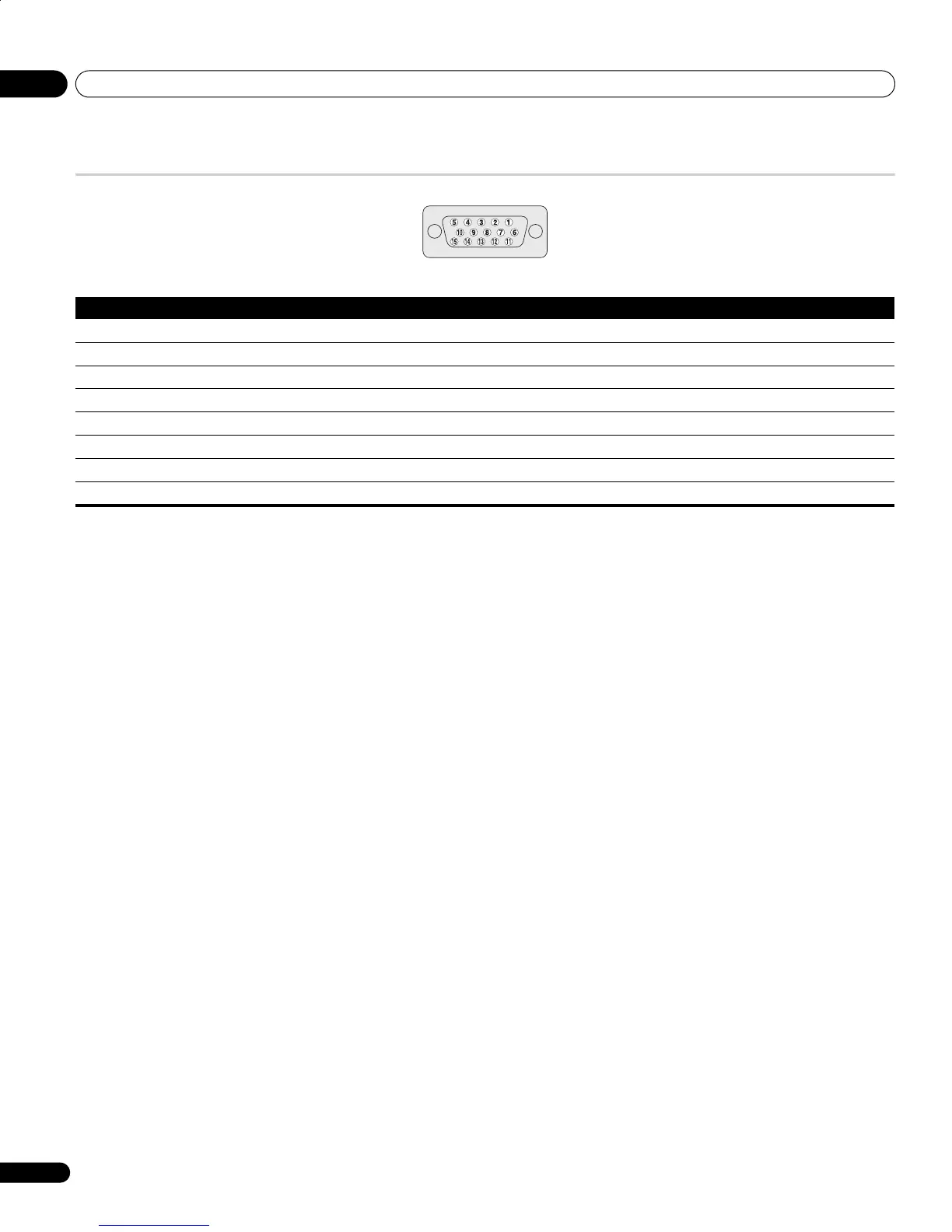

Signal assignments for 15-pin D-sub connector
Pin No. Signal assignment Pin No. Signal assignment
1 R 9 +5 V
2 G 10 GND (ground)
3 B 11 Not connected
4 Not connected 12 SDA
5 Not connected 13 HD
6 GND (ground) 14 VD
7 GND (ground) 15 SCL
8 GND (ground)
PDP4270XD_En.book Page 58 Friday, June 16, 2006 5:32 PM

Pioneer PDP-4270XD Specifications

General

Depth	115 mm
Width	1040 mm
Height	679 mm
Weight	32100 g
Comb filter	3D
Pixel pitch	- mm
Aspect ratio	16:9
Product color	Black
Noise reduction	Yes
RMS rated power	13 W
Display diagonal	42 \
Channels quantity	99 channels
Display brightness	1100 cd/m²
Display resolution	1024 x 768 pixels
Display technology	Plasma
Power requirements	AC 220 - 240 V, 50/60 Hz
SCART ports quantity	3
Contrast ratio (typical)	3000:1
Analog signal format system	PAL, SECAM
Power consumption (standby)	0.7 W
Power consumption (typical)	291 W
