Using with other equipment12
50
En
When you press the play button on the VCR, the system automatically
turns on from standby and displays a VCR image.
TV-VCR advanced "AV link" systems may not be compatible with some
external sources.
VCR playback
To watch a VCR image, press INPUT 2 on the remote control unit or
press INPUT on the plasma television to select INPUT2.
Note
• If VCR images do not come in clearly, you may need to change the
input signal type setting using the menu (see page 45).
• Connect external equipment to only terminals that are to be
actually used.
• Refer to your VCR operation manual for the signal type.
Connecting a game console or camcorder
Use the INPUT 4 terminals to connect a game console, camcorder and
other audiovisual equipment.
Displaying an image from the game console or
camcorder
To watch an image coming from the game console or camcorder,
press INPUT 4 on the remote control unit or press INPUT on the
plasma television to select INPUT4.
Note
• The INPUT 4 terminals are checked for cable connections in the
order where; 1) S-Video, 2) Video.
• Connect external equipment to only terminals that are to be
actually used.

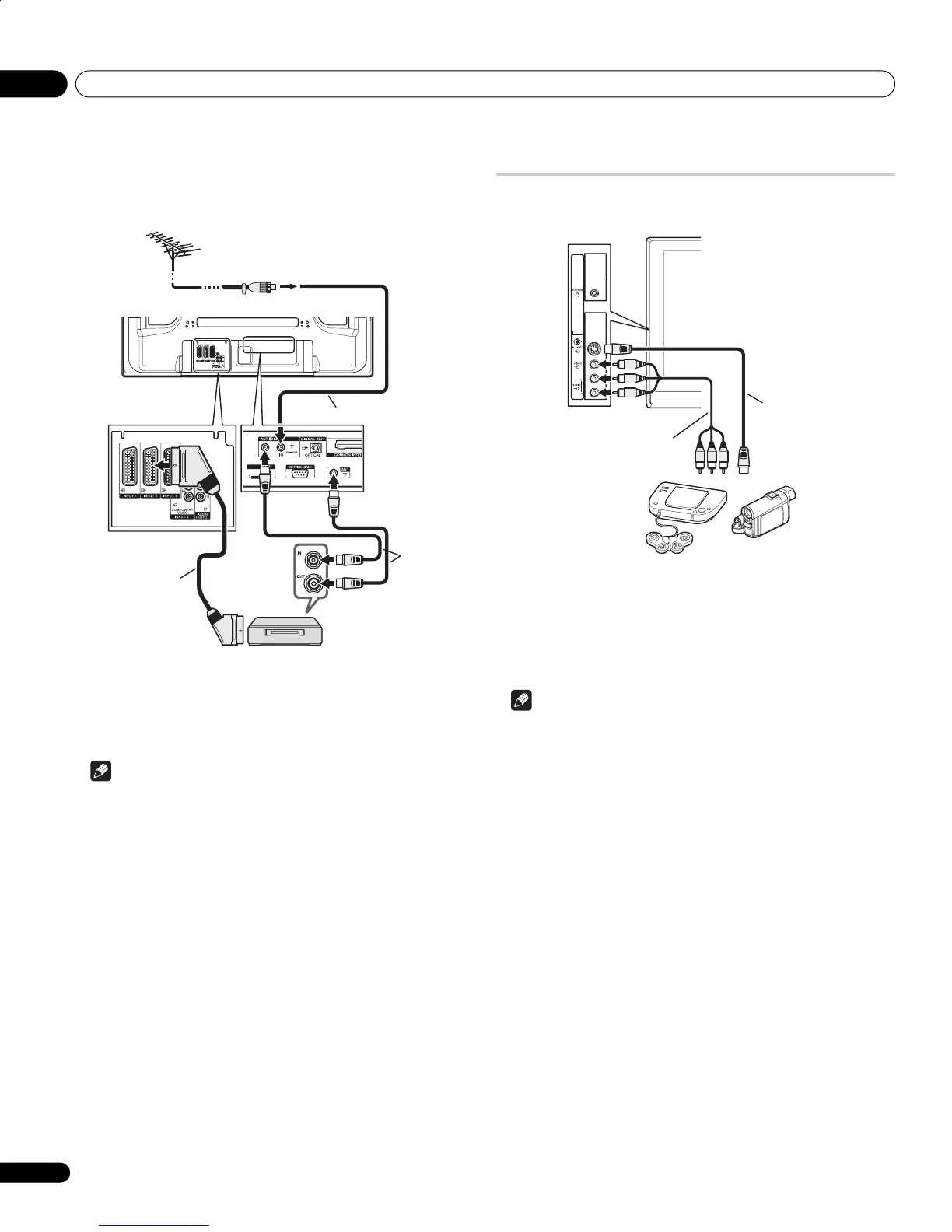

Rear view
3
VCR
Antenna
SCART cable
Antenna
cables
Antenna cable
INPUT 4
Game console/camcorder
Audio/Video cable
S-Video cable
PDP4270XD_En.book Page 50 Friday, June 16, 2006 5:32 PM

Pioneer PDP-4270XD Specifications

General

Depth	115 mm
Width	1040 mm
Height	679 mm
Weight	32100 g
Comb filter	3D
Pixel pitch	- mm
Aspect ratio	16:9
Product color	Black
Noise reduction	Yes
RMS rated power	13 W
Display diagonal	42 \
Channels quantity	99 channels
Display brightness	1100 cd/m²
Display resolution	1024 x 768 pixels
Display technology	Plasma
Power requirements	AC 220 - 240 V, 50/60 Hz
SCART ports quantity	3
Contrast ratio (typical)	3000:1
Analog signal format system	PAL, SECAM
Power consumption (standby)	0.7 W
Power consumption (typical)	291 W
