Preparation05
18
En

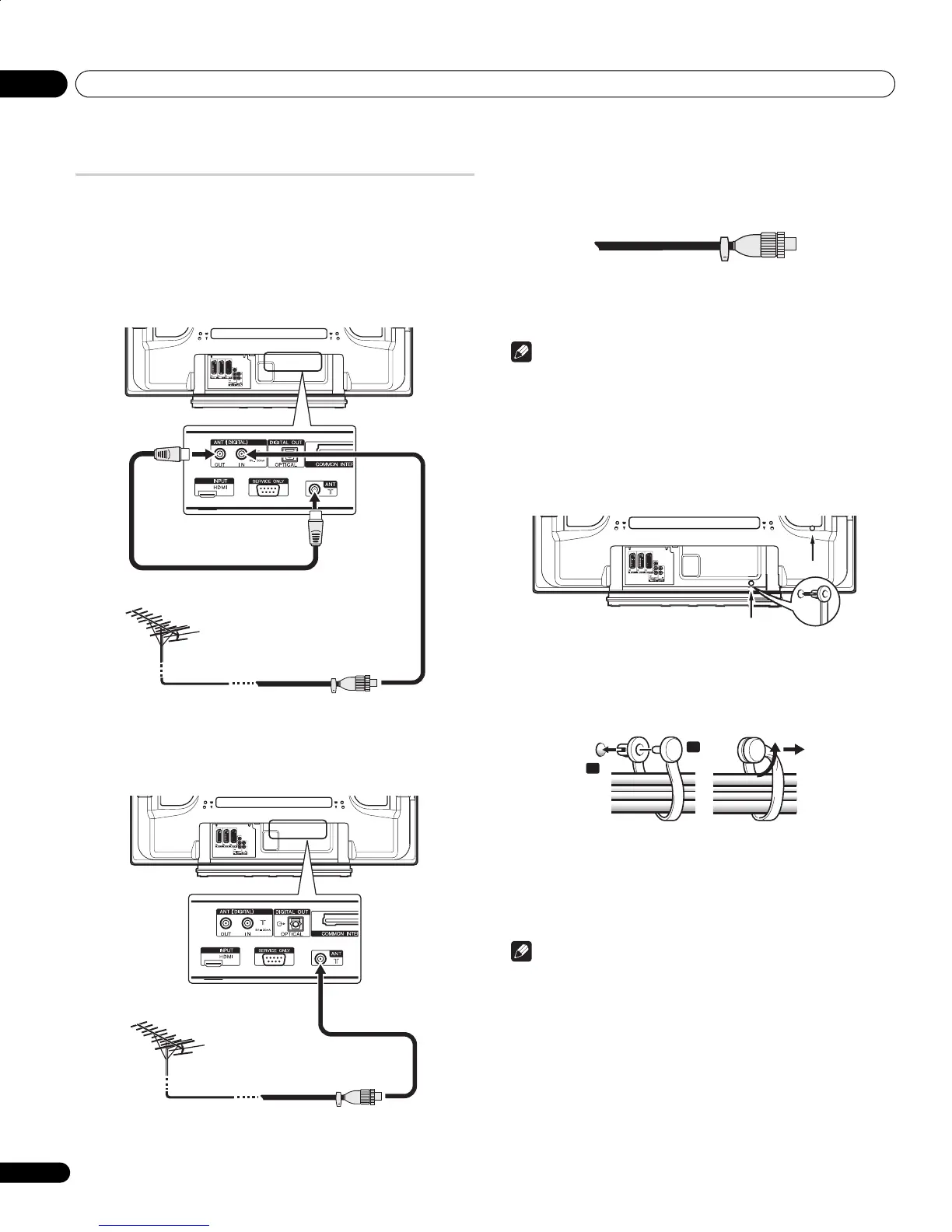

Basic connections
Connecting the antenna
To enjoy a clearer picture, use an outdoor antenna. The following is a
brief explanation of the types of connections that are used for a coaxial
cable.
• If you want to use an indoor antenna, use with a 5 V, 30 mA signal
amplifier and make sure that “Aerial Power” is set to “On”.
• For viewing both analogue and digital broadcasts, connect the
antenna cable to the ANT OUT terminal (antenna through out) and
ANT (analogue input) terminal.
• For viewing analogue broadcasts only, connect the 75-ohm coaxial
cable (commercially available) to ANT (analogue input) terminal.
Antenna cable (commercially available)
If your outdoor antenna uses a 75-ohm coaxial cable with a standard
DIN45325 plug (IEC169-2), plug it into the antenna terminal at the rear
of the plasma television.
Note
• If the antenna is not connected correctly, the quality of reception
may be impaired. If images are not displaying correctly, check
whether the antenna connection is correct or not.
Routing cables
Use the speed clamps as necessary to route the connecting cables.
cables. The diagrams below show the location of the holes on the rear
of the plasma television.
Attaching and removing speed clamps
Insert [1] into an appropriate hole on the rear of the plasma television
and snap [2] into the back of [1] to lock the clamp.
• Speed clamps are designed to be difficult to undo once in place.
Please attach them carefully.
• Use pliers to twist the clamp 90º, pulling outward. The clamp may
deteriorate over time and become damaged if removed.
• Be careful not to subject any connecting cables to strain.
Note
• Use the speed clamps as necessary.
3
Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable)
(commercially available)
3
Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable)
(commercially available)
1
2
