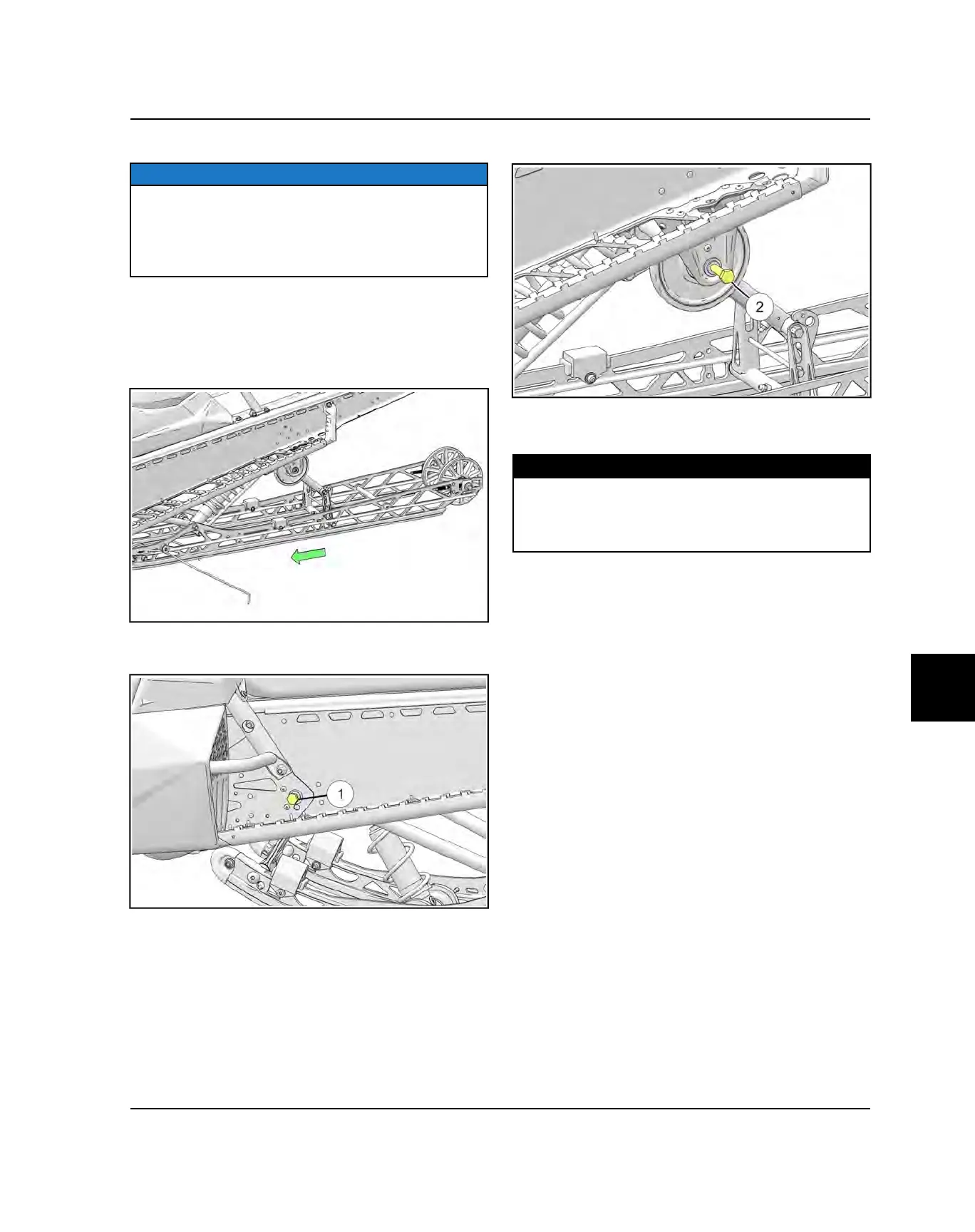

REAR SUSPENSION INSTALLATION
NOTICE
Lift rear of sled by using jacks or similar equipment
placed under floorboards.
RMK 163 rear suspension shown. RMK 155, SKS, and
RMK Assualt rear suspensions are similar.
Track not shown for clarity.
1. If the track and driveshaft were removed, these
components must be reinstalled before the rear
suspension can be installed.
2. Pivot the rear suspension back into the tunnel and
track.
3. Loosely install the front torque-arm-to tunnel mount
bolts
q
.
4. Install the two upper carrier fasteners.
5. When all four rear suspension mounting bolts are
installed, torque all to specifications.
TORQUE
Front Torque Arm-to-Tunnel Mount Fasteners:
47 ft-lbs (64 Nm)
Upper Carrier Fasteners:
46 ft-lbs (63 Nm)
6. Perform the Track Alignment and Track Tension
Adjustment procedures.
