FINAL DRIVE
7.6
10. Reinstall brake caliper assembly. Torque
retaining bolts to 18 ft. lbs. (25 Nm).
11. Reinstallfrontwheels. Torqueretainingnuts to15
ft. lbs. (21 Nm).
12. Carefully lower vehicle.
13. Field test vehicle for proper operation of brake
system and AWD operation.

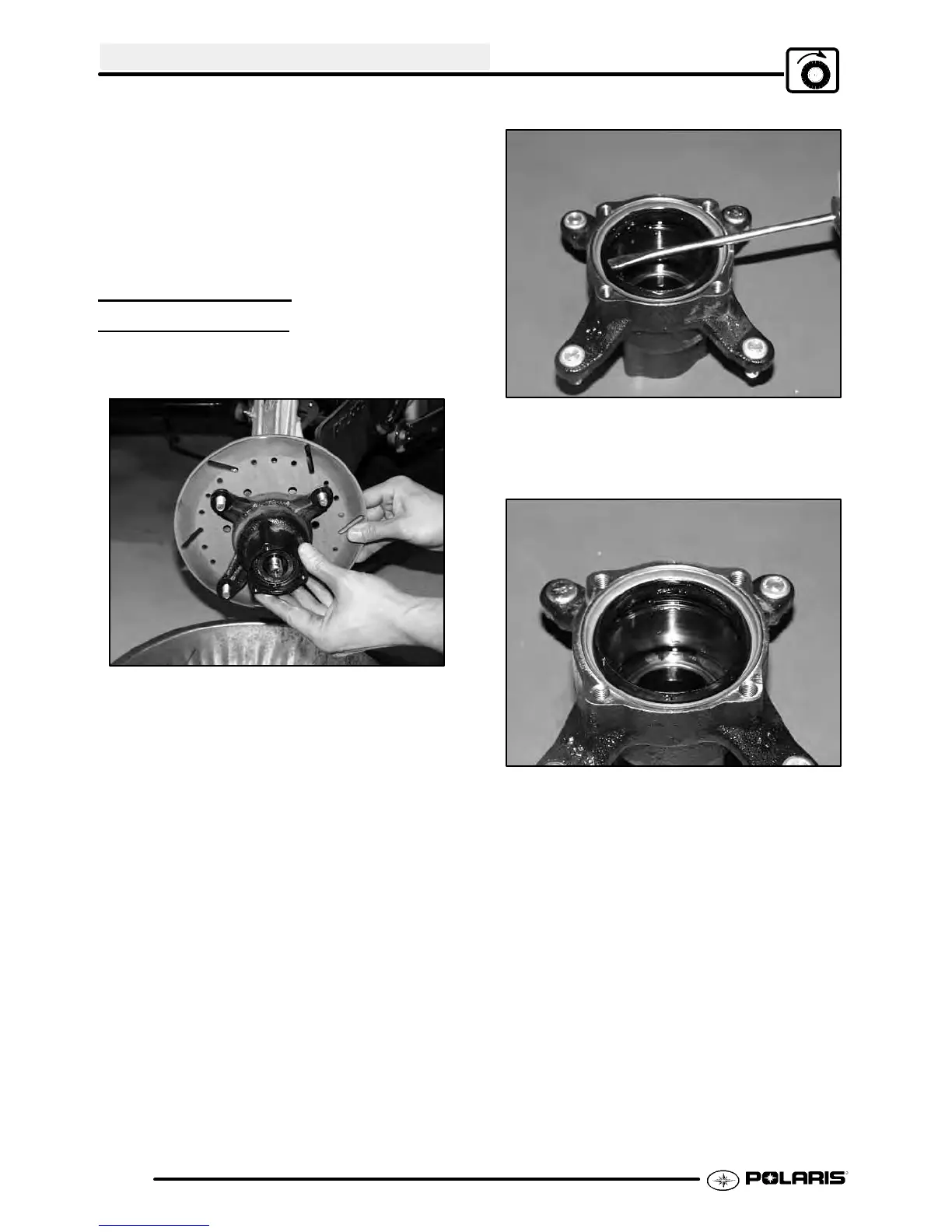

AWD HUB SEAL
REPLACEMENT
1. Remove and disassemble front hub. Refer to
Page 7.4.
2. Remove brake disc attaching bolts and brake
disc.
NOTE: If the attaching bolts are difficult to
remove, it may be helpful to heat the outer
surfaces of the hub in the area of the disc
mounting bolts, to soften the locking agent.
3. Apply heat to the hub seal area. When the hub
becomes too hot to touch, pry out the old seal as
shown. Do not damage the surface of the seal
cavity. Clean the hub in the seal mating area.
4. With spring side of new seal facing toward hub
casting, press it in until flush with brake disc
mating surface. CAUTION: Do not use a
hammer as damage to the seal will result.
5. Thoroughly clean the brake disc with brake
cleaner . It is very important that thebrakedisc be
free of any oil or solvents.
6. Reinstall the brake disc using genuine Polaris
OEM bolts that have a pre-applied locking agent.
Do not substitute bolts or use old ones.
7. Installattaching boltsandtorqueto18 ft. lbs.
(25 Nm).
