BODY AND STEERING
BODY ASSEMBLY

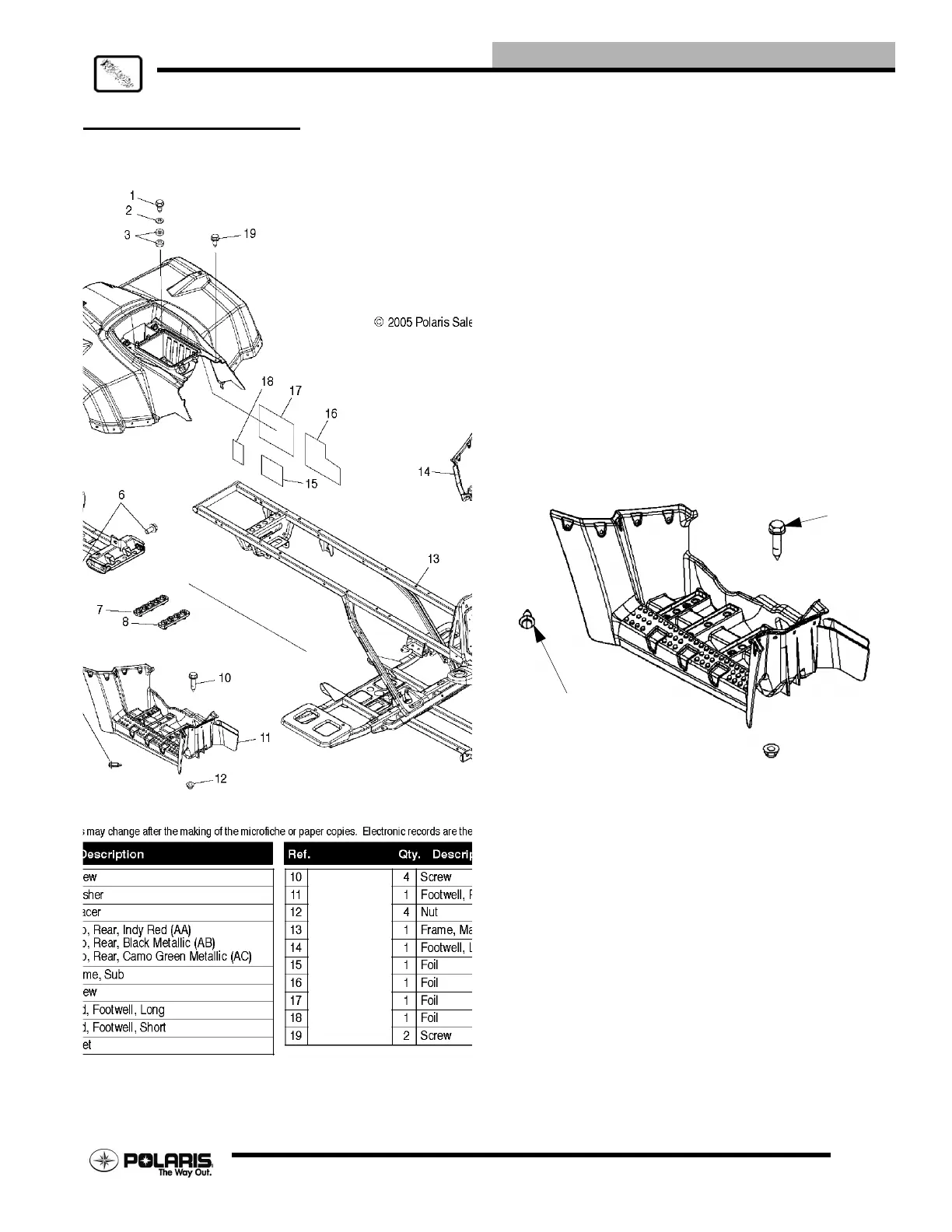

Exploded View
REAR CAB REMOVAL/INSTALLATION
1. Follow the procedure to remove the rear rack. See “REAR
RACK REMOVAL/INSTALLATION” on page 5.6.
2. Remove the screws (1,19) that secure the rear cab to the
frame.
3. Remove the plastic inserts (9) that secure the rear cab to the
frame footwells (11,14).
4. Disconnect the rear lights.
5. Lift the rear cab (4) from the frame.
6. Reverse the removal steps for installation.
FOOTWELL REMOVAL/INSTALLATION
1. Remove the plastic inserts (A) that secure the wheel well
to the front and rear cabs. See “PLASTIC INSERT” on
page 5.2.
2. Remove the screws (B) from the bottom of the foot well.
Remove the footwell.
3. Reverse the removal procedures to install the foot well.
NOTE: Be sure to properly align the cab ends into
the footwells upon reassembly.
