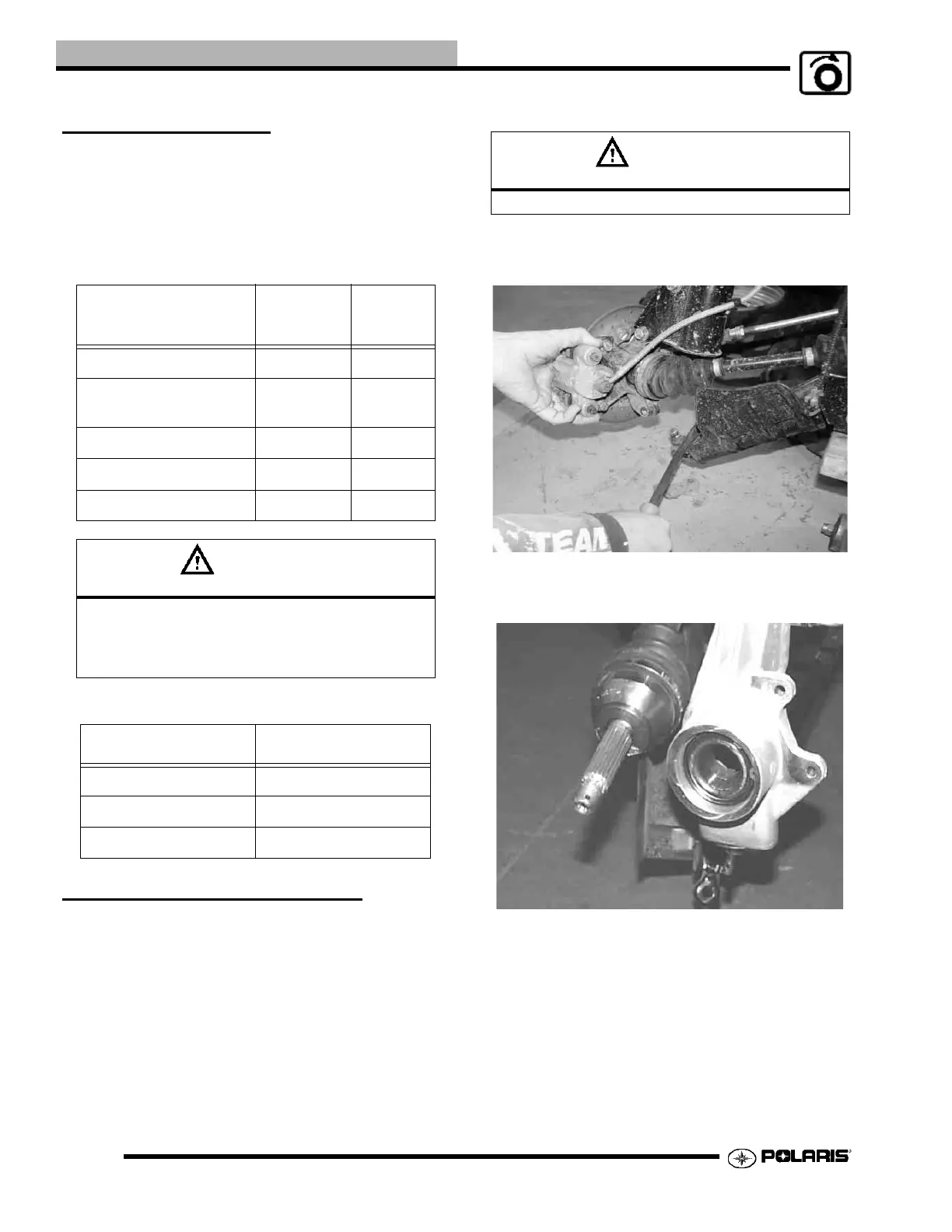

7.2
FINAL DRIVE
SPECIFICATIONS
Component Torques
IMPORTANT: Verify which type of tire your ATV is
equipped with (aluminum or steel wheel) when
torquing wheel nuts.
FRONT DRIVE CV SHAFT
Removal
1. Remove hub dust caps.
2. Remove cotter pins.
3. Loosen the hub retaining nuts.
4. Loosen - but do not remove - the wheel nuts.
5. Safely lift and support the front of the ATV.
6. Remove wheels.
7. Remove cotter pin and nut from lower A-arm ball joint.
Remove lower A-arm from ball joint using a suitable tool.
8. Pull strut assembly out while pivoting front drive shaft
downward until it clears strut assembly. (Hub removed for
clarity - removal optional)
Table 7-1: Torque Table
Component
ft.lbs.
(in.lbs.)
Nm
F/R Steel Wheel Nuts 27 41
F/R Aluminum Wheel
Nuts
90 122
Front Hub Nut 80 109
Rear Hub Nut 80 109
Lower Front A-arm 38 51
CAUTION
Locking nuts, and bolts with pre-applied locking agent
should be replaced if removed.
The self-locking properties of the nut or bolt
are reduced or destroyed during removal
Table 7-2: Special Tools
Part Number Tool Description
2872608 Roller Pin Removal Tool
8700226 CV Boot Clamp Pliers
-- A- Arm Removal Tool
CAUTION
Serious injury could occur if machine tips or falls.
To Next Page
