9.7
ELECTRICAL

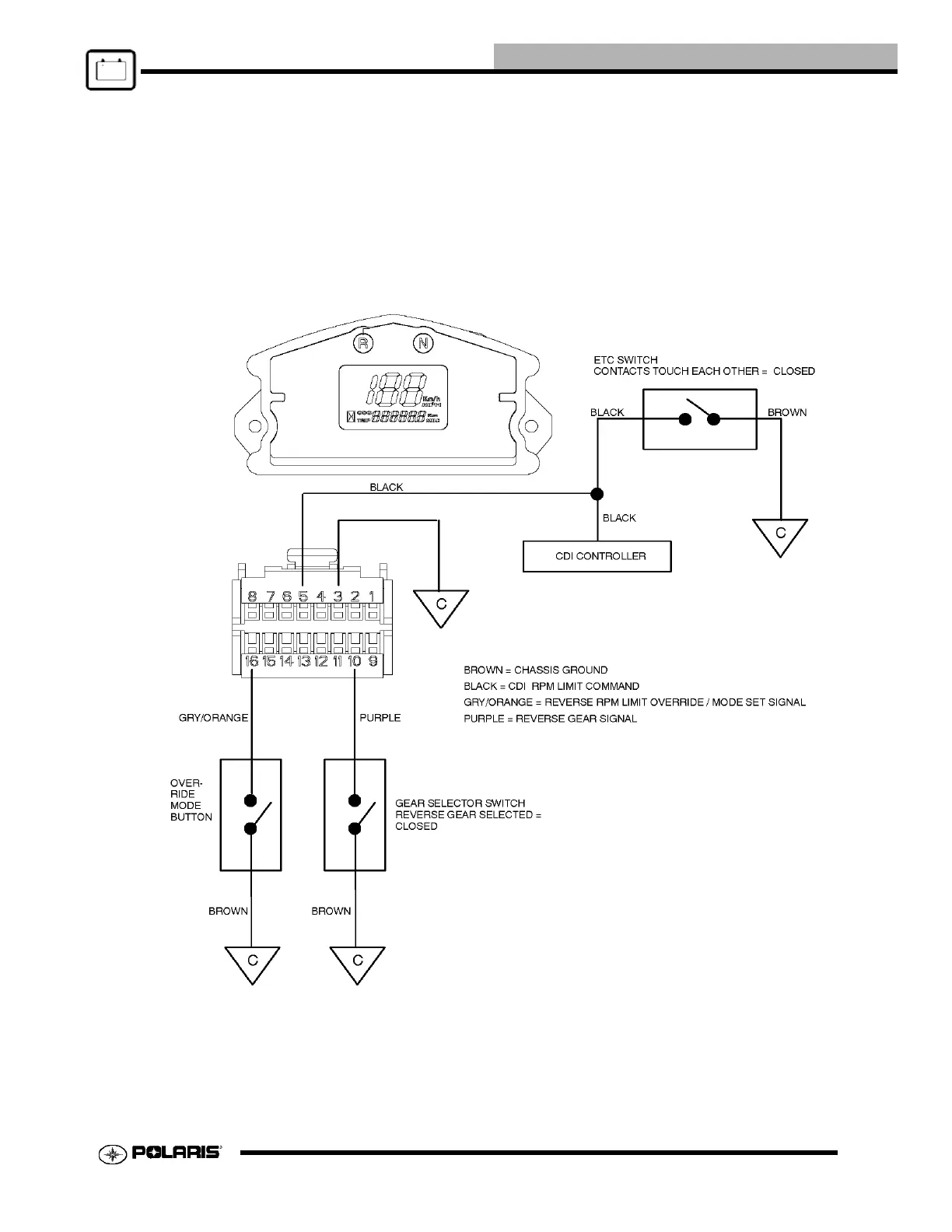

ETC / Reverse RPM Control System
The instrumentation gauge will signal the CDI controller to limit engine RPM to approximately 3100 RPM (6.5 MPH) whenever
the transmission is in reverse gear. If the ETC switch connects to ground, the instrument gauge will shut the engine off.
The operator can override the RPM speed limit in reverse, but not the ETC RPM limit, by pressing and holding the reverse
override button located on the left handlebar.
The reverse override button also serves as the mode switch button for the instrumentation gauge. The mode button toggles
between the several function the gauge performs.
To rule out engine RPM limiting caused by the CDI or instrument gauge, disconnect the BLACK wire from the CDI controller.
