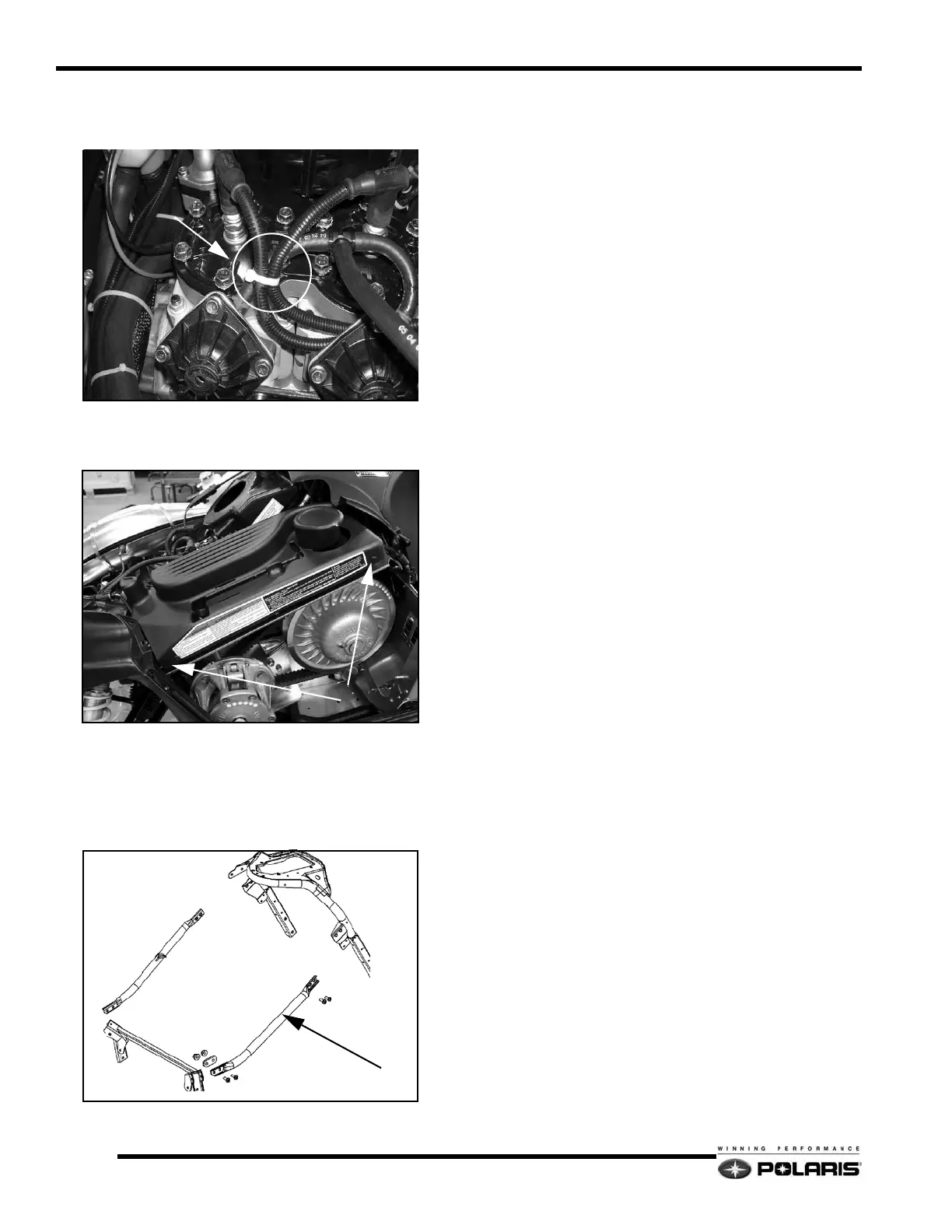

39. Connect the EV solenoid vent lines back onto the EV bases
and install the panduit strap around the spark plug wires as
shown.
40. Install the electrical center/belt holder over the electrical
center by aligning the rear buttons to the rear of the clutch
cover and installing the two fasteners.
41. Install the Nylock nuts and two T40 Torx bolts to the front
and the two T40 to the rear of the LH and RH chassis brace
and install the braces.
NOTE: Install the long bolts and the spacer on the
front portion of the bar before inserting it into the
mounting area.
42. Replace the nosepan plugs were removed to access the front
chassis brace fasteners.
43. Route the recoil rope through the eyelet on the chassis brace
and secure handle once past the console.
44. Install the exhaust system.
45. Add coolant and bleed system. See “Cooling System
Bleeding” on page 3.6.
46. Premix the first tank of fuel. See “2 Stroke Gasoline / Oil
Pre Mix” on page 2.7.
47. Test run the unit and clear any codes with Digital Wrench.
48. After test running check drive and driven clutch torque.
