BODY / STEERING / SUSPENSION
5

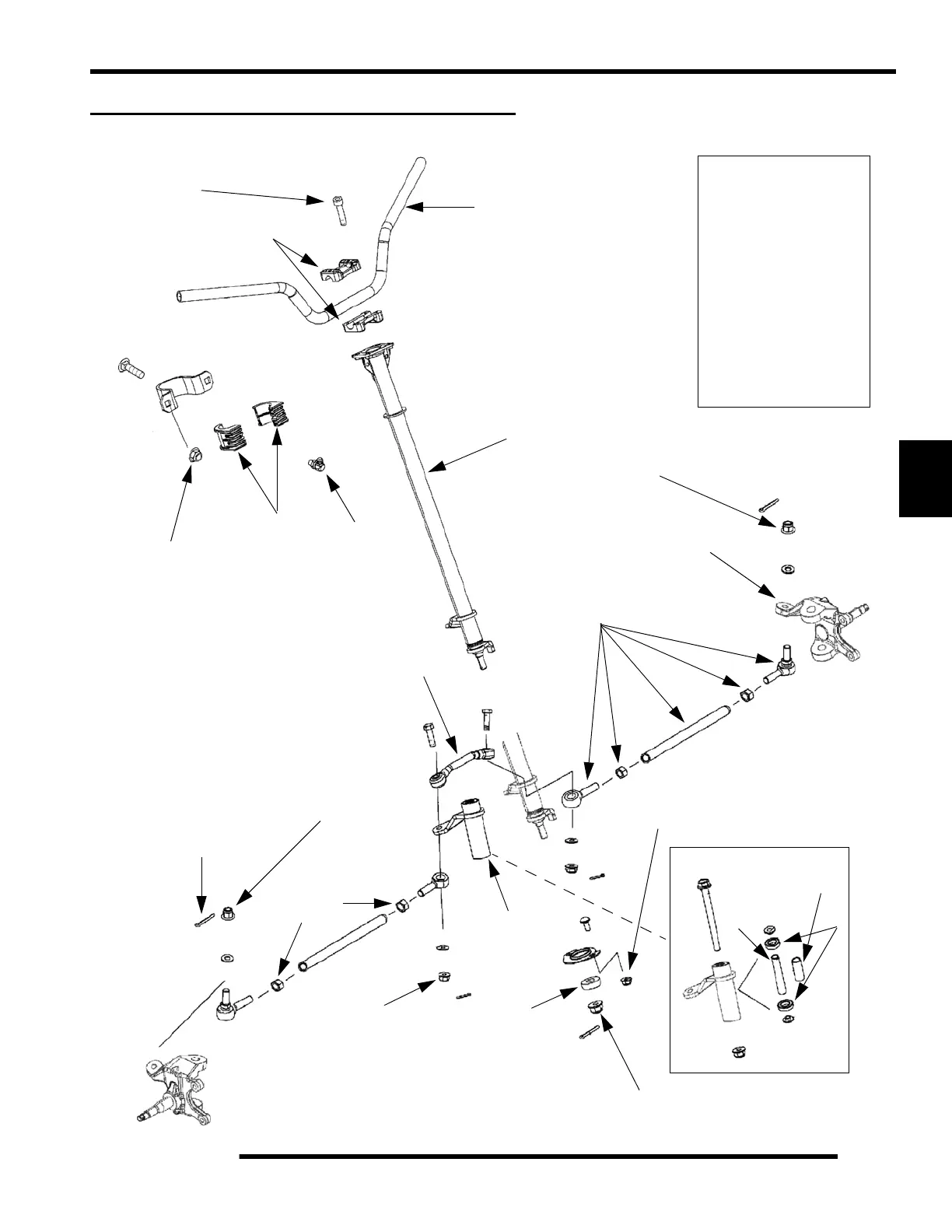

STEERING ASSEMBLY EXPLODED VIEW
NOTE: APPLY ANTI-SEIZE COMPOUND
ONTO SPINDLE BEFORE HUB INSTALLATION
A. Handlebar
B. Block Clamps
C. Steering Bushings
D. Steering Post
E. Zerk Fitting
F. Cotter Pin
G. Tie Rod Assembly
H. Sealed Ball Bearing
I. Ball Bearings
J. Foam Spacer
K. Tube Spacer
L. Steering Knuckle
A
B
D
E
C
F
G
H
I
J
K
L
M. Centerlink Asm.
M
N. Steering Idler Asm.
N
9 ft. lbs
(12 Nm)
35 ft. lbs. (47 Nm)
17 ft. lbs.
(23 Nm)
17 ft. lbs.
(23 Nm)
33 ft. lbs.
(45 Nm)
33 ft. lbs.
(45 Nm)
33 ft. lbs.
(45 Nm)
15 ft. lbs.
(20 Nm)
