5.14
BODY / STEERING / SUSPENSION

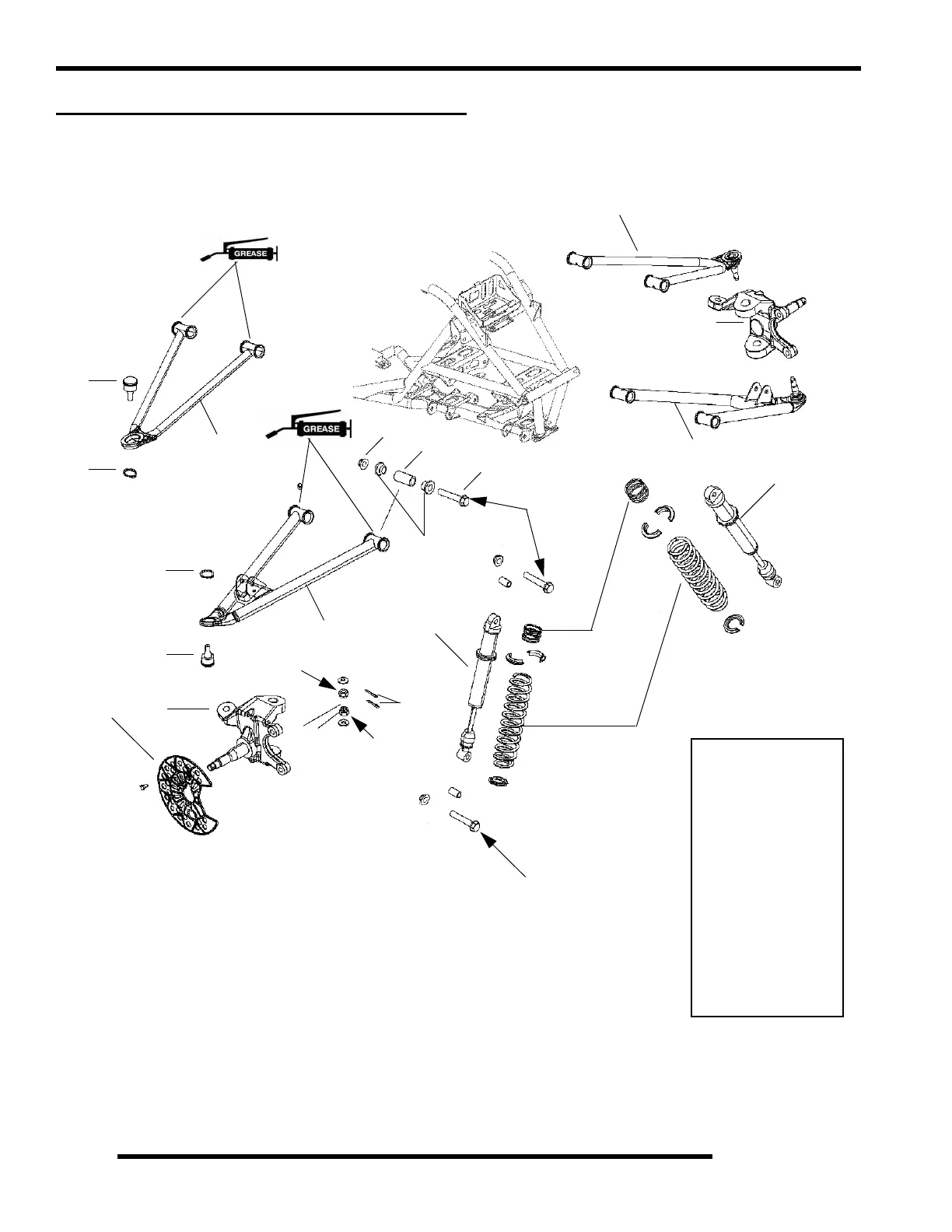

FRONT SUSPENSION EXPLODED VIEW
Use new cotter pins upon reassembly.
open end toward rear of machine.
A
B
C
C
D
D
E
F
G
H
I
J
J
L
L
K
M
A
B
I
Install with
A. Springs
B. IFP Shock
C. Upper A-Arm
D. Lower A-Arm
E. A-Arm Shaft
F. Bushings
G. Bolt
H. Flange Nut
I. Steering Knuckle
J. Ball Joints
K. Cotter Pins
L. Retainer Rings
M. Inner Disc Guard
33 ft. lbs.
(45 Nm)
40 ft. lbs.
(54 Nm)
33 ft. lbs.
(45 Nm)
40 ft. lbs.
(54 Nm)
