3.40
ENGINE

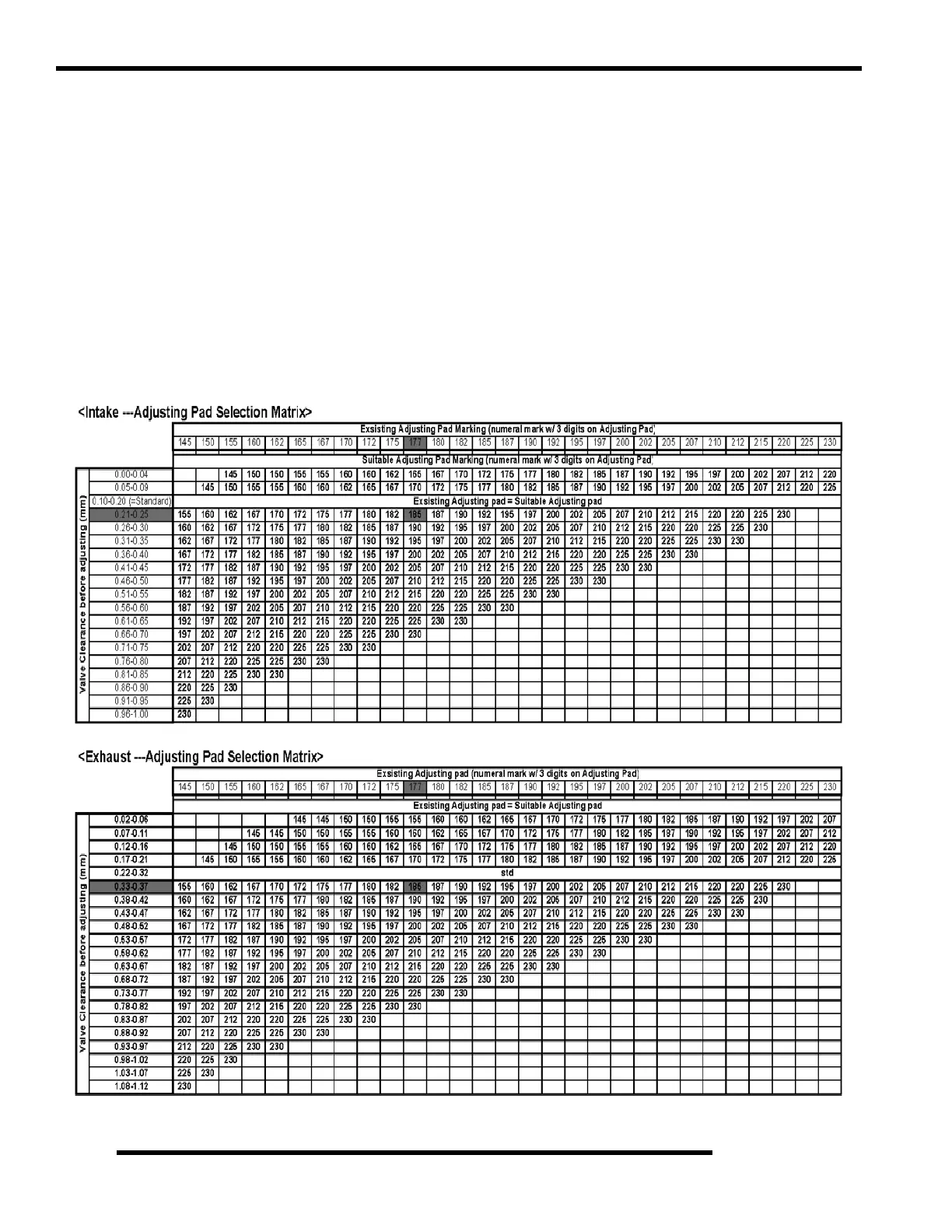

ES50PL Adjusting Pad Selection Matrix
1. Measure valve clearance at TDC (Compression Stroke) using thickness gauge with original adjusting pad installed.
2. Reference the measurement and the 3 digits marked on the existing adjusting pad on the matrix below.
3. Select a suitable adjusting pad from the matrix below and replace existing pad.
4. Measure and confirm that valve clearance is within the standard values.
5. If valve clearance is not within standard, reverify step#1 and repeat procedures again.
Example:
Intake- Valve clearance before adjusting: 0.23mm(.009”)
Existing adjusting pad mark: 177
From “Intake Adjusting Pad Selection Matrix”, a suitable adjusting pad would be 185
Exhaust- Valve clearance before adjusting: 0.35mm(.0137”)
Existing adjusting pad mark: 177
From “Intake Adjusting Pad Selection Matrix”, a suitable adjusting pad would be 185
