6.3
BRAKES
6

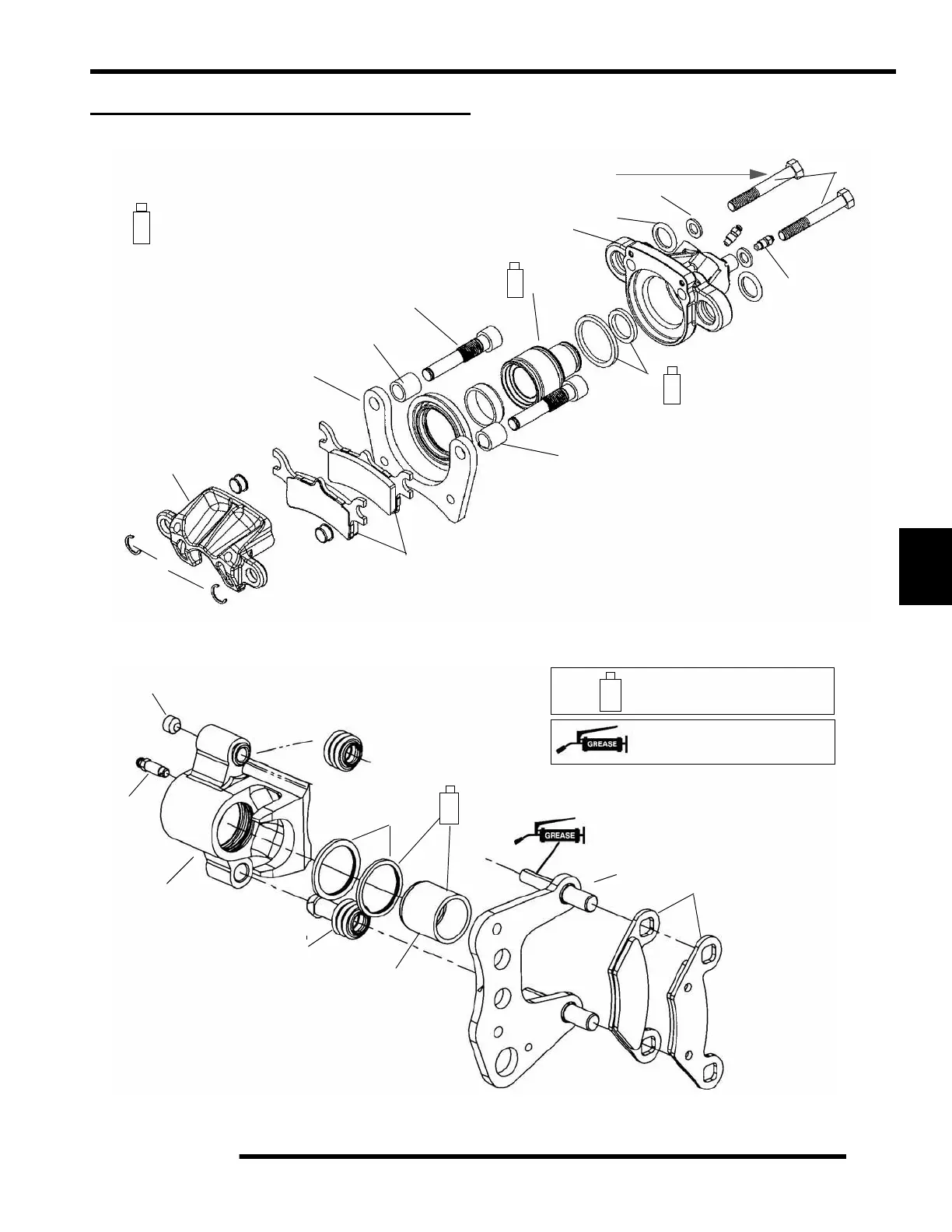

BRAKE CALIPER EXPLODED VIEWS
Rear Brake Caliper Assembly
Front Brake Caliper Assembly
A. Anvil Bolts
B. Bleed Screws
C. Washers
D. O-rings
E. Rear Housing
F. Seals
G. Piston
H. Slide Pins
I. Bushings
J. Seal
K. Bracket
L. Pad
M. Front Housing
N. Retaining Clips
Apply Polaris DOT 3 or DOT 4 brake fluid
to component.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
33 ft.lbs.
(45 Nm)
27 in lbs.
(3.1 Nm)
16-18 ft.lbs.
(22-24 Nm)
A. Socket Set Screw
B. Bleeder Screw
C. Caliper Assy.
D. Boot
E. Square O-ring
F. Piston
G. Caliper Mount
H. Brake Pads
A
B
C
D
E
F
G
H
Apply Polaris All Purpose
Grease
Apply Polaris DOT 3 or DOT 4
Brake Fluid to Component
47 in lbs.
(5.3 Nm)
