5.33
BODY / STEERING / SUSPENSION
5

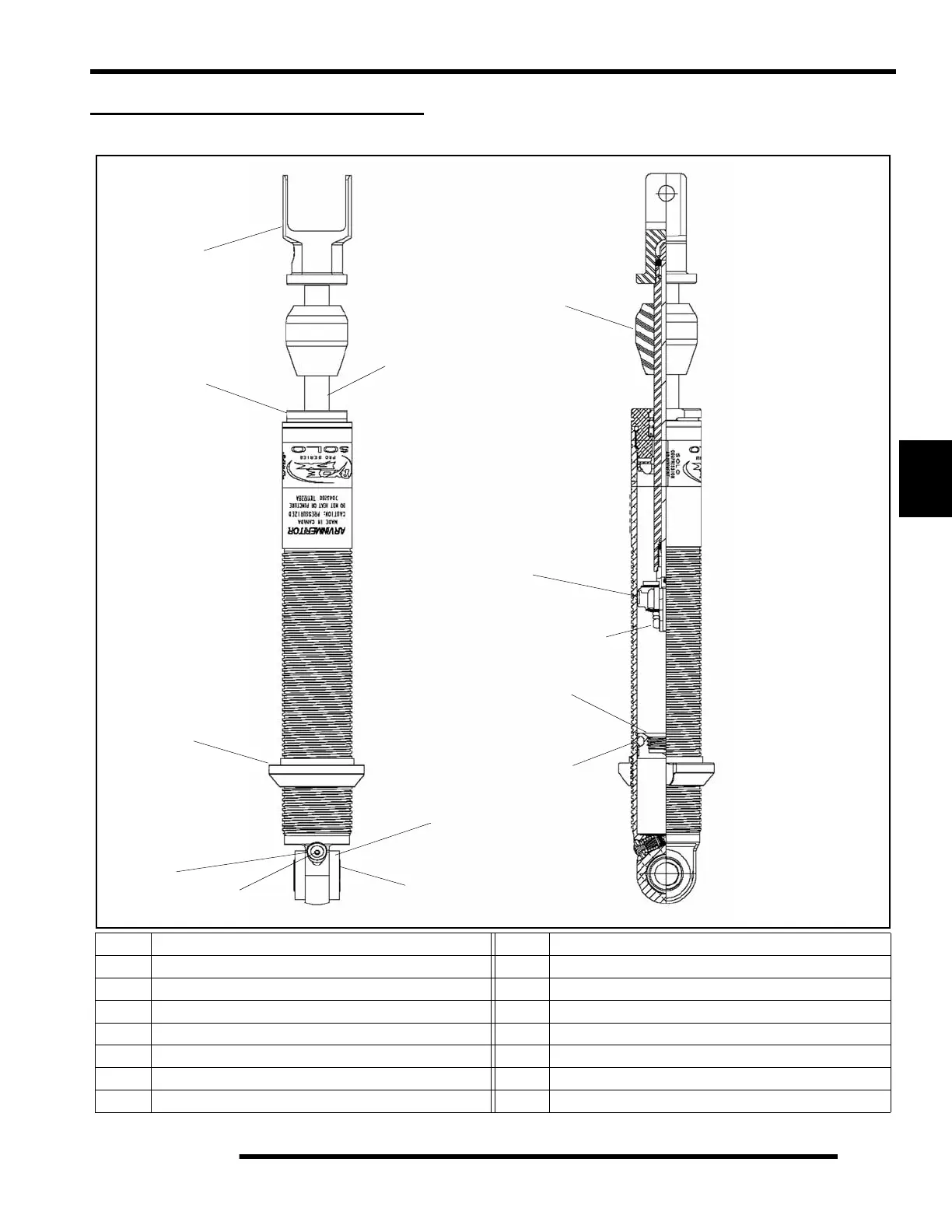

REAR SHOCK EXPLODED VIEW
RydeFX™ REAR SHOCK (Compression Adjustable)
Ref. Description Ref. Description
1. Bushing 8. Nut
2. Sleeve 9. IFP
3. Spring Retainer Nut 10. IFP O-Ring
4. Compression Bumper 11. Cylinder Head Asm
5. Upper Mount 12. Pressure Valve
6. Shaft 13. Valve Screw
7. Piston / Wear Band / Top-Out & Bottom-Out Washers
5
2
4
6
11
8
10
9
12
13
3
1
7
