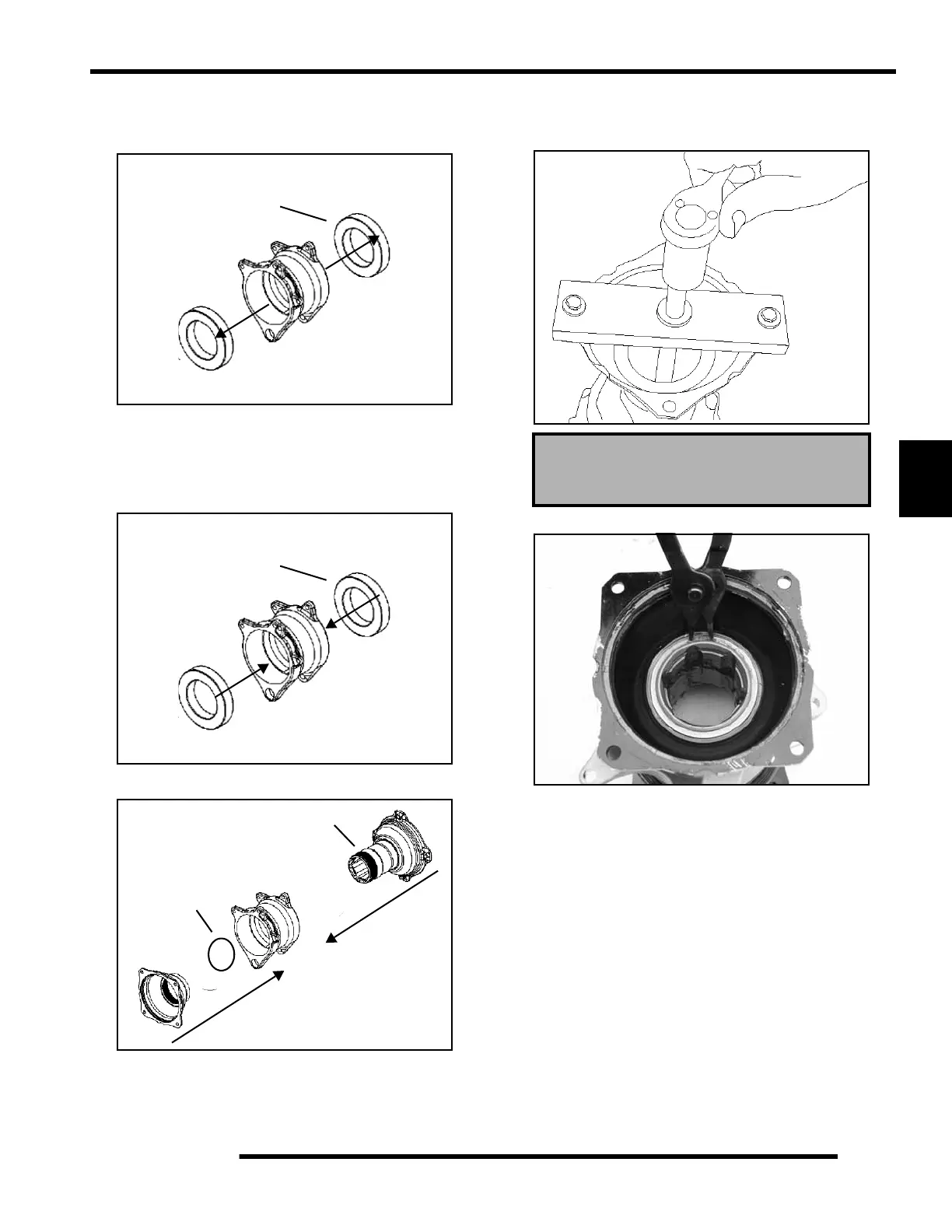

15. Using a suitable holding fixture, press or tap the carrier
bearings out the opposite end of each housing.
NOTE: Do not reuse the bearings if removed.
Assembly
1. Using a suitable holding fixture, press or tap the carrier
bearings into the housing.
NOTE: Do not reuse the bearings if removed.
2. Apply sealant to the sprocket hub splines before assembly.
3. Using Special Tool PN PA-48282, press the rear hub
assembly together. Verify o-ring is seated properly during
reassembly.
4. Install the sprocket hub snap ring.
Bearing
Bearing
O-ring
Sprocket Hub Assembly
Rear Hub Tool
PA - 48282
To Next Page
