Polaris Outlaw 500 User Manual

6.5
BRAKES
6

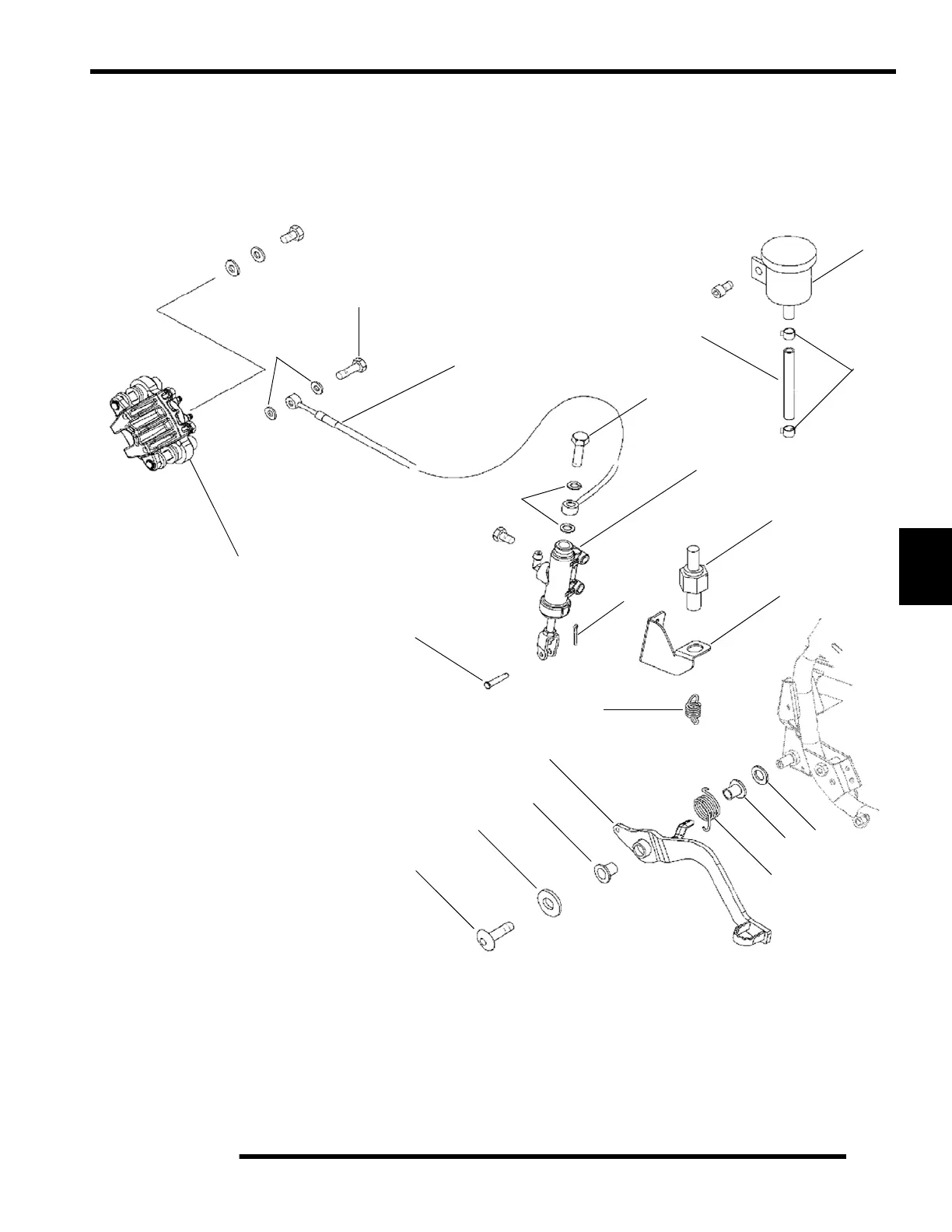

Rear Brake System - Exploded View
A. Caliper
B. Sealing Washer
C. Banjo Bolt
D. Brake Line
E. Clevis Pin
F. Master Cylinder Asm.
G. Cotter Pin
H. Rear Brake Reservoir
I. Hose Clamp
J. Reservoir Hose
K. Brake Switch
L. Brake Switch Bracket
M. Switch Spring
N. Washer
O. Bushing
A
B
C
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
P. Torsion Spring
Q. Foot Brake
O
R
R. Large Washer
S. Screw
S
15 ft. lbs.
(20 Nm)
15 ft. lbs.
(20 Nm)
18 ft. lbs.
(24 Nm)
