4 – Managing Switches
Installing Firmware
4-44 59264-02 A
S
QuickTools sessions will re-connect automatically
Telnet sessions must be restarted manually.
The applicable code versions are:
Future switch code releases will be upgraded non-disruptively unless
specifically indicated in its associated release notes
An NDCLA operation to previous switch code releases is not supported.
The Load Firmware dialog (Figure 4-18) allows you to select and install a firmware
image file. To open the Load Firmware dialog for an individual switch, open the
Switch menu and select Load Firmware. When the Load Firmware dialog is
opened, the path displayed in the Firmware Image Folder field is automatically
searched for firmware image files that can be installed. The default path to search
for firmware image files is the user's working directory. To change the path, click
the Browse button and select a new path. Click the Rescan button to search the
folder displayed in the Firmware Image Folder field. The firmware image files
found are listed in and can be selected from the Version drop-down list.

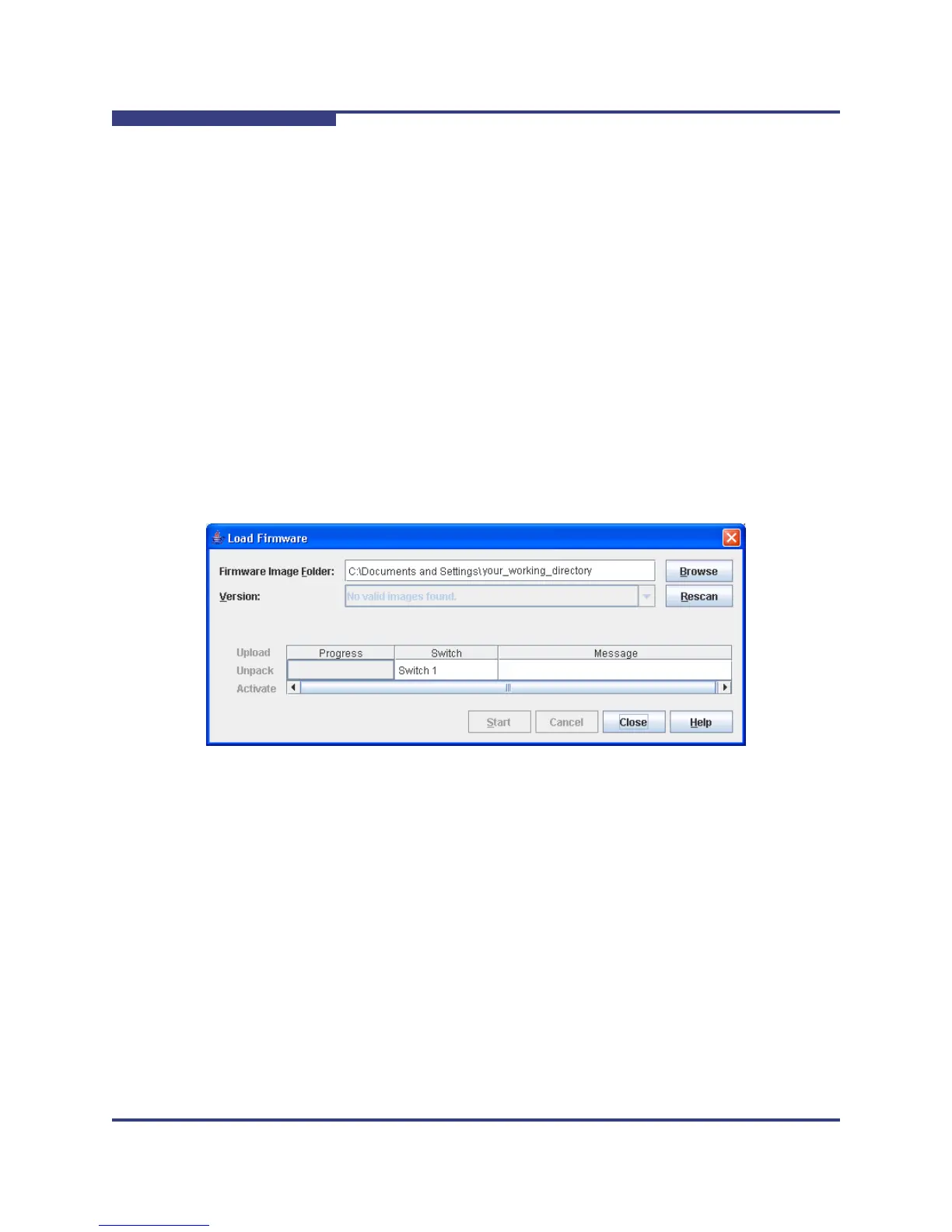

Figure 4-18 Load Firmware Dialog
To install firmware, do the following:
1. In the faceplate display, open the Switch menu and select Load Firmware.
2. In the Load Firmware dialog, click the Browse button next to the Firmware
Image Folder field to browse for and select the folder containing firmware file
to be loaded.
3. Select the firmware file from the Firmware Image Folder.
4. Click the Start button to begin the firmware load process. You will be shown
a message indicating the type of reset required in order to activate the
firmware.
5. Click the OK button to continue firmware installation.
6. Click the Close button to close the Load Firmware dialog.
