Qlogic SANbox 5800V Series User Manual

2 – Using QuickTools
QuickTools User Interface
2-4 59264-02 A
S

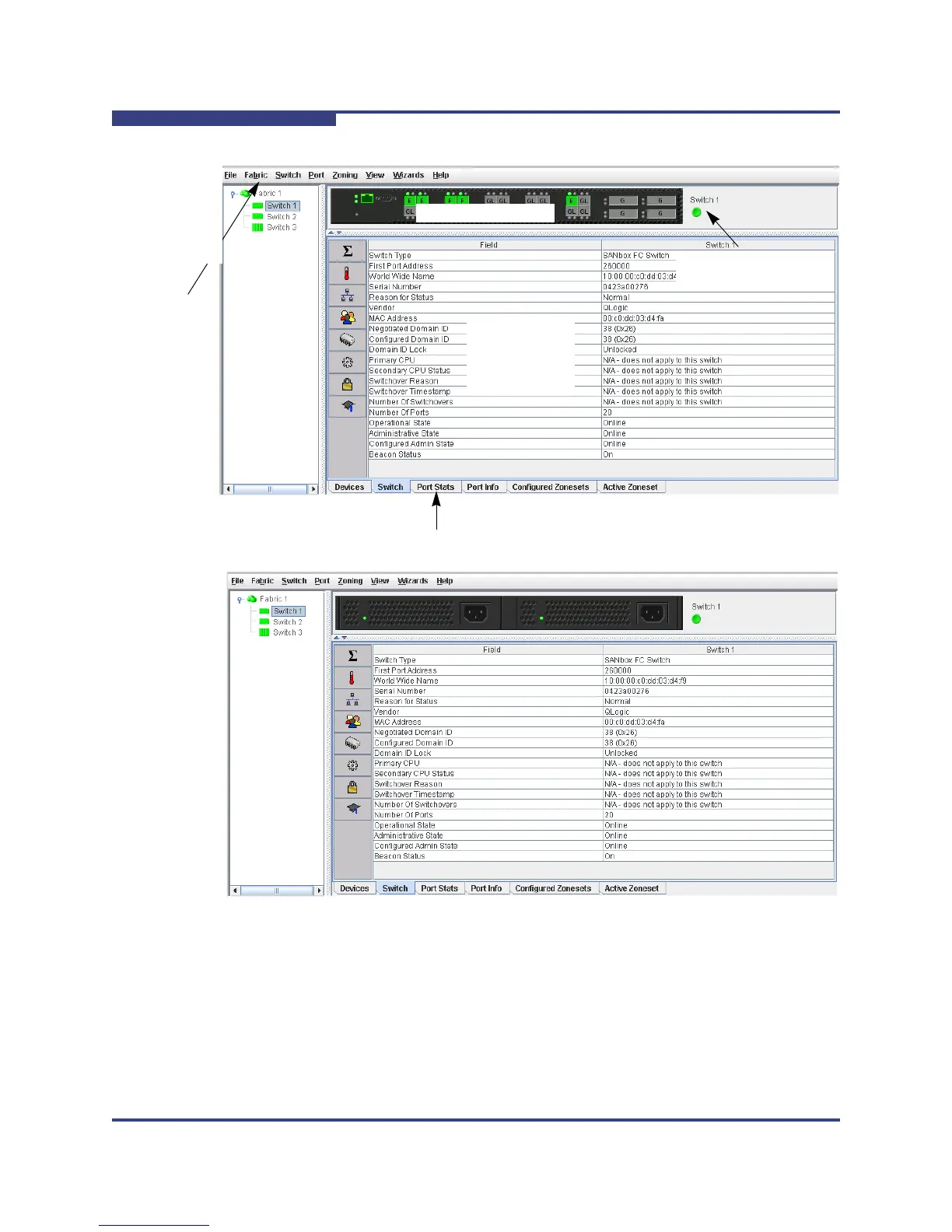

Figure 2-3 QuickTools Interface
Alerts Panel
The Alerts Panel shows all reasons for status, including faults. The Alerts Panel
entries are the highlighted rows between the faceplate image and the data
window entries.
Data Window Tabs
Graphic Window
Fabric
Tree
Menu
Bar
Data Window
Fabric/Switch Name
and Status
SANbox
5802V Switch
Backplate
Display
SANbox
5800V Series
Switch
Faceplate
Display
