2 – Using QuickTools
QuickTools User Interface
59264-02 A 2-3
A

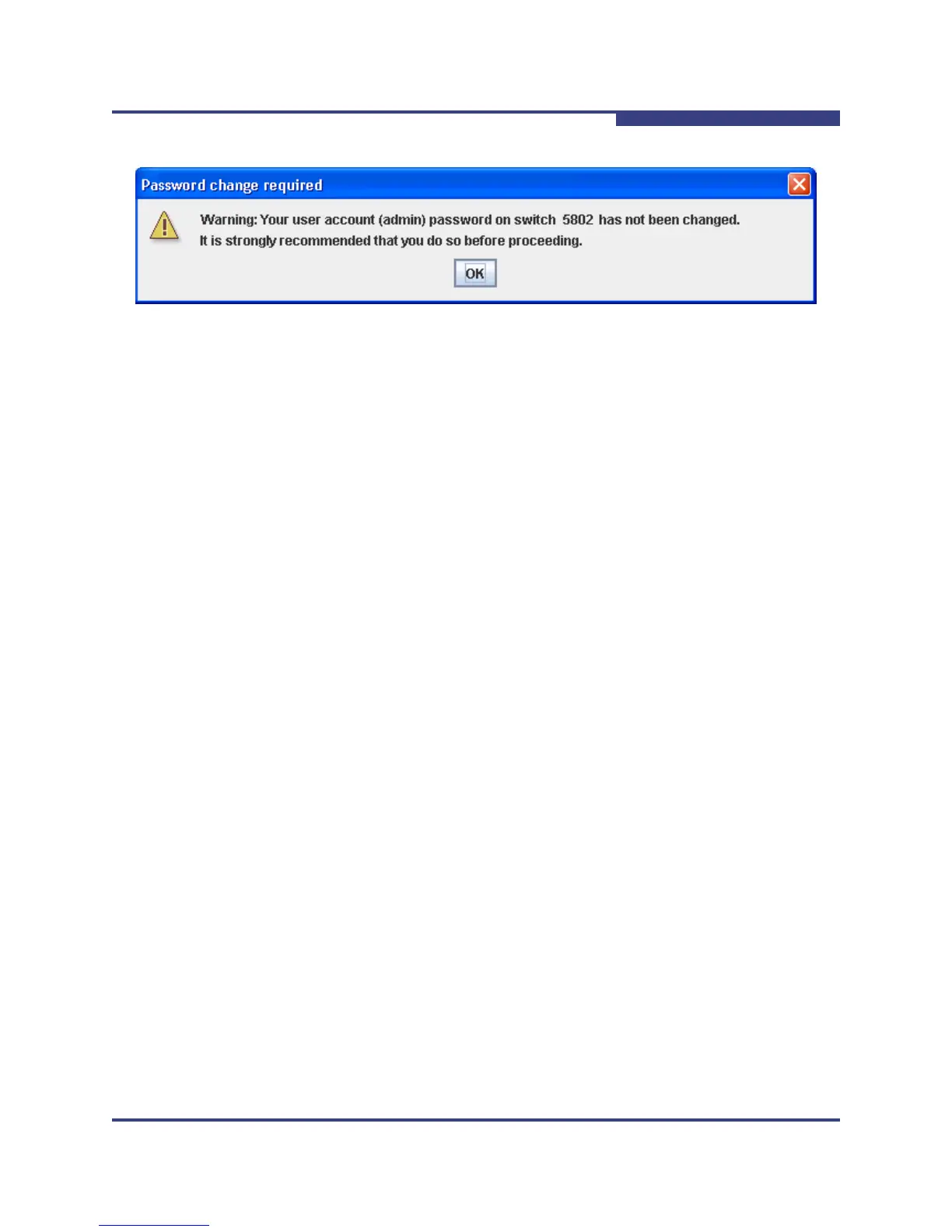

Figure 2-2 Password Change Required Dialog
QuickTools User Interface
The QuickTools web applet interface (Figure 2-3) consists of a menu bar, fabric
tree, graphic window, data windows (some with buttons), and data window tabs.
Information displayed in the data windows corresponds to the data window tab
selected. Data windows vary by the display type (faceplate and backplate).
While there is no topology display, the fabric name is displayed in the fabric tree
above the switch names as a reference. Click a switch name or icon in the fabric
tree to display a different switch faceplate or backplate in the graphic window
along with its corresponding data window.
The faceplate and backplate displays of the SANbox 5800V Series switches are
used to manage individual switches. The switch images in the faceplate displays
of the 5800V Series switches look identical and show the front of a single switch
and its ports. However, the switch images in the backplate displays of the 5800V
Series switches look different by reflecting the number of power supplies in the
switch. The SANbox 5800V switch has one power supply, and the SANbox 5802V
switch (Figure 2-3) has two power supplies.
