The Configured Zonesets data window (Figure 3-6) displays all zone sets, zones,
aliases, and zone membership in the zoning database. To open the Configured
Zonesets data window, click the Configured Zonesets tab below the data
window.
The Configured Zonesets data window uses display conventions for expanding
and collapsing entries that are similar to the fabric tree. An entry handle located to
the left of an entry in the tree indicates that the entry can be expanded. Click this
handle or double-click the following entries to expand or collapse them:
A zone set entry expands to show its member zones.
A zone entry expands to show its members by device port World Wide
Name, or device port Fibre Channel address.
The alias entry expands to show its entries.

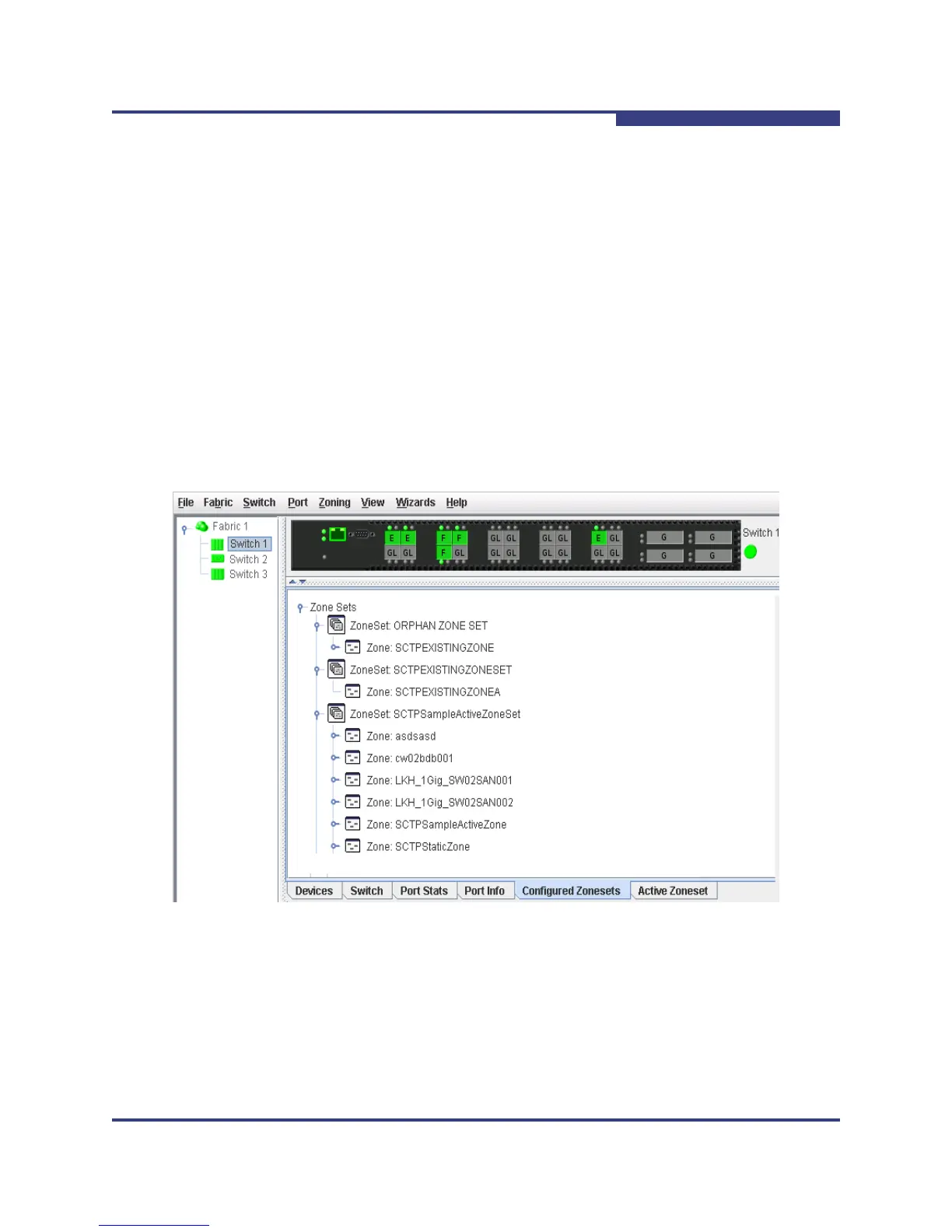

Figure 3-6 Configured Zonesets Data Window
