INSTALLATION
Harmony Ball Return Manual – 400-254-022 10 Rev. Date 3/16

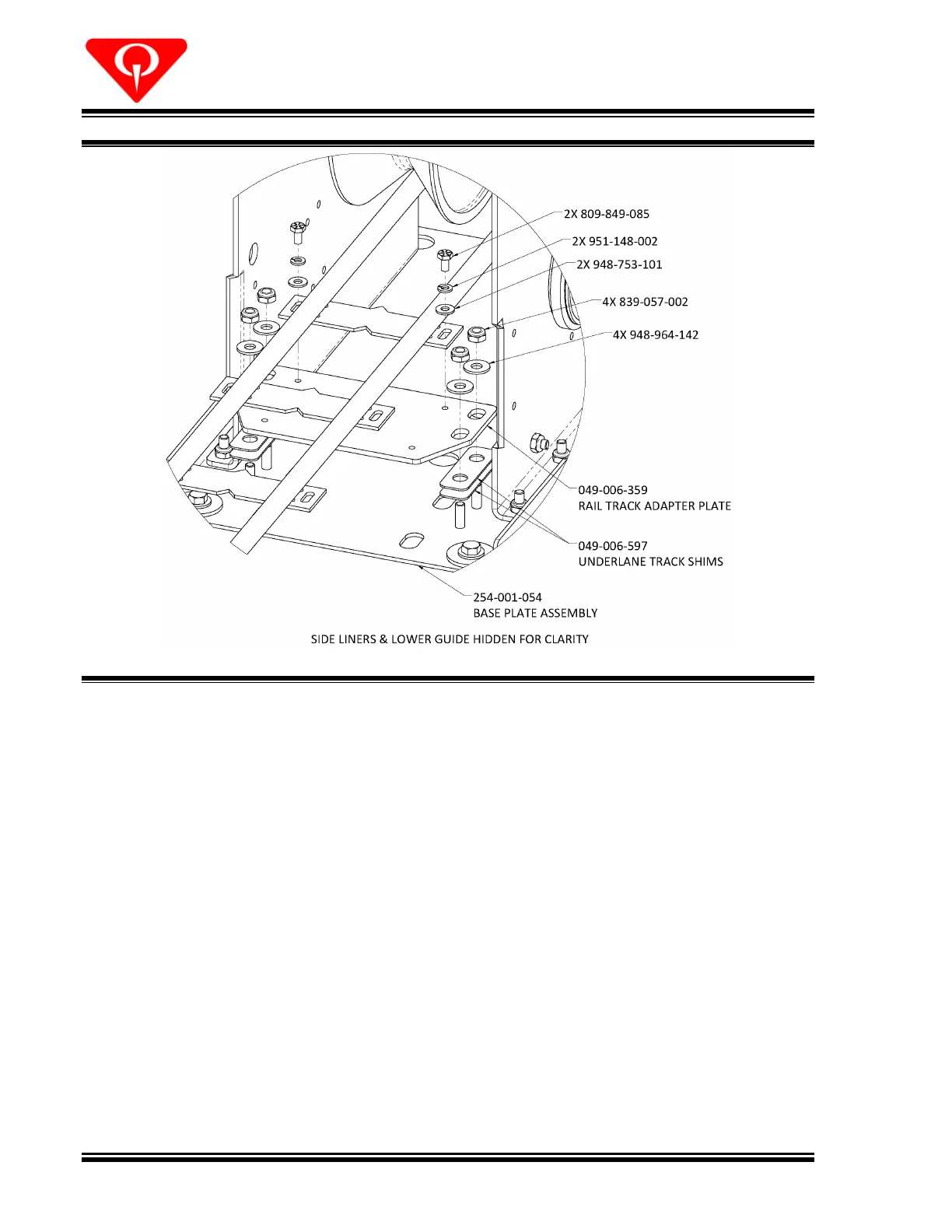

Figure 4, Track to Lift Connection
The dimensions specified herein are for a typical installation and assume an approach length of
16 ft. (192”). This typical installation will result in the ball rack ending flush with the end of the
approach. If the approach is longer or shorter than 16 ft., the end of the ball rack may or may
not line up with the end of the approach.
If the approach is less than 16 feet in length, or if more space is needed between the end of the
ball rack and other installed equipment, then you will have to offset the installation closer to
the foul line by the desired amount. If the location of the ball lift is shifted, it may be
necessary to cut and splice the underlane ball return track to accomplish the installation. The
ball track should be cut to the appropriate length before installing the lift.
