QubicaAMF Harmony User Manual

PARTS
Harmony Ball Return Manual – 400-254-022 Rev. Date 3/16 55

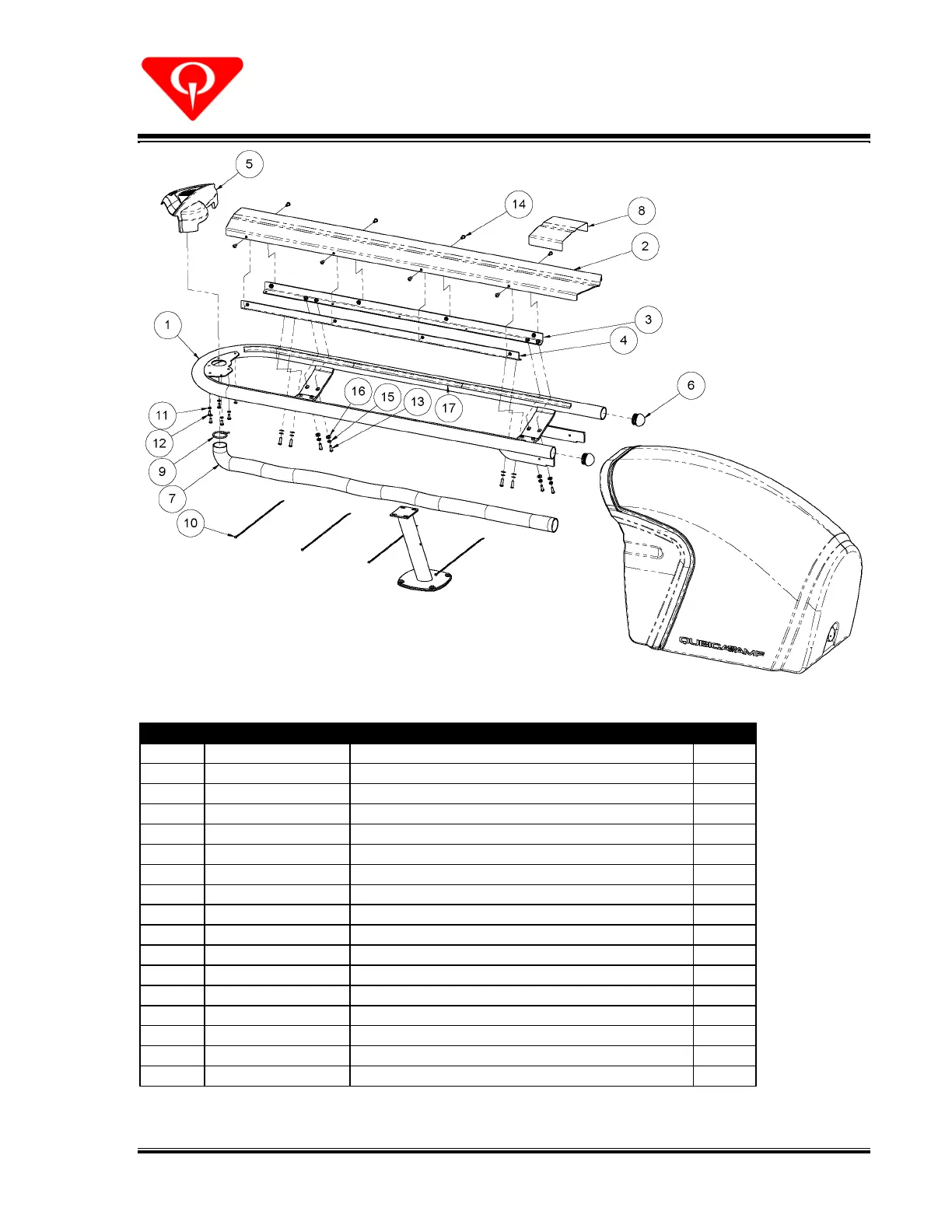

254-001-182, Ball Rack Assembly
Part No.
Description
Qty
1
254-001-183
Ball Rack Upper Rack Weldment Assembly
1
2
254-001-185
Ball Rack Tray
1
3
254-001-107
Ball Rack Tray Leg Left-Hand Weldment
1
4
254-001-108
Ball Rack Tray Leg Right-Hand Weldment
1
5
254-001-036
Ball Rack End Stop Assembly
1
6
254-001-043
Harmony Rack Tube Plug
2
7
254-001-042
Ball Return Hand Dryer Blower Hose
1
8
254-001-143
Ball Tray Decal Infrared Mask
1
9
744-102-008
Hose Clamp
1
10
770-011-011
CBT 17.0 X 5.0 X 50 NAT
4
11
951-148-008
SWM 1/4 ANSI BO
6
12
809-849-100
HHCS 1/4-20 X 0.63 GR8 BO
6
13
808-557-160
BHSCS 5/16-18 X 1.00 BO
8
14
808-557-108
BHSCS 5/16-18 X 0.625 SS
8
15
951-156-002
SWM 5/16 ANSI BO
8
16
7050-034100-012
FW 0.34 X 1.00 X 0.13 ZN
8
*17
254-001-039
Ball Rack Rail Bumper
6
* Item #17 is included as a part of item #1 and can also be purchased separately.
