INSTALLATION
Harmony Ball Return Manual – 400-254-022 15 Rev. Date 3/16
6.6 INSTALLING THE BLOWER AND HOOD SWITCH
Installing the Blower
1. Align the blower assembly along the interior of the rack-bezel weldment.
2. Secure by tightening two screws (809-849-100) through the exterior of the rack bezel
support as shown in Figure 11.
3. Secure the ground wire to the stud on the side of the blower bracket as shown above.
4. Route the blower cable on the even-lane side of the ball lift and secure cable ties as
required to keep it out of the path of the ball or any moving parts.

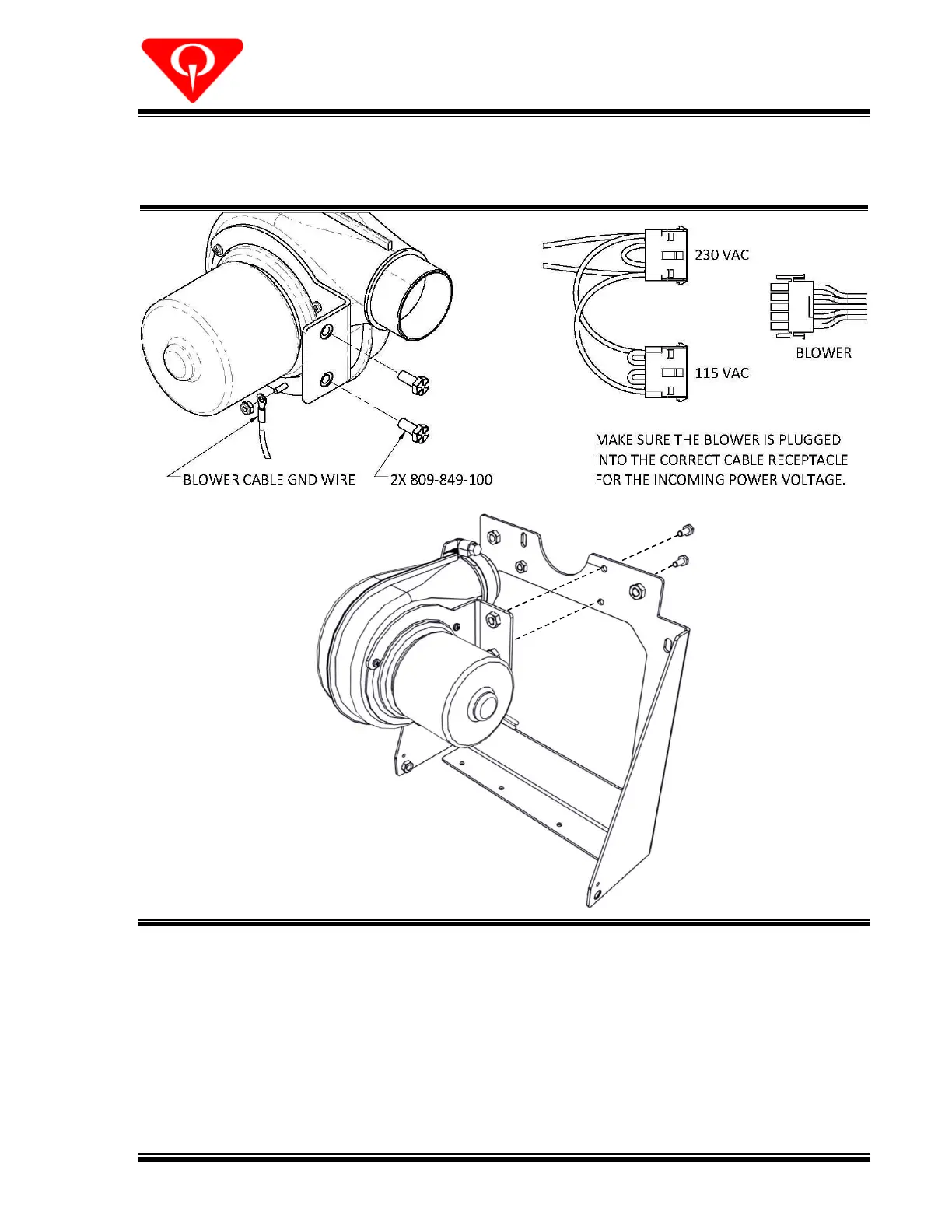

Figure 11, Blower Installation
