INSTALLATION
Harmony Ball Return Manual – 400-254-022 20 Rev. Date 3/16

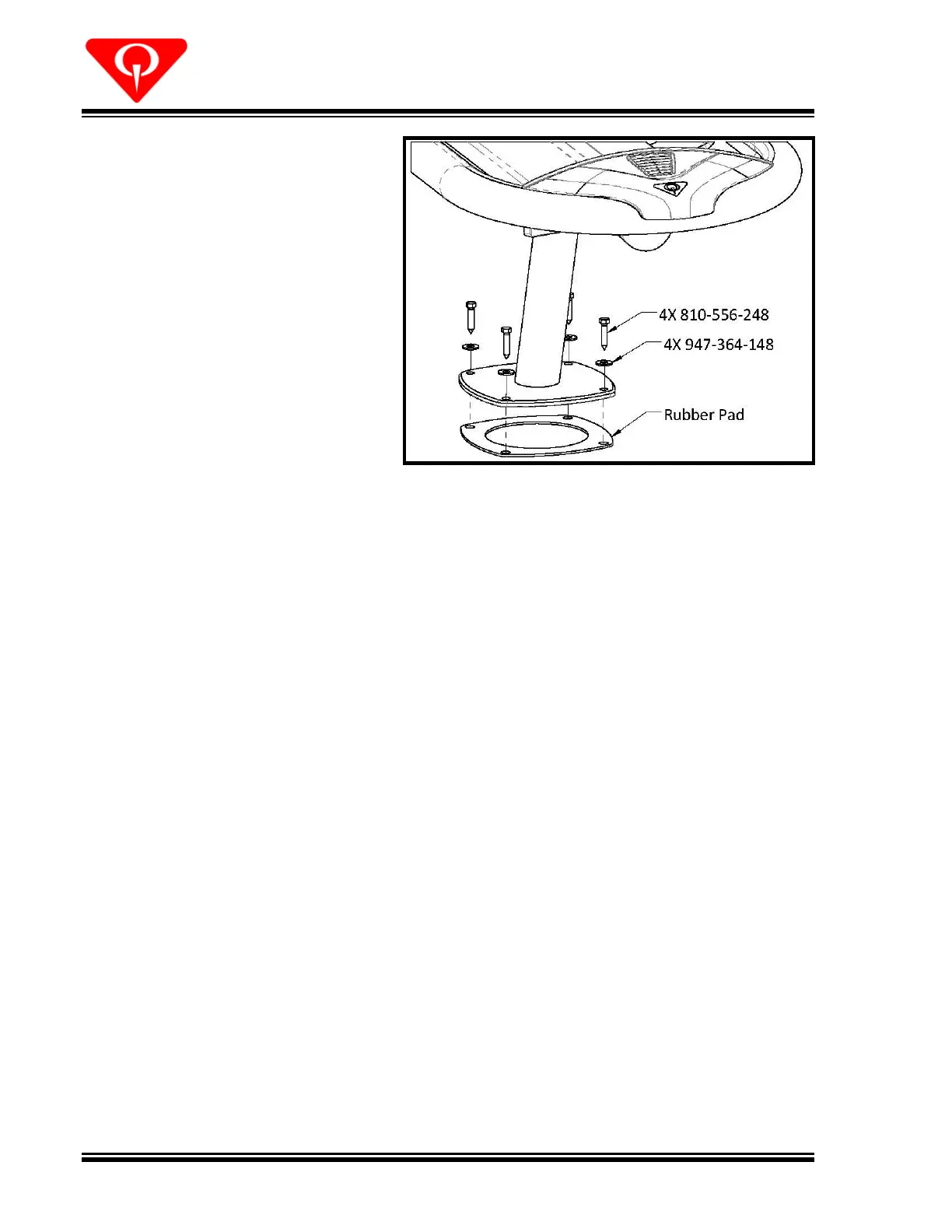

Figure 17, Rack Pedestal Installation
9. Vacuum out the holes.
10. Lift the end of the rack and slide the
foot pad under the pedestal base
and align edges evenly. The pad is
slightly smaller than the pedestal.
11. Secure the pedestal using the
supplied lag screws and washers.
12. Verify that the slope of the rack is
1/4" per foot [21mm per meter].
Remove or add shims as necessary.
13. Attach the hose to the blower using
the provided hose clamp.
