QubicaAMF Harmony User Manual

PARTS
Harmony Ball Return Manual – 400-254-022 Rev. Date 3/16 51

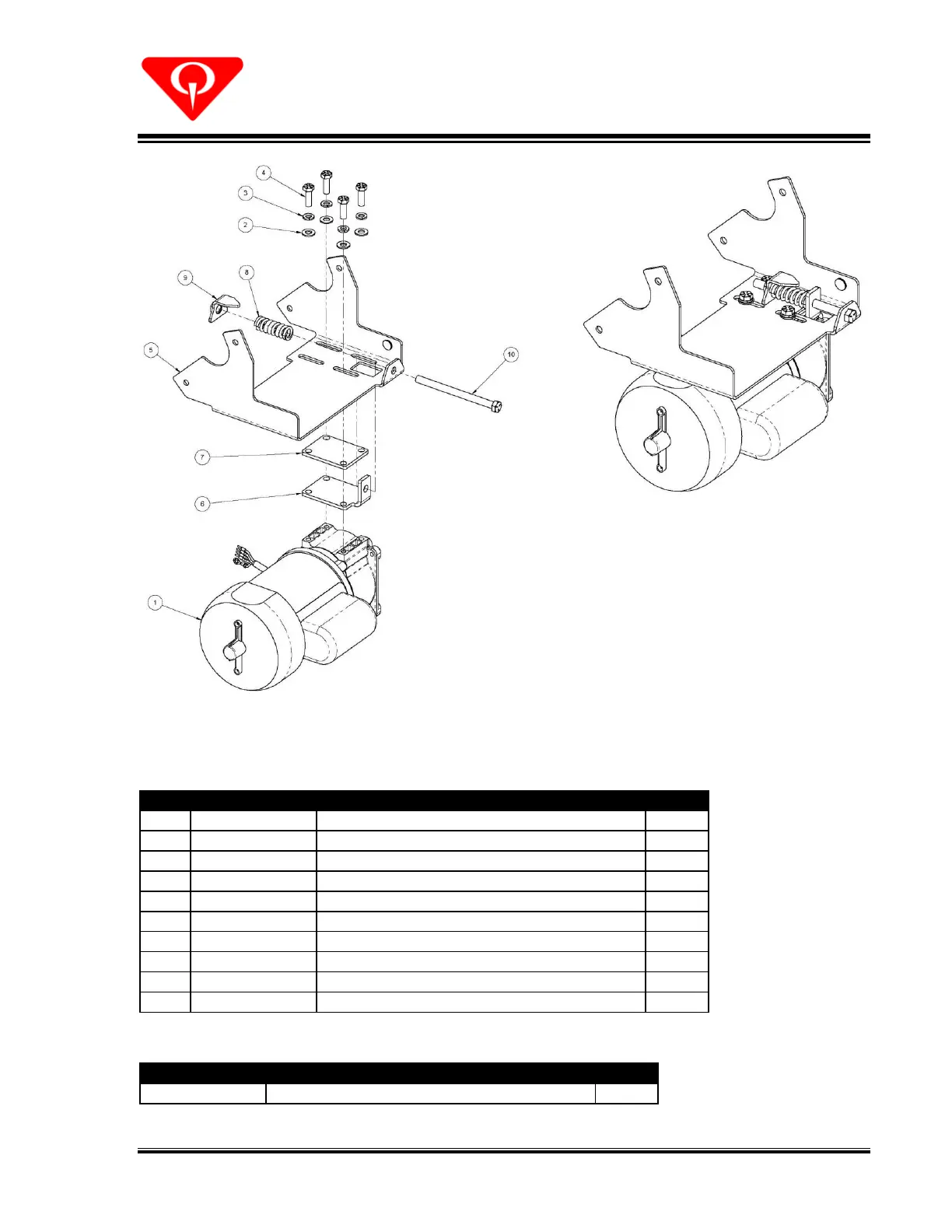

Motor & Bracket Assembly
Part No.
Description
Qty
1
254-001-096
Motor Assembly
1
2
948-722-111
FW 5/16 SAE BO
4
3
951-156-002
SWM 5/16 ANSI BO
4
4
809-857-165
HHCS 5/16-18 X 1.00 GR8 PB
4
5
254-001-316
HB Gearmotor Mount Assembly
1
6
254-001-308
HB Drive Tensioner
1
7
254-001-309
HB Drive Shim Plate
1
8
254-001-331
Harmony Motor Tensioner Spring
1
9
254-001-310
HB Drive Adjustable Arrow Weldment
1
10
802-265-801
HHCS 3/8-16 X 5.00 GR5 ZN FT
1
Hidden From View
Part No.
Description
Qty
254-001-395
Ball Lift Motor Capacitor
1
