PARTS
Harmony Ball Return Manual – 400-254-022 Rev. Date 3/16 52
* Apply thread locker (700-107-010) to threads of screw, tighten to 150 in-lbs. Thread locker must not get between clutch
sleeve and shaft.

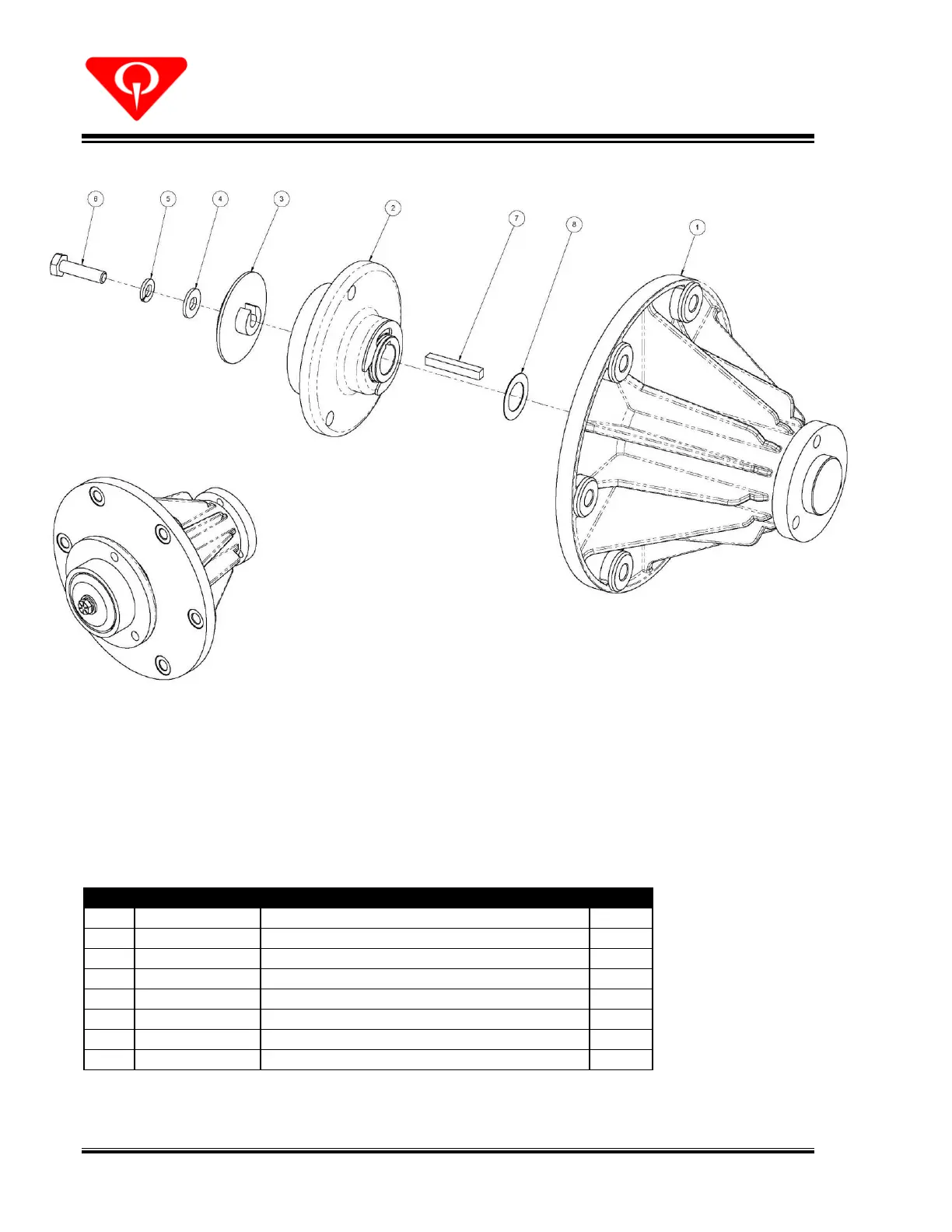

254-001-396, Lower Shaft Assembly
Part No.
Description
Qty
1
250-001-128
Plastic Bell Housing
1
2
250-001-008
Clutch Housing Assembly
1
3
250-001-231
Clutch Cover
1
4
948-753-101
FW 1/4 SAE BO
1
5
951-148-002
SWM 1/4 ANSI ZN
1
6
809-849-165
HHCS 1/4-20 X 1.00 GR8 BO
1
7
250-001-244
Shaft Key
1
8
948-680-160
FW 0.63 X 1.00 X 0.015 NS
1
