QubicaAMF Harmony User Manual

PARTS

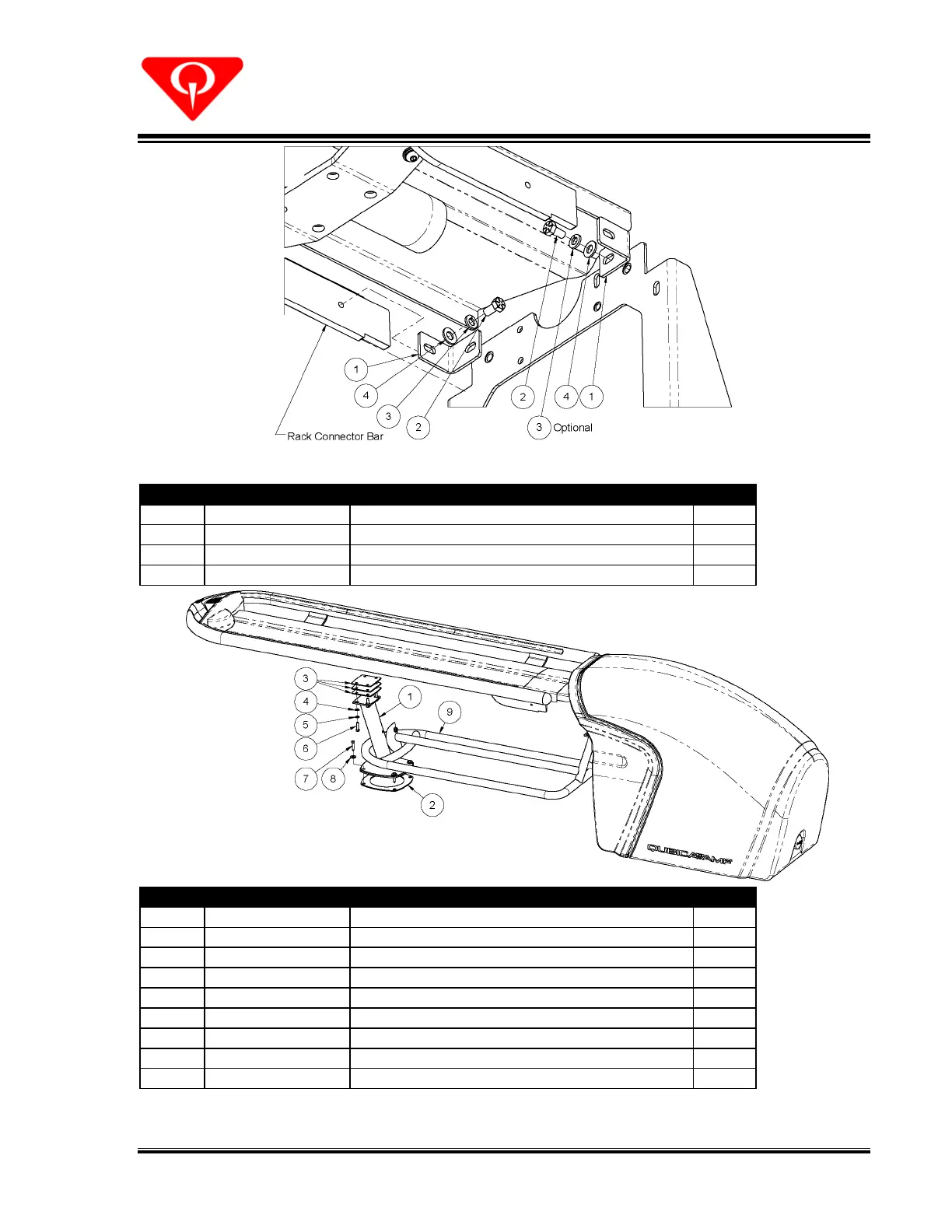

Harmony Ball Return Manual – 400-254-022 Rev. Date 3/16 57
254-001-045, Harmony Rack-Support Mount Kit
Part No.
Description
Qty
1
254-001-089
Ball Rack Tie Bracket
2
2
809-857-100
HHCS 5/16-18 X 0.63 GR8 BO
4
3
951-156-002
SWM 5/16 ANSI BO
2
4
948-722-111
FW 5/16 SAE BO
4
Part No.
Description
Qty
1
254-001-145
Ball Rack Pedestal
1
*2
254-001-118
Ball Return Rack Pedestal Foot Pad
1
3
254-001-112
Ball Return Rack Shim Plate
3
4
7050-034068-006
FW 5/16 SAE ZN
4
5
7060-031057-009
SWM 5/16 ANSI ZN
4
6
7010-003118-125
HHCS 5/16-18 X 1.25 GR5 ZN
4
7
810-556-248
5/16 X 1.50 SS Hex-Head Lag Screws
4
8
947-364-148
5/16 USS SS Flat Washers
4
9
612-300-262
Harmony Lower Ball Rack Kit
1
* 254-001-118 is a component of 254-001-145.
