QubicaAMF Harmony User Manual

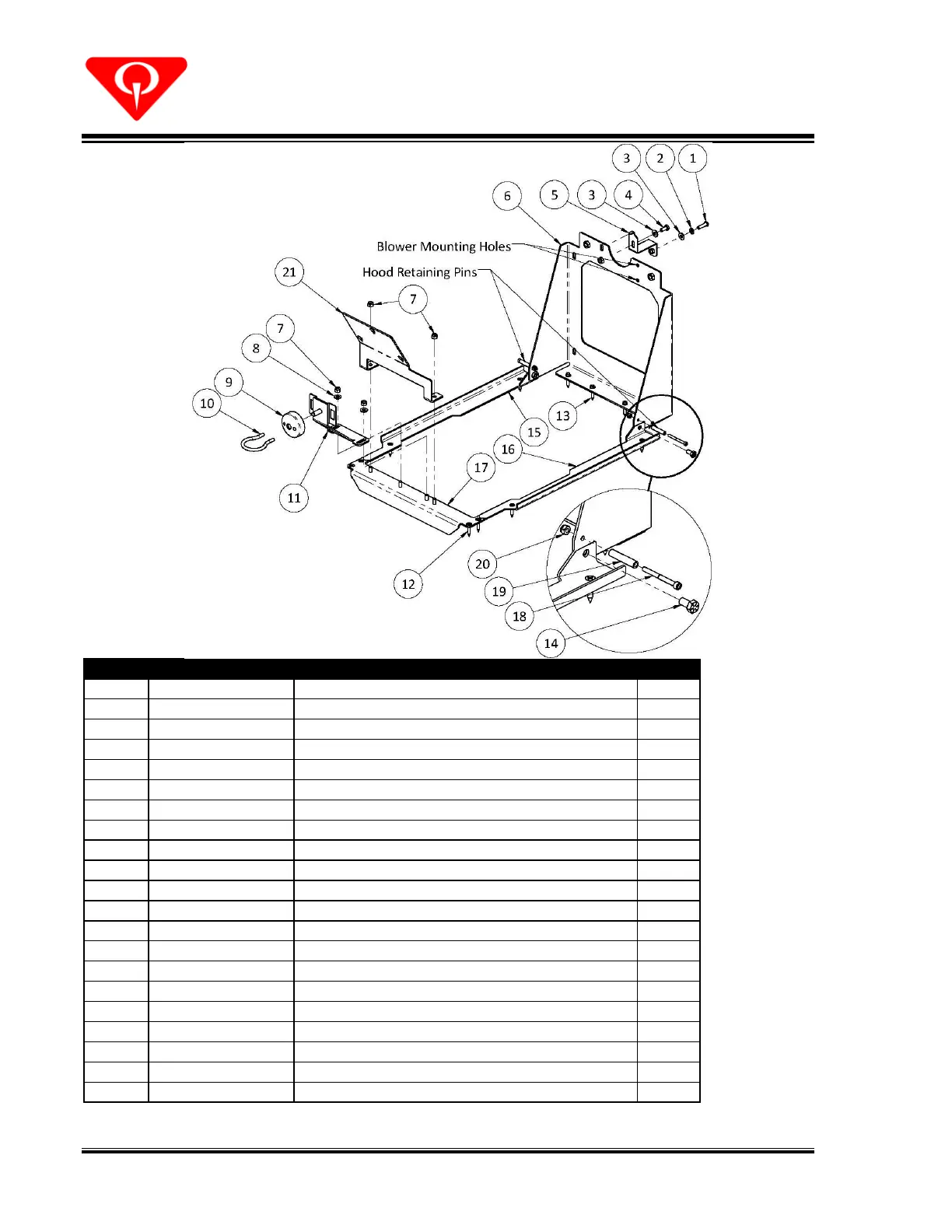

PARTS
Harmony Ball Return Manual – 400-254-022 Rev. Date 3/16 54
Part No.
Description
Qty
1
808-549-160
BHSCS 1/4-20 X 1.00 BO
1
2
951-148-008
SWM 1/4 ANSI BO
1
3
948-753-101
FW 1/4 SAE BO
2
4
809-849-100
HHCS 1/4-20 X 0.63 GR8 BO
1
5
254-001-026
Ball Return Access Panel Latch Assembly
1
6
254-001-186
Rack-Bezel Support Assembly
1
7
838-549-002
HLN 1/4-20 ZN NE
4
8
948-753-102
FW 1/4 SAE NS
2
9
254-001-213
Hood Latch Puck
1
10
254-001-206
Hood Latch Puck Key
1
11
254-001-201
Hood Latch Bracket Weldment
1
12
049-006-387
FHPTS 12 X 1.25 ZN TYA SP
8
13
821-142-202
HWFTS 12 X 1.25 ZN TYA
4
14
809-857-100
HHCS 5/16-18 X 0.63 GR8 BO
2
15
254-001-212
Even Bracket
1
16
254-001-211
Odd Bracket
1
17
254-001-210
Front Bracket Assembly
1
18
810-239-320
SHSCS 10-24 X 2.00 BO
2
19
722-501-094
SFR 0.19 X 0.31 X 1.50 ZN
2
20
838-939-002
HLN 10-24 ZN NM
2
21
254-001-171
Ball Lift Control Box Bracket
1
