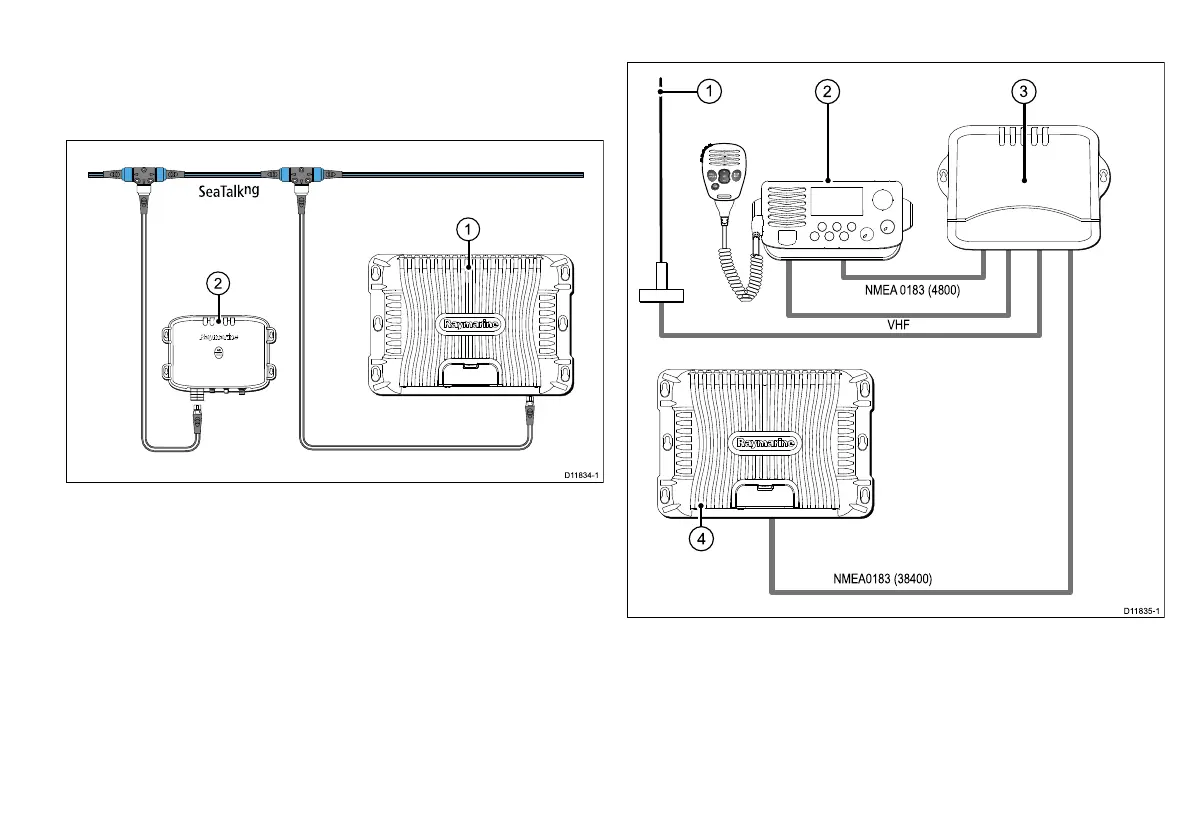

3.12AISconnection
AcompatibleAIScanbeconnectedusingSeaT alk
ng
orNMEA0183.
ConnectionusingSeaTalk
ng
D11834-1
SeaTalk
ng
AIS
500
1
2
1.GPMprocessorunit.
2.AIS500transceiver.
ConnectionusingNMEA0183
D118 35 -1
NMEA0183 (38400)
VHF
NMEA 0183 (4800)
1
2 3
4
1.VHFantenna.
2.VHFradio.
3.AISunit.
4.GPMprocessorunit.
Cablesandconnections73
