Electrical Component
s: 1st Stopper
SM 19
D454
Multi-Folding
Unit FD5000
D454
1.3.6

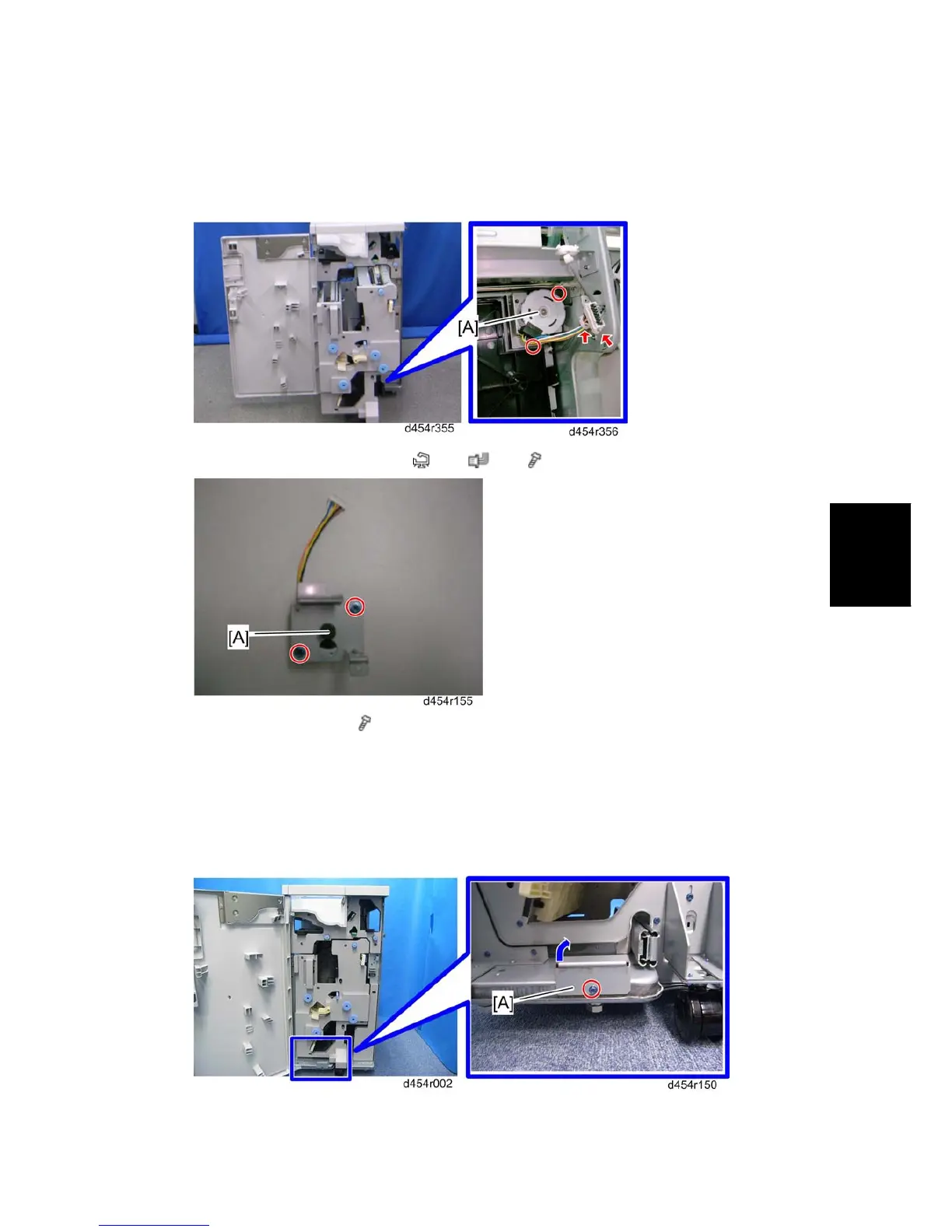

JOGGER FENCE MOTOR
1.
Pull out the folding unit drawer (
p.6).
2.
Jogger fence motor bracket [A] (
x
1,
x
1,
x
2)
3.
Jogger fence motor [A] (
x
2)
1.3.7 1ST
STOPPER
UNIT
1.
Folding unit cover (
p.3)
2.
Rear upper cover (
p.4)
3.
Rear lower cover (
p.4)
