Replacement and
Adjustment
D454 32
SM
1.5
ELECTRICAL COMPONENTS: 3RD STOPPER
1.5.1 3RD
STOPPER
UNIT
1.
Folding unit cover (
p.3)
2.
Rear upper cover (
p.4)
3.
Rear lower cover (
p.4)
4.
Drawer stopper [A] (
x
1)

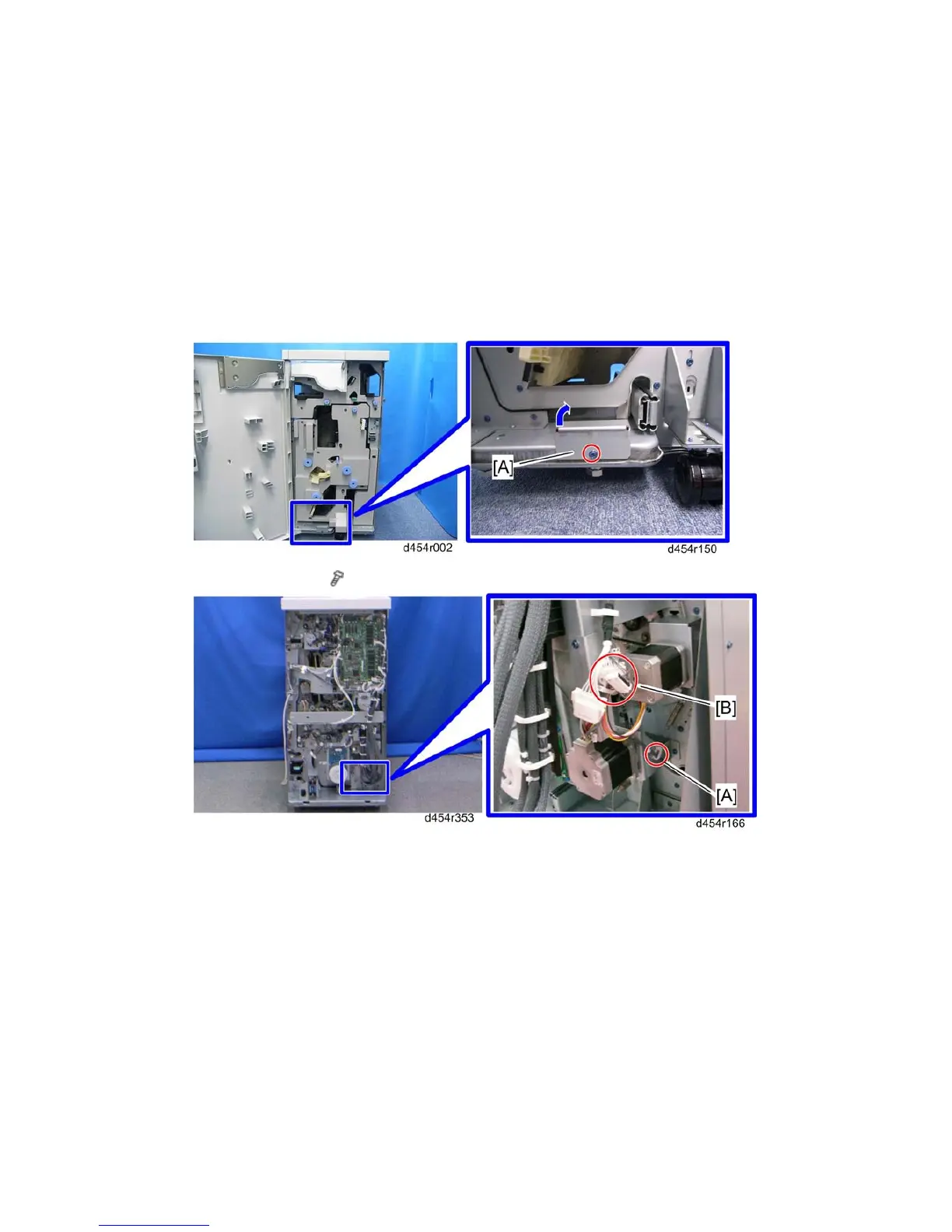

5.
Release the clamp [A].
6.
Disconnect two connectors [B].
7.
2nd fold motor bracket (
p.18 "2nd Fold Motor")
