USB2.0/SD Slot T
ype C (D464)
SM 2-103
D062/D063/D065/D066
Inst
allation

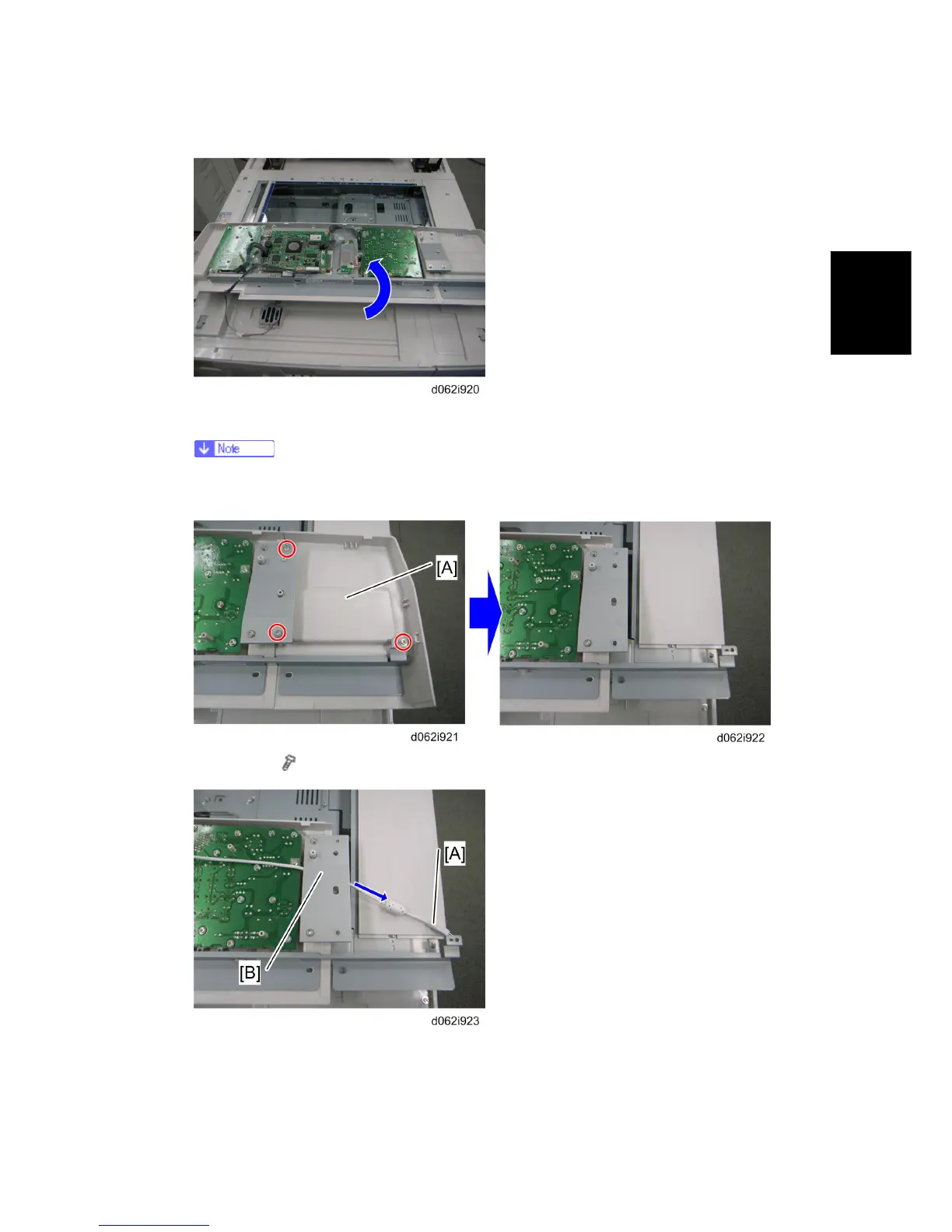

5.
T
urn the operation panel over
and put it on the machine.
Put some cloths or sheets of p
aper between the machine and the operation
panel, so as not to scratch the exposure glass.
6.
Clip tray [A] (
x
3)
7.
Pass the USB cable [A] under the bracket [B].
Rev
. 08/03/2009
